Installing the Upper Tower Mounting Hardware

For this task, you'll need the following components:

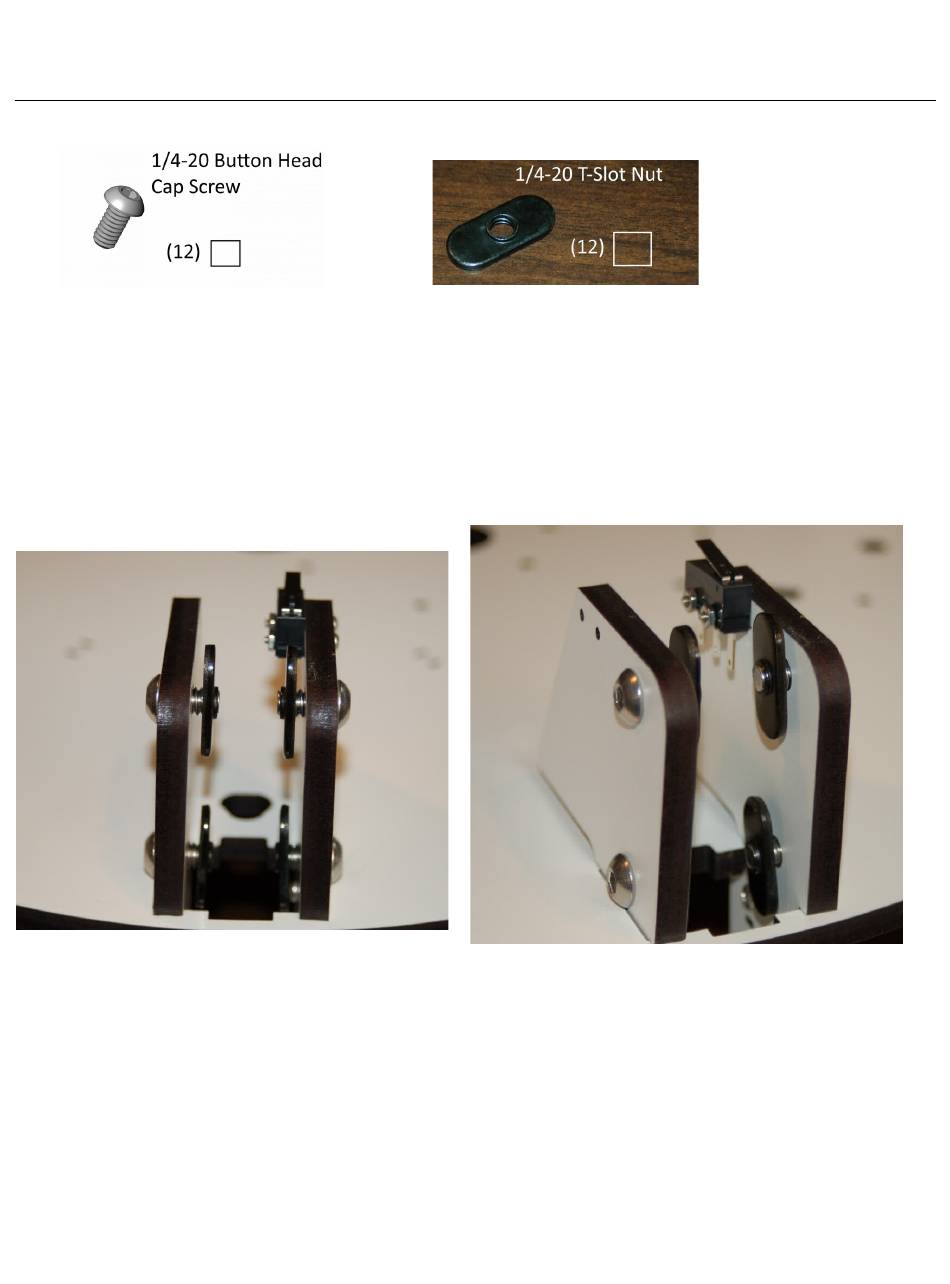

Install four ¼-20 button head screws and four T-Slot nut plates into each upper tower support as
shown in Fig. 7-17.
Thread the nut plates only a couple of turns – they need to be as loose as the lower ones were in
order to properly fit the towers.
Fig. 7-17: Hardware installed.
Rostock MAX v2 Assembly Guide
Fig. 7-18: Offset view.
