Rostock MAX v2 Assembly Guide

on the table with the same orientation as before. Lay the bearing into it and press into place.

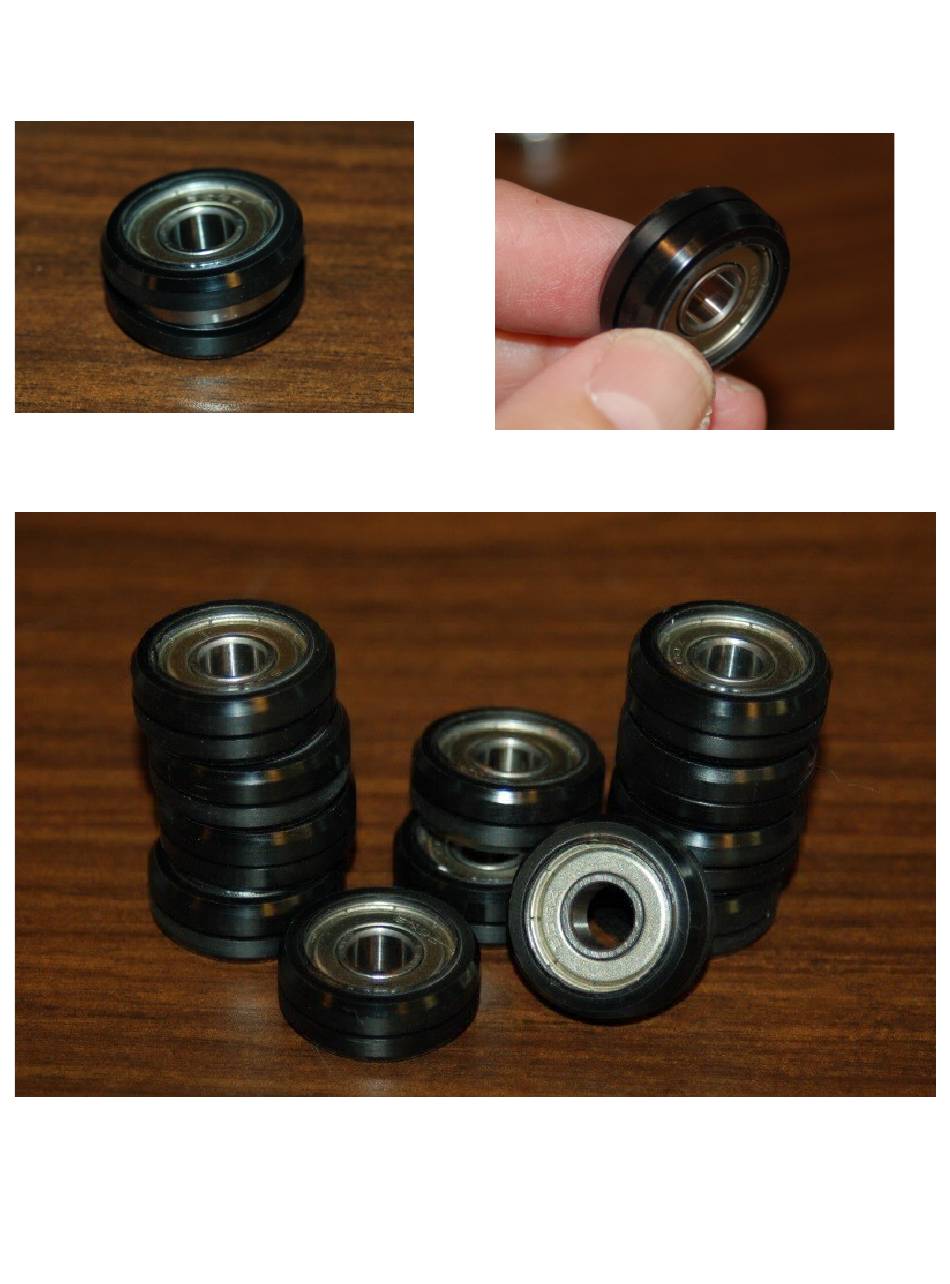

Fig. 8-3: Ready to press home!

Fig. 8-4: Assembled bearing.

Repeat this process for the remaining 11 608ZZ bearings.

Fig. 8-5: Finished bearing set.
