Preparing The Vertical Supports - SeeMeCNC Rostock MAX v2 Assembly Manual

Install two feet at each location indicated by the green rectangles in Fig. 4.3 on the previous
page.

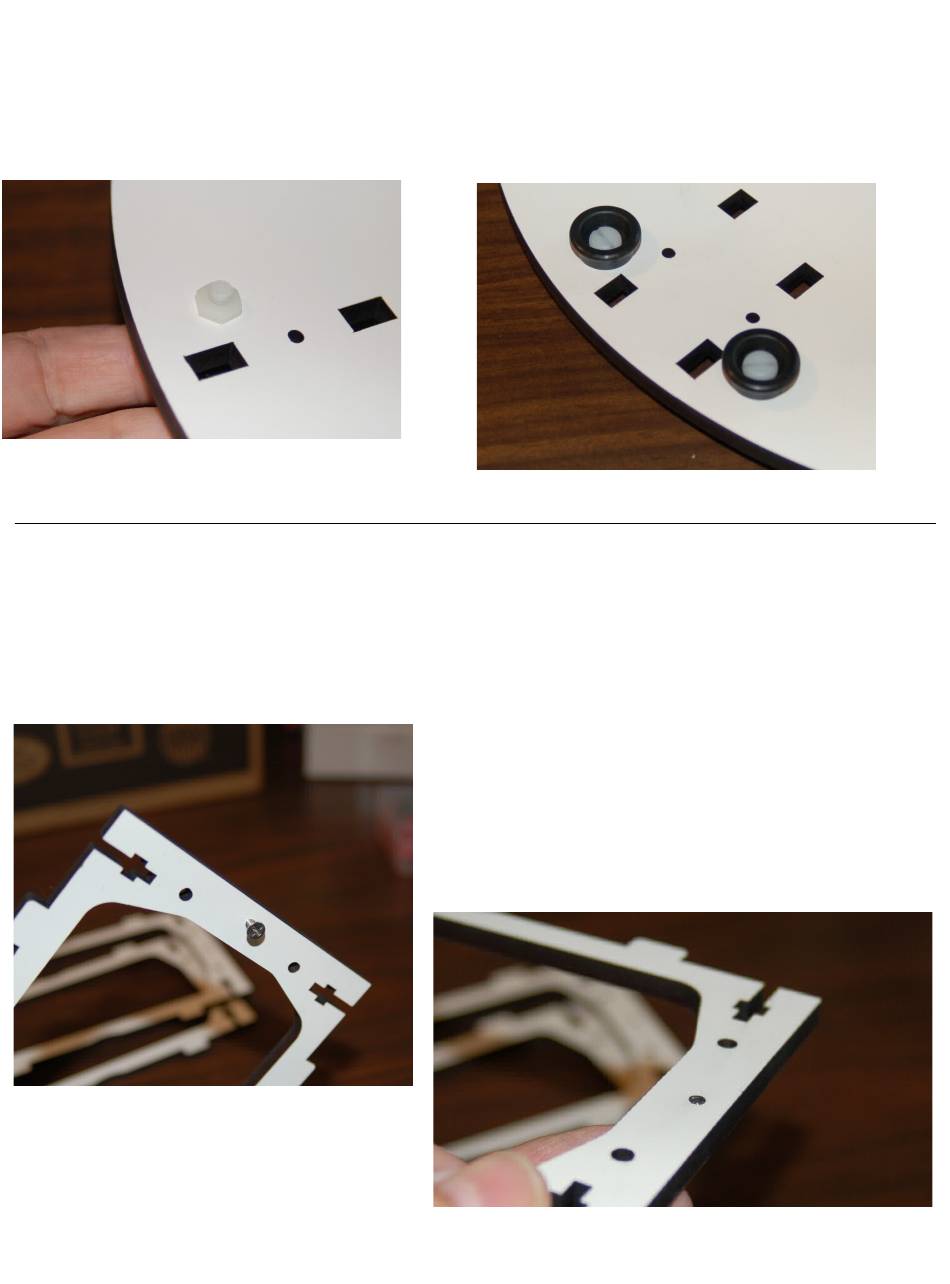

Fig. 4-4: Nut on foot screw.

Preparing the Vertical Supports

The vertical supports need to have four #6-32 Nylon lock nuts and two #6-32, 1/2" Stainless
Steel flat head screws installed in each one. The side panel retaining holes will also need to be
threaded.
The 1/2" screws are used to retain the Acrylic side panels that we'll be installing toward the end
of the build. Let's get those installed first.
Fig. 4-6: Retaining screw installed.
Rostock MAX v2 Assembly Guide
Fig. 4-5: Two feet installed.
have one 1/2" flat head screw installed in each end
as shown on the left. You don't want to install the
screw all the way – just drive it enough so that the
bottom face of the screw is flush with the opposite
face of the vertical support as shown below.
Fig. 4-7: Correct screw depth.
Each of the three vertical supports should
42
