Installing The Feet

The feet on the Rostock MAX v2 are made from a hard plastic "foot" that is held in place by a
nylon screw & bolt and is covered with a soft rubber "shoe".
The feet are installed on the bottom of the Base Bottom Plate. The design of the Base Bottom
Plate causes it to have asymmetric features – this means that if you were to bisect the plate down the
center, the left & right "halves" wouldn't be a mirror of one another. This means that we've got to make
sure that we install the feet on the right side of the plate. If we don't, they'll be facing "up" and won't
be much good for holding the machine off the table. :)
The top surface is easily identified. Lay the Base Bottom Plate flat with the large square
opening facing you. When the plate has the right "face" up, the two notches below the rectangle will
be on the left and the single notch will be on the right. See below for the correct orientation. I'd advise
that you write "Top Face" on yours as I've done here.
Grab one of the black foot bases and a nylon screw and drop the screw into the foot as shown.
Fig. 4-2: Screw orientation.
Rostock MAX v2 Assembly Guide

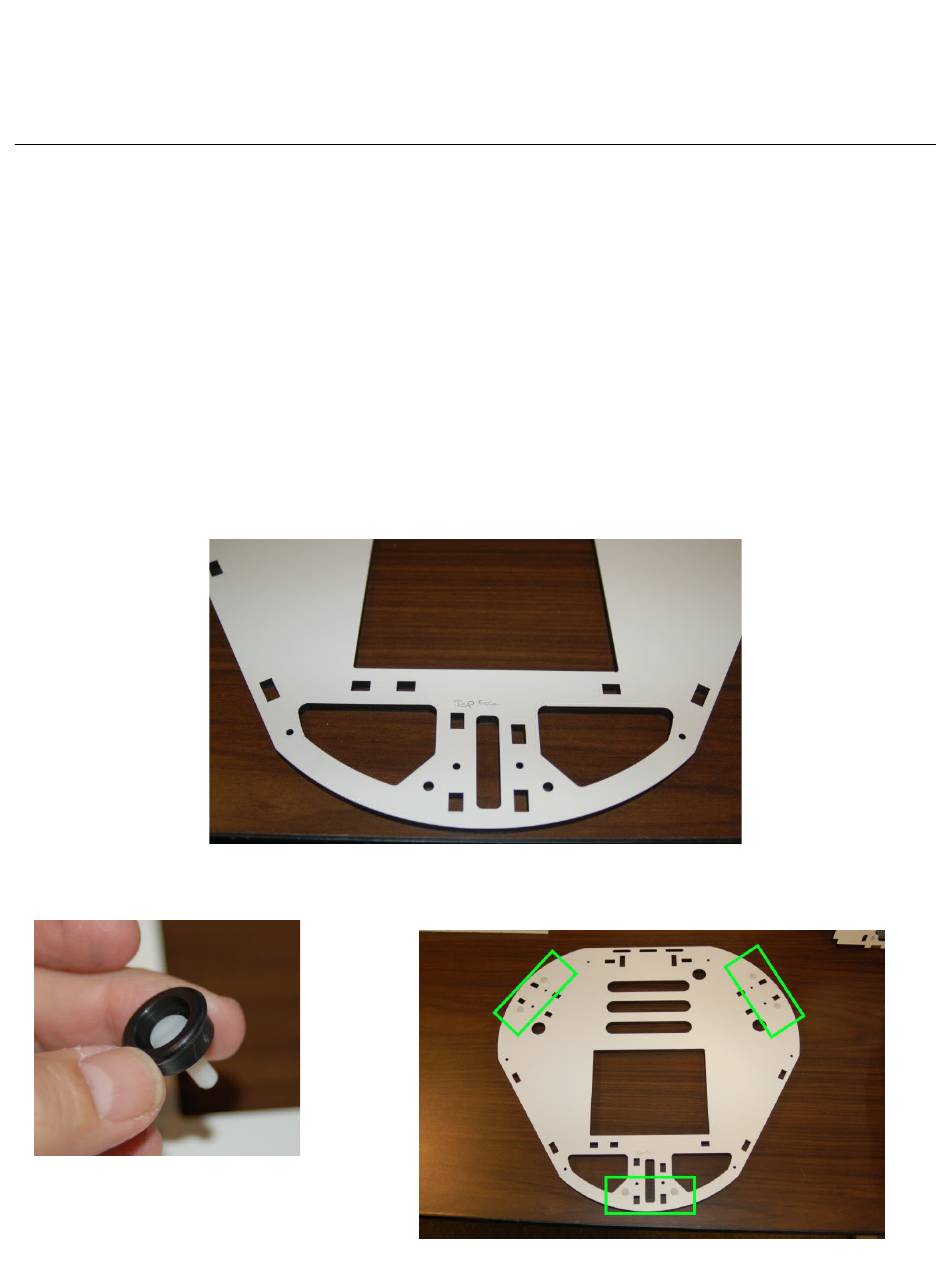

Fig. 4-1: Getting the base plate face up.
Fig. 4-3: Foot locations.
