Installing the Upper Tower Mounts

The upper tower mounts don't fit in the tower sockets without being a bit clever in the
installation process.
Take two upper tower mounts (make sure the one on your left has a tower depth stop screw
installed!) and set them into the tower socket as shown in Fig. 7-3.
Now you want to adjust the
mount on the right side so it's at the same
angle as the one shown in Fig. 7-4 below.
Fig. 7-4: Fitting the tower supports
Rostock MAX v2 Assembly Guide

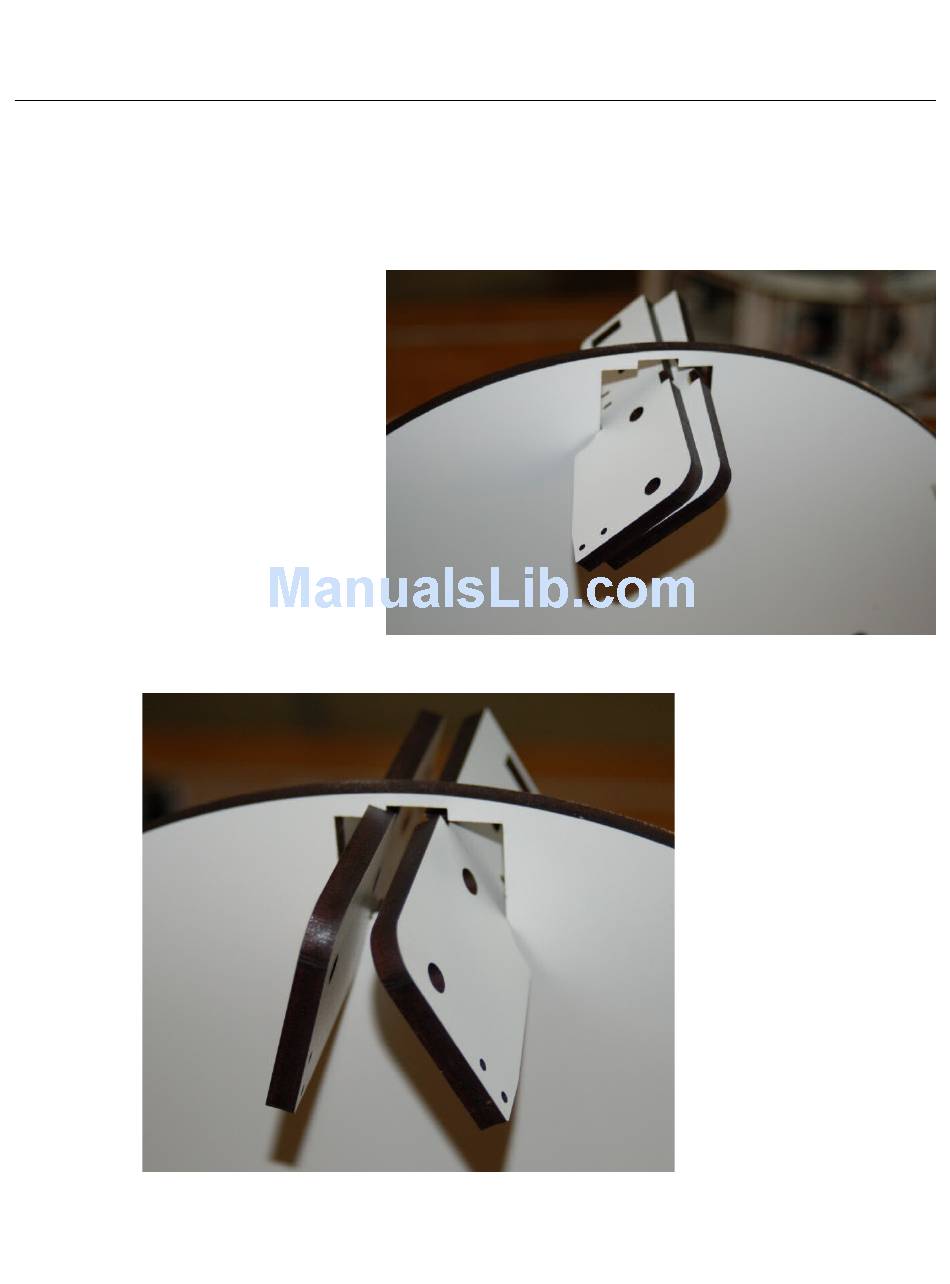

Fig. 7-3: Inserting the upper tower supports in the top plate.
