Rostock MAX v2 Assembly Guide
Slide the EZStruder bracket support brace on to the EZStruder bracket as shown.

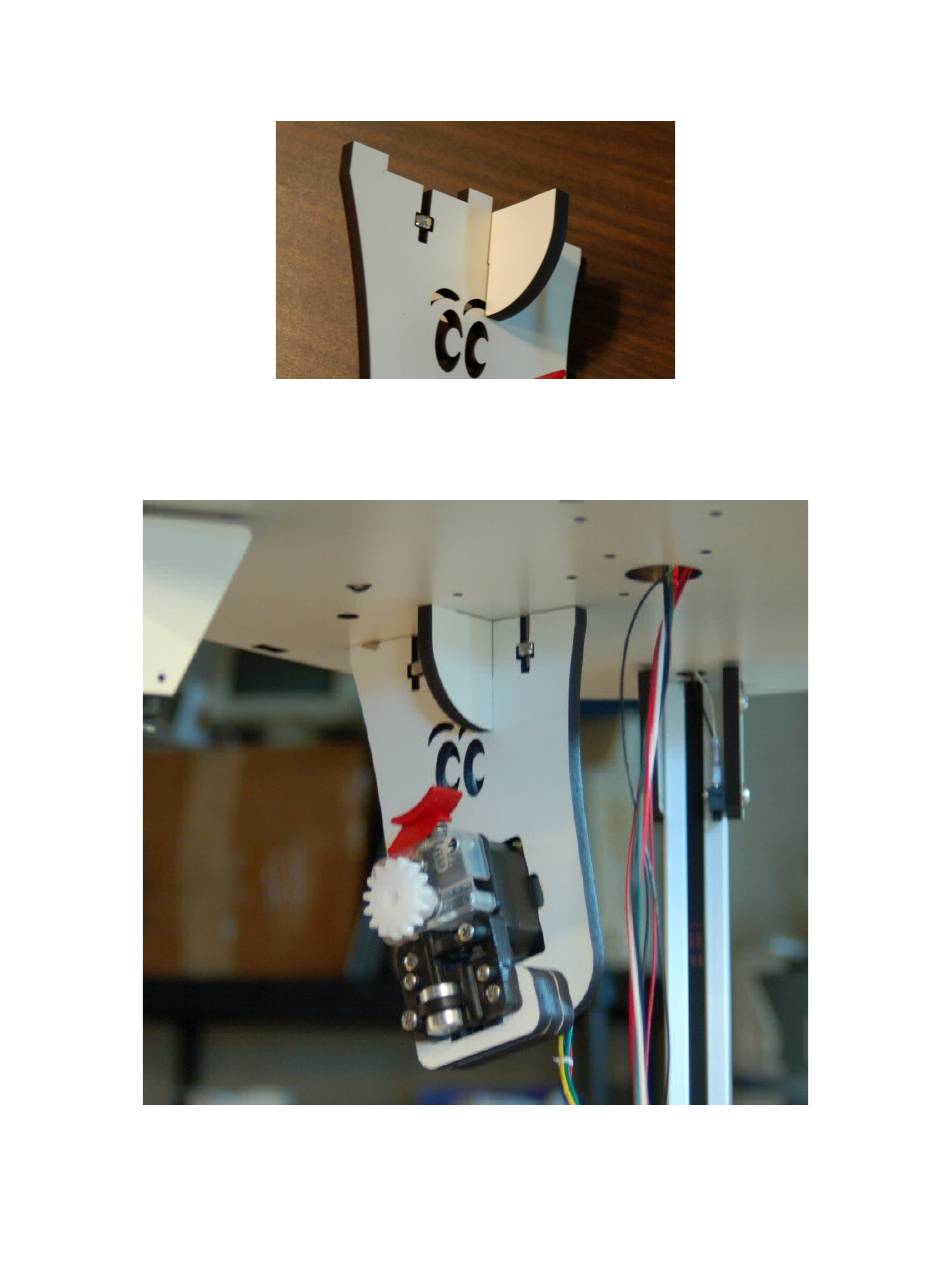

Fig. 10-19: Support brace installed.
Now set the EZStruder bracket into the mounting slots in the top of the printer. It may be easier
to do this if you lay the machine down horizontally.
Fig. 10-20: EZStruder mount ready for screws.
