Rostock MAX v2 Assembly Guide
Attaching the delta arms to the effector with the Cheapskates at the bottom will cause the
platform to be raised off the bed as shown below. This will make the next task a lot easier.

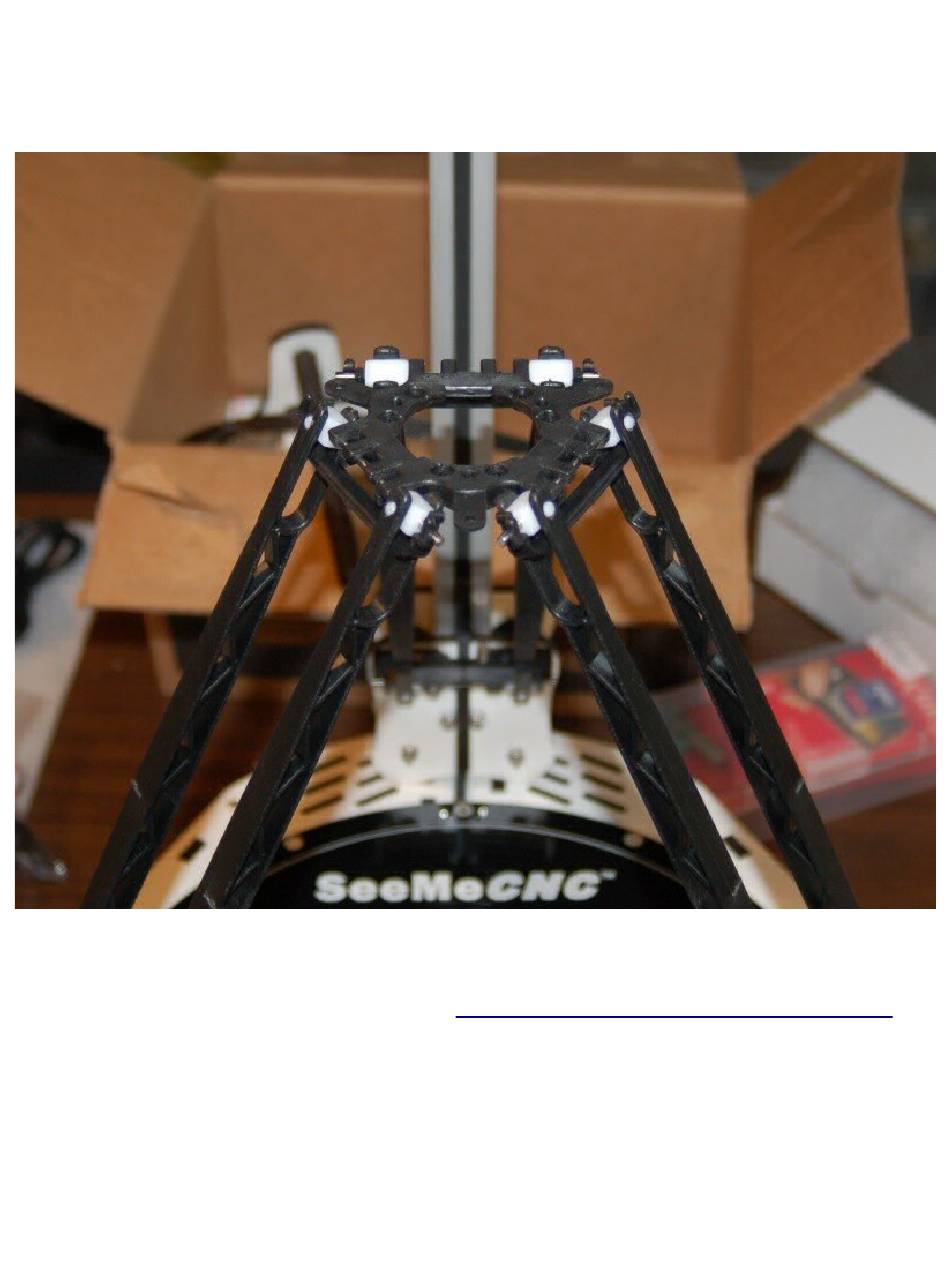

Fig. 12-17: Platform ready for the hot end!
Checkpoint Video #16:
http://youtu.be/6GPLyV_8CZI
165
