field. It may be less than 1.75mm, but shouldn't be any more than 1.8mm. If you have any
measurements of 1.8mm or greater on your filament, it may bind in the hot end. In my case, the
filament average was 1.72, so that's what I entered.

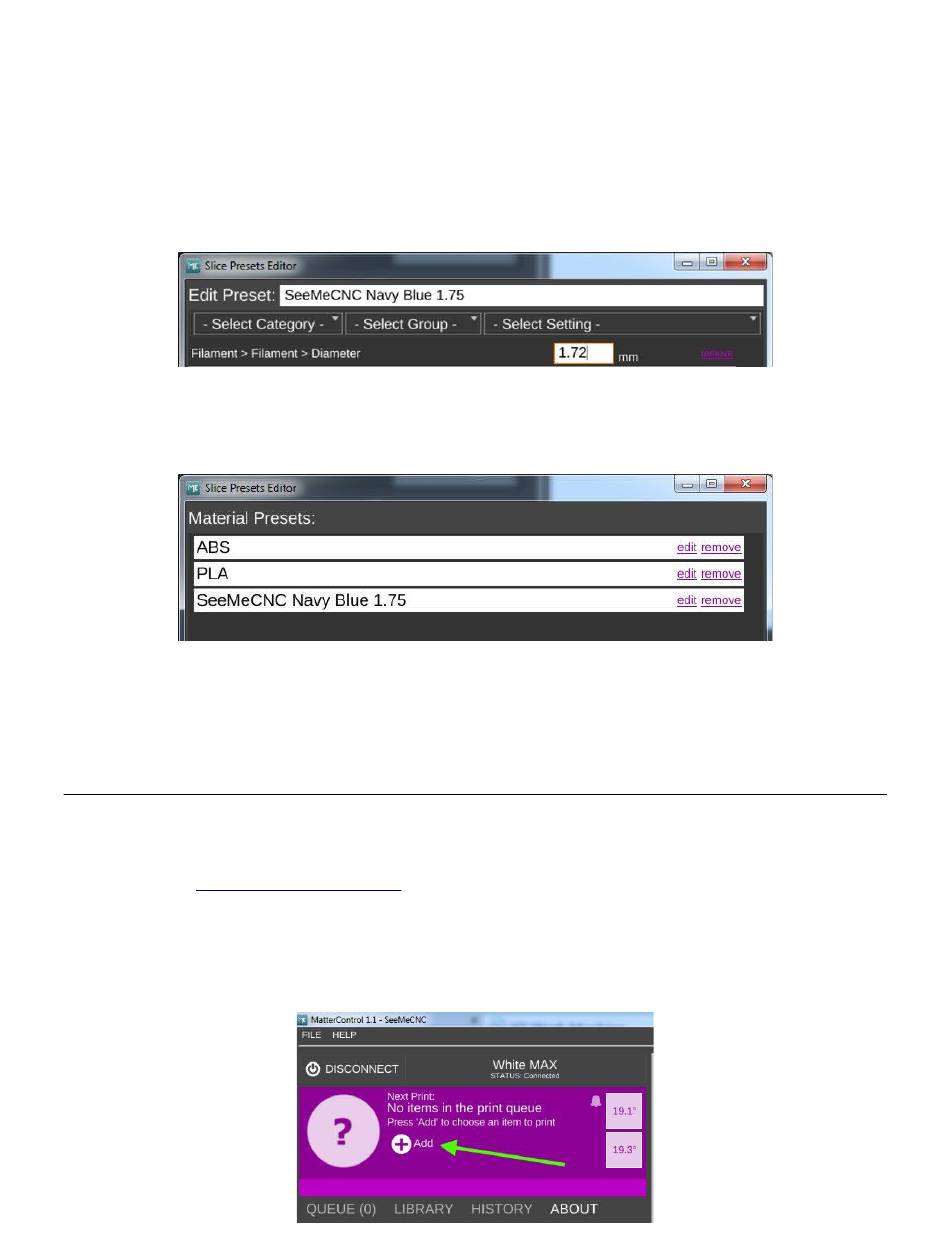

Fig. 20-10: Updated filament diameter.
After you've updated the filament diameter, click Save to commit your changes. When the
editor window is dismissed, you'll see your new material preset in the list!
Fig. 20-11: New material preset!
Click Close to dismiss the Presets Editor and we'll move on to the next step, printing your first
part!

Printing The PEEK Fan Shroud

If you downloaded the MatterControl presets file, you can skip downloading the file from
Repables.
Go here: http://repables.com/r/140/
finished, unzip the file. This is the STL file that MatterSlice will process and turn into your first print!
When you've got the file downloaded, you can load it into MatterControl by clicking on the
"Add" button and selecting the STL file you want.
Rostock MAX v2 Assembly Guide
and click the "Download" link. When the download is
Fig. 20-12: Loading an STL file.
