Wiring The Ezstruder Stepper Motor - SeeMeCNC Rostock MAX v2 Assembly Manual

Insert two #6-32, 1" pan head screws into the locations shown. They should fit into the nuts in
the EZStruder bracket perfectly. Tighten them down and we'll move on to wiring up the stepper motor!

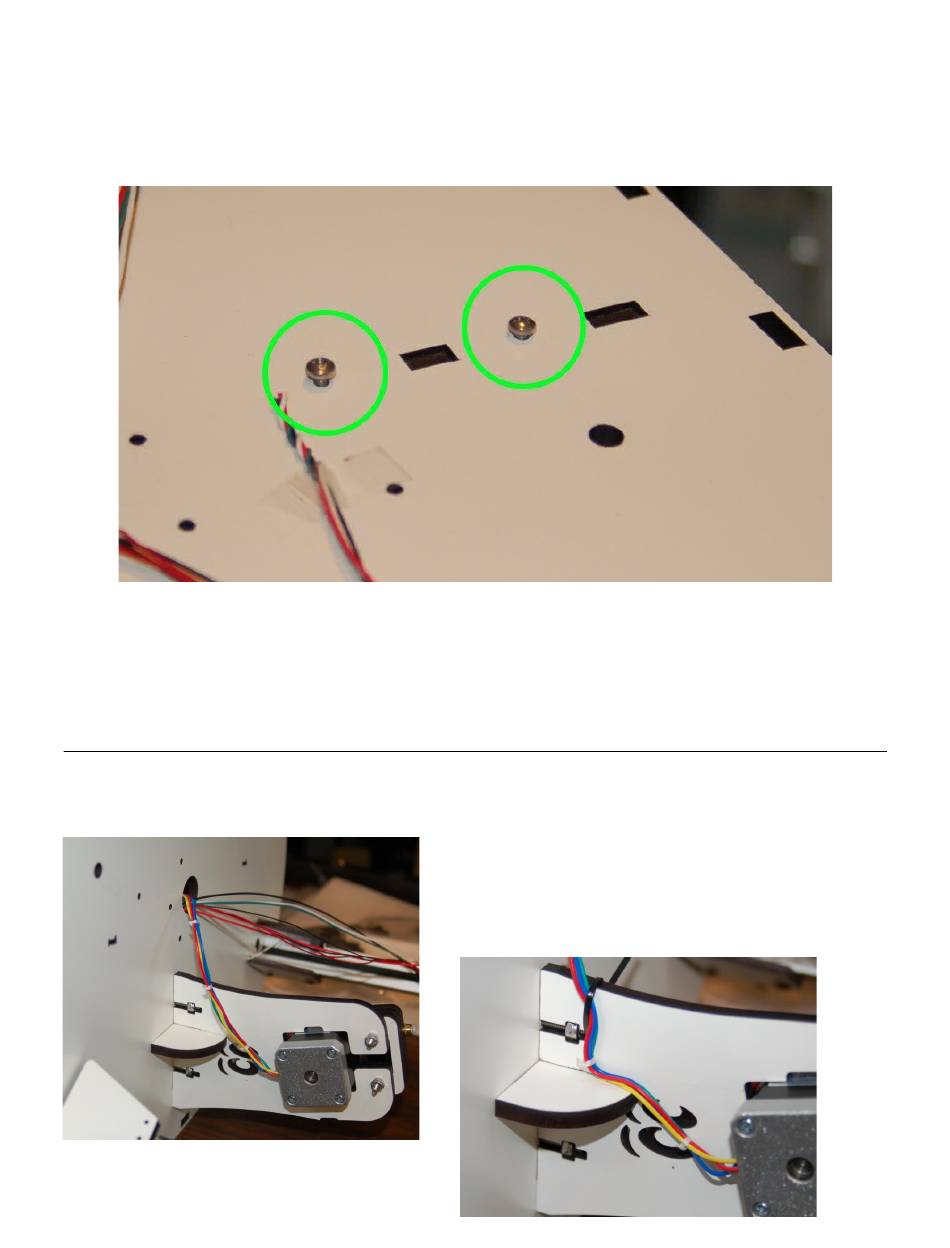

Fig. 10-21: Bracket screw holes.

Wiring the EZStruder Stepper Motor

Route the stepper motor wires through the center hole in the top plate. I've laid the machine
horizontally to make working on the top end easier.
Fig. 10-22: Routing the stepper wires.
Rostock MAX v2 Assembly Guide
bind the wiring of the stepper motor to the
EZStruder bracket as shown below.
Fig. 10-23: Wires tied in place.
Now you'll want to use a short wire tie to
