SeeMeCNC Rostock MAX v2 Assembly Manual page 255

from the wiring loom as shown below. Take care to
pinch the power wires between the top of the fan shroud and the
mount!
Don't forget to cover your soldered joints

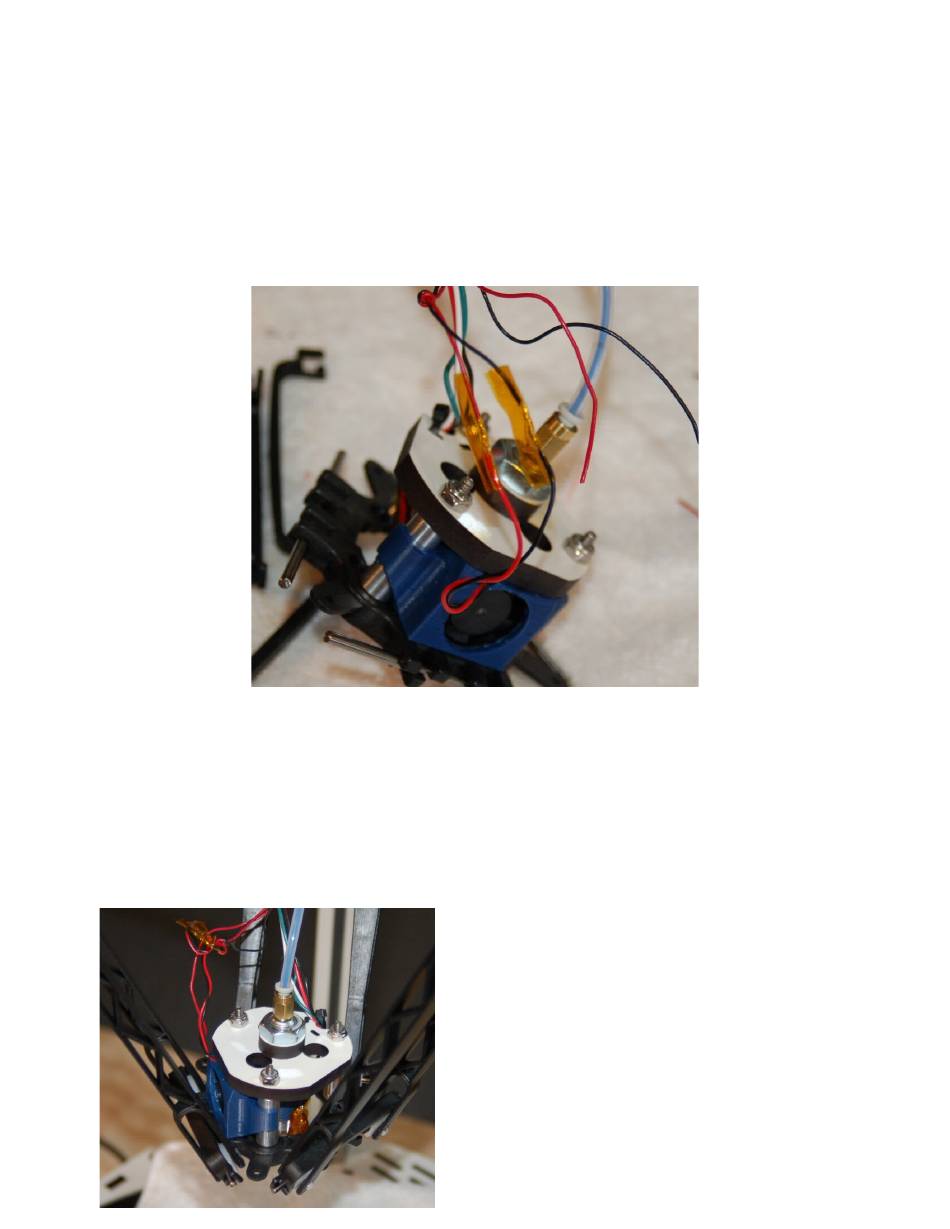

Fig. 20-30: All wired up and ready to be...cool.
Fig. 20-31: All back together.
Rostock MAX v2 Assembly Guide
Now re-install the arms on to the effector platform.
Don't forget to make sure that the u-joints are installed
with the ejector pin marks facing away from the effector
platform!
ensure that you don't accidentally
bottom surface of the hot end
with Kapton!
The PEEK fan shroud is "virtually" linked
255
