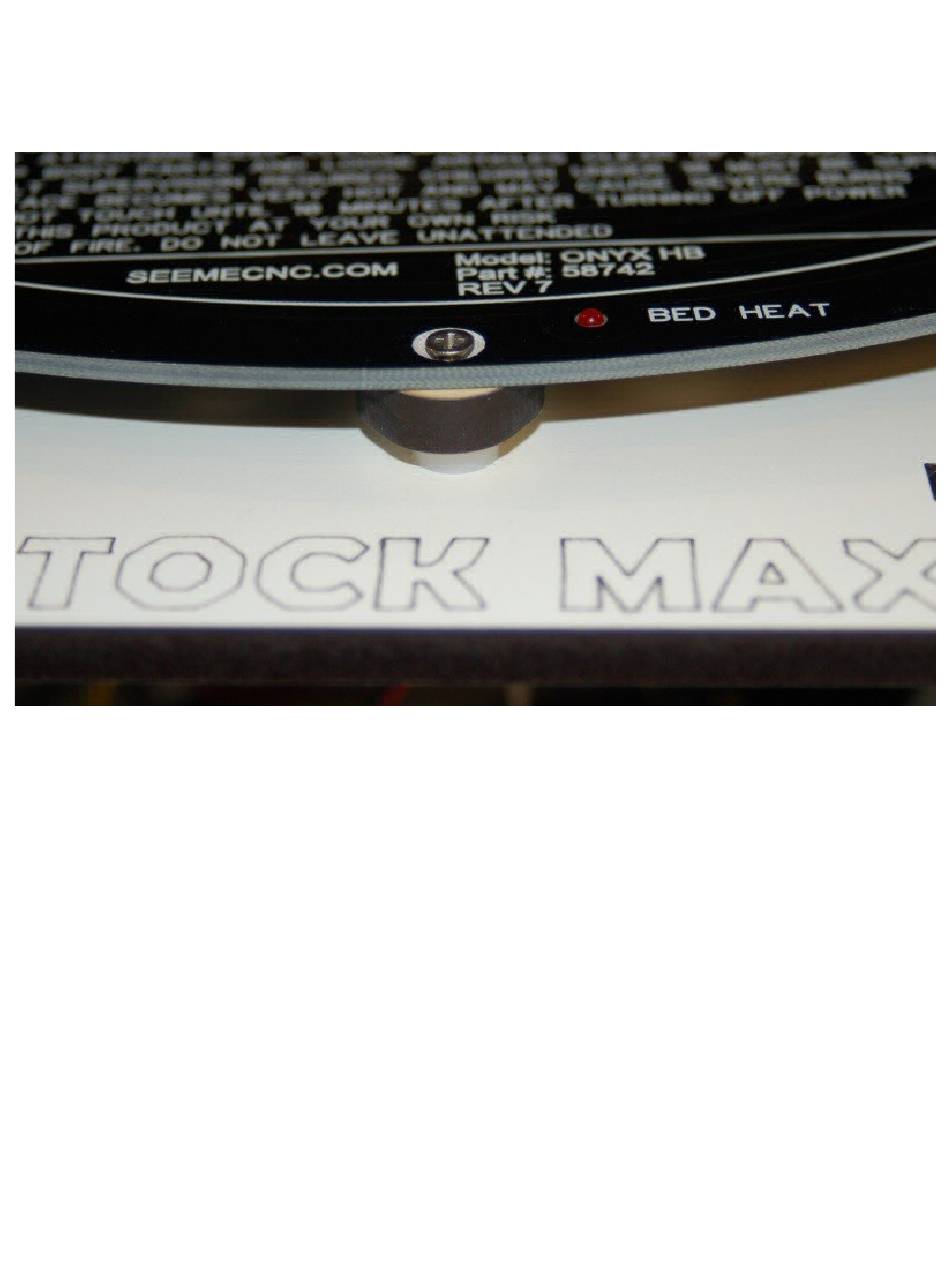

Now set the Onyx & mount down so the screw will go through the #1 mounting hole as shown
below.
Fig. 5-31: First screw in!
Tighten the screw a small amount. A half or three-quarter turn should do it. We just want it to
grab enough threads to keep it from popping out while we line up the other five screws.
Rostock MAX v2 Assembly Guide
77
