Rostock MAX v2 Assembly Guide
Now you can set the Y axis tower in to place. Unlike the Z and X axes tower wiring, the Y axis
tower wires exit to the left as shown.

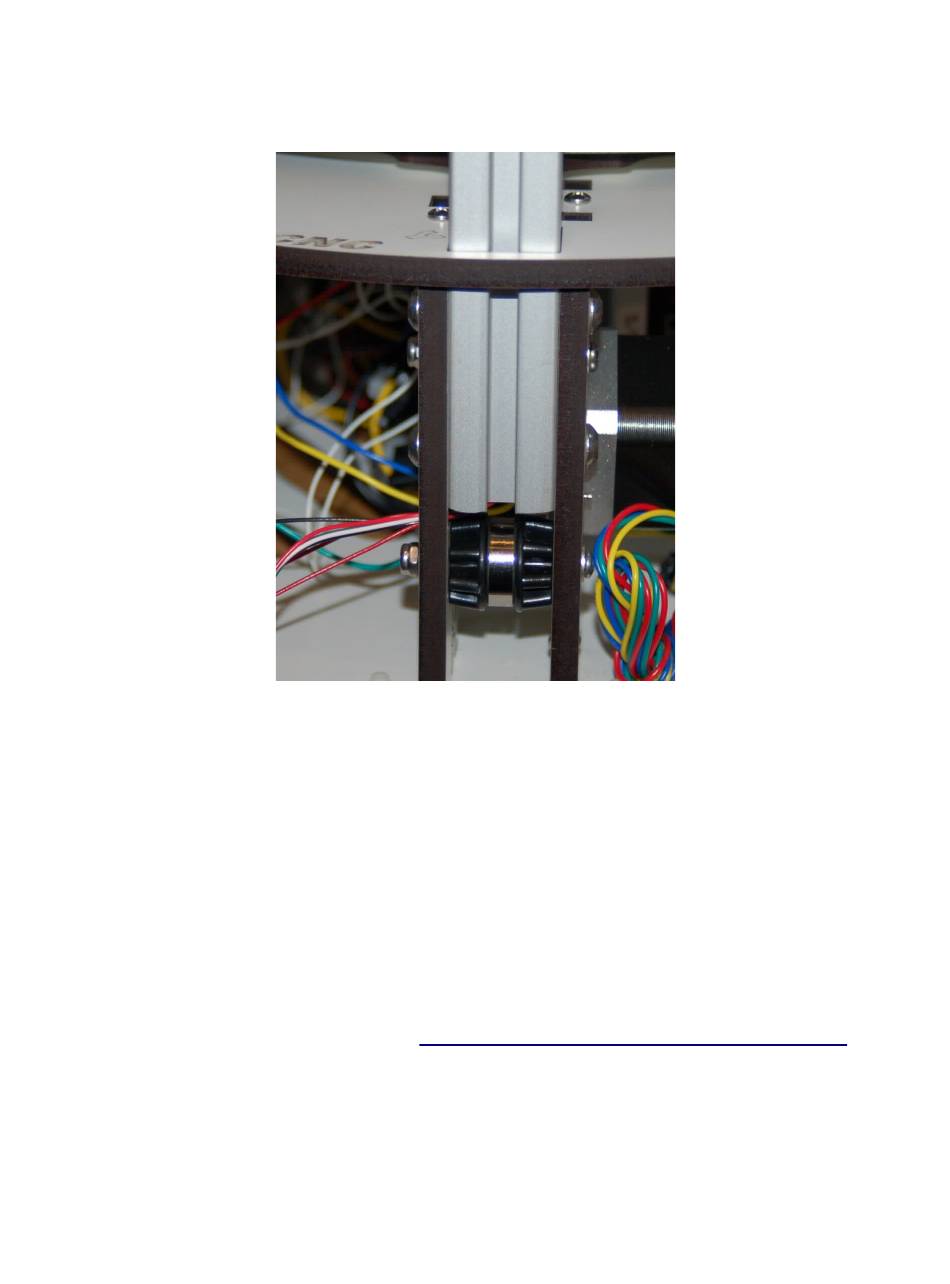

Fig. 6-21: Y axis wiring route.
Checkpoint Video #6:
http://youtu.be/qbtiOqR6aZQ
90
