Attaching the Top Plate

Installing the top plate is very simple, but it does take a little patience. Make sure that you've
got the machine base turned so that the Z axis is farthest away from you and the X & Y axes are on
your left & right, respectively. Rotate the top plate to match, as shown below.

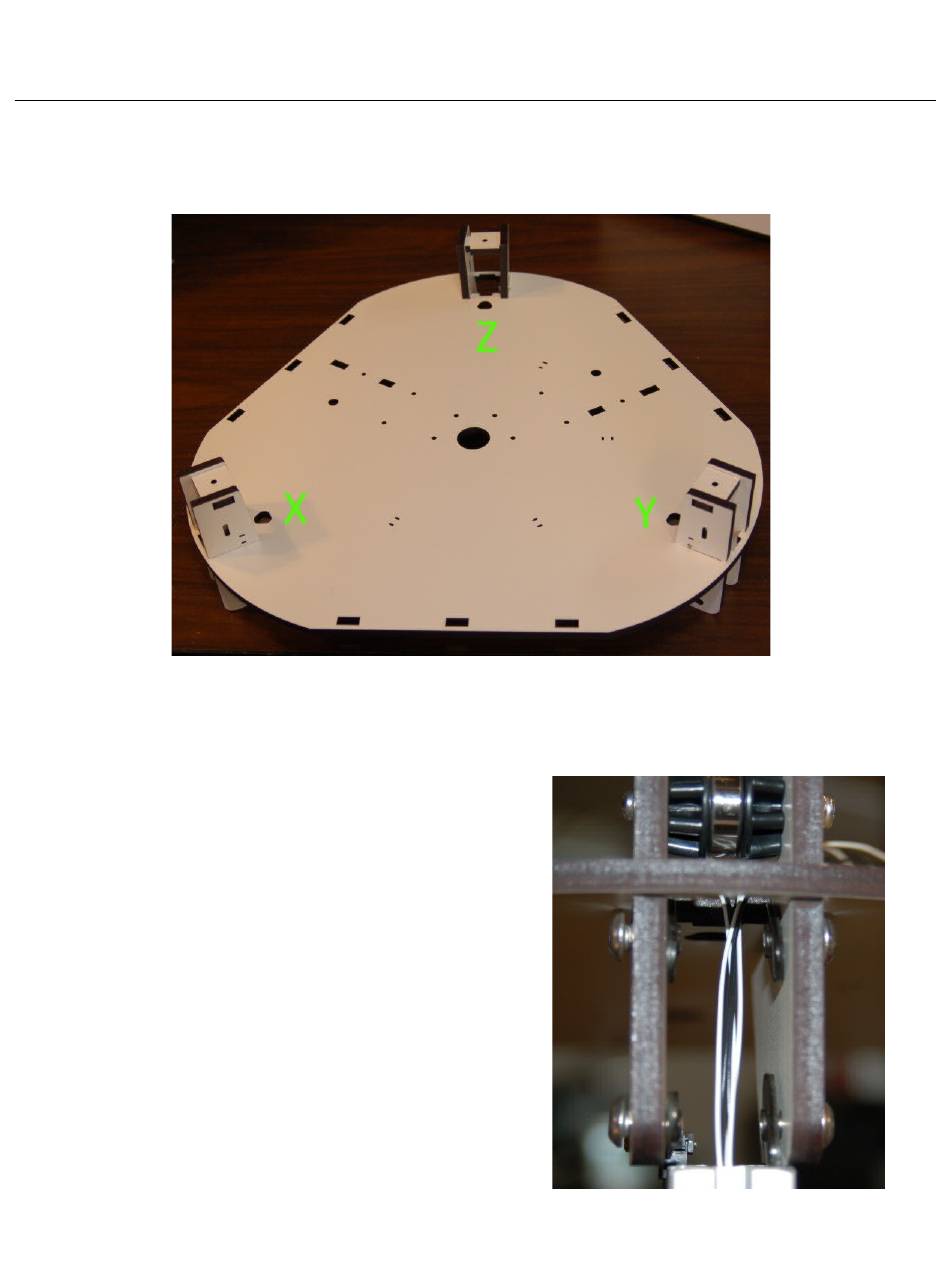

Fig. 7-23: Top plate ready for installation.
In order to give yourself room to route the wires through the tower openings in the top plate,
you'll want to rest the plate on top of the towers. We'll start the installation with the X axis and the end
stop wires.
Carefully route the end stop wires through the
opening under the idler bearing as shown on the right.
Once you've got them run, move on to the Y axis.
Rostock MAX v2 Assembly Guide
Fig. 7-24: Setting the X axis.
