Rostock MAX v2 Assembly Guide

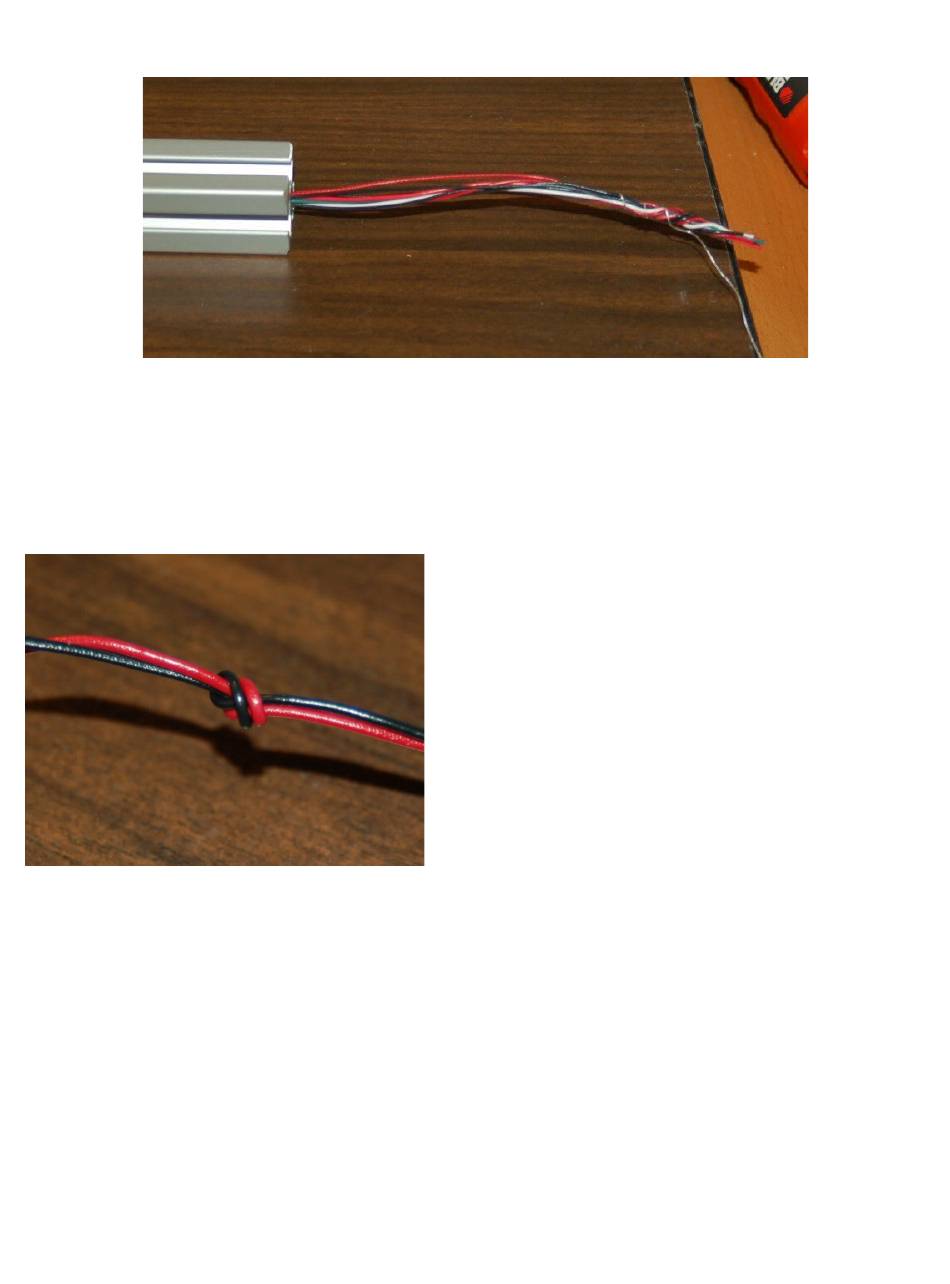

Fig. 6-12: Success!
You now need to identify the red & black wire pairs that were routed along with the other wires.
Use the same method as used on the end stops and tie a knot in one pair of black & red wires at both
ends. This knotted pair will be used for the PEEK section fan, the un-knotted pair will be used for the
layer fan.
Fig. 6-13: PEEK fan wires knotted.
86
