Rostock MAX v2 Assembly Guide

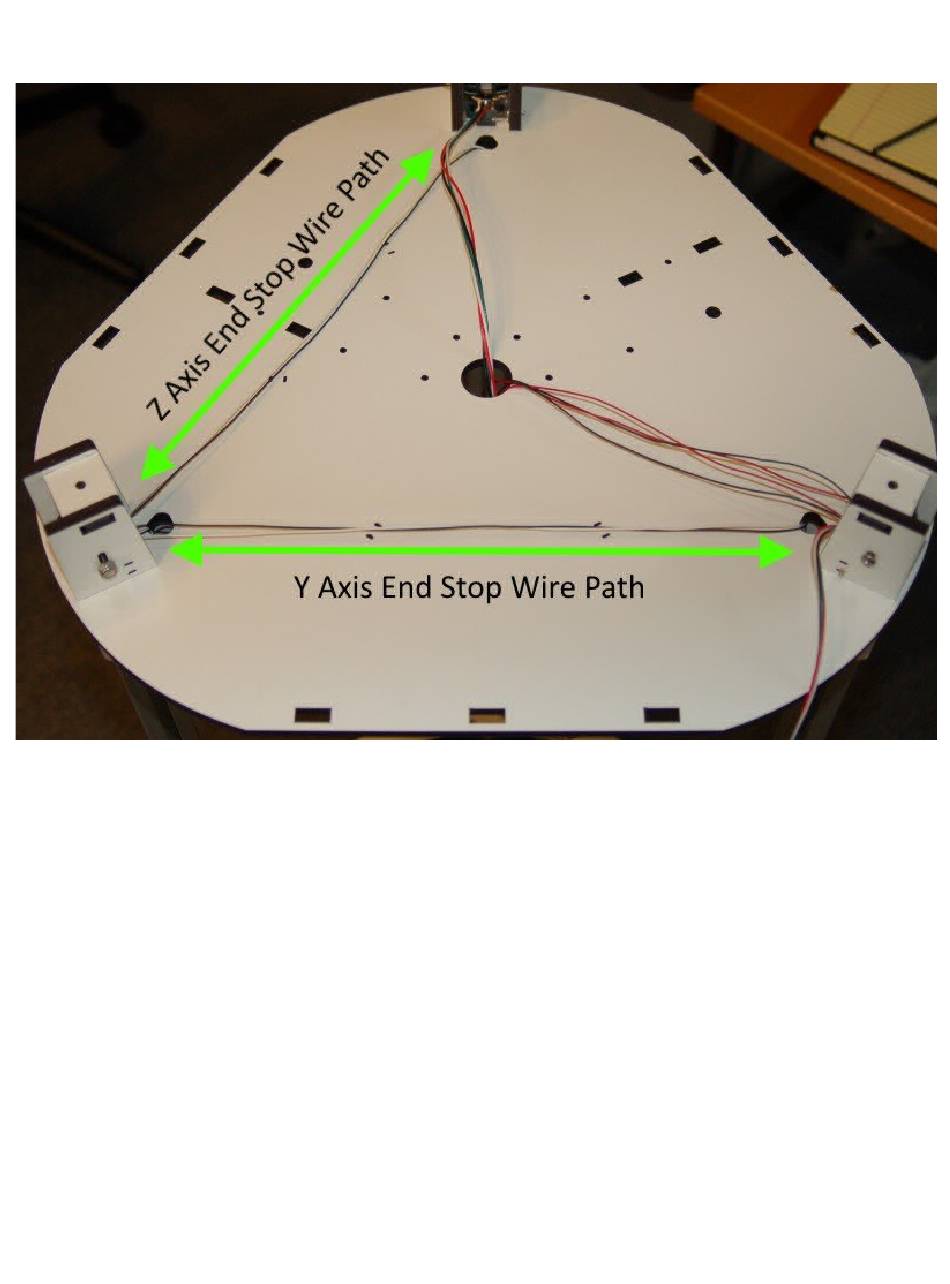

Fig. 7-35: Z and Y axis end stop switch wire paths.
[Top plate is flipped in the photo, but the wire path remains the same!]
The figure above shows the Y and Z end stop switch wire paths. The start point for both is the
X axis on the lower left.
