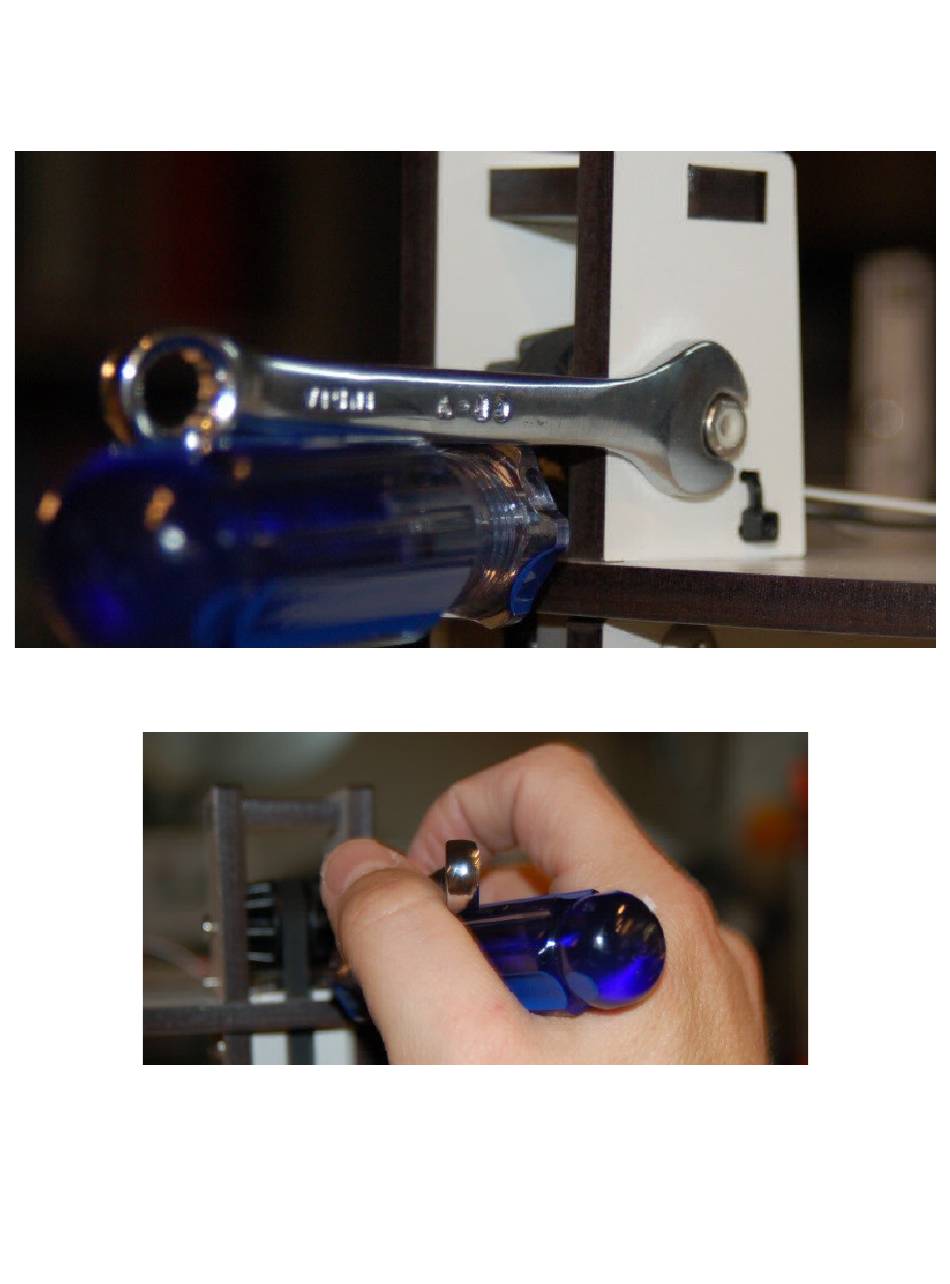

Next, you'll want to set a 5/16" open end wrench on to the idler pulley mount nut as shown.
This position will allow you to lift the idler and hold the wrench at the same time.
Fig. 9-15: Wrench in place.
Now hold both the screwdriver and the wrench in your right hand as shown below.
Fig. 9-16: Holding the screwdriver & wrench in place.
Rostock MAX v2 Assembly Guide
134
