Installing the Upper Idler Bearings

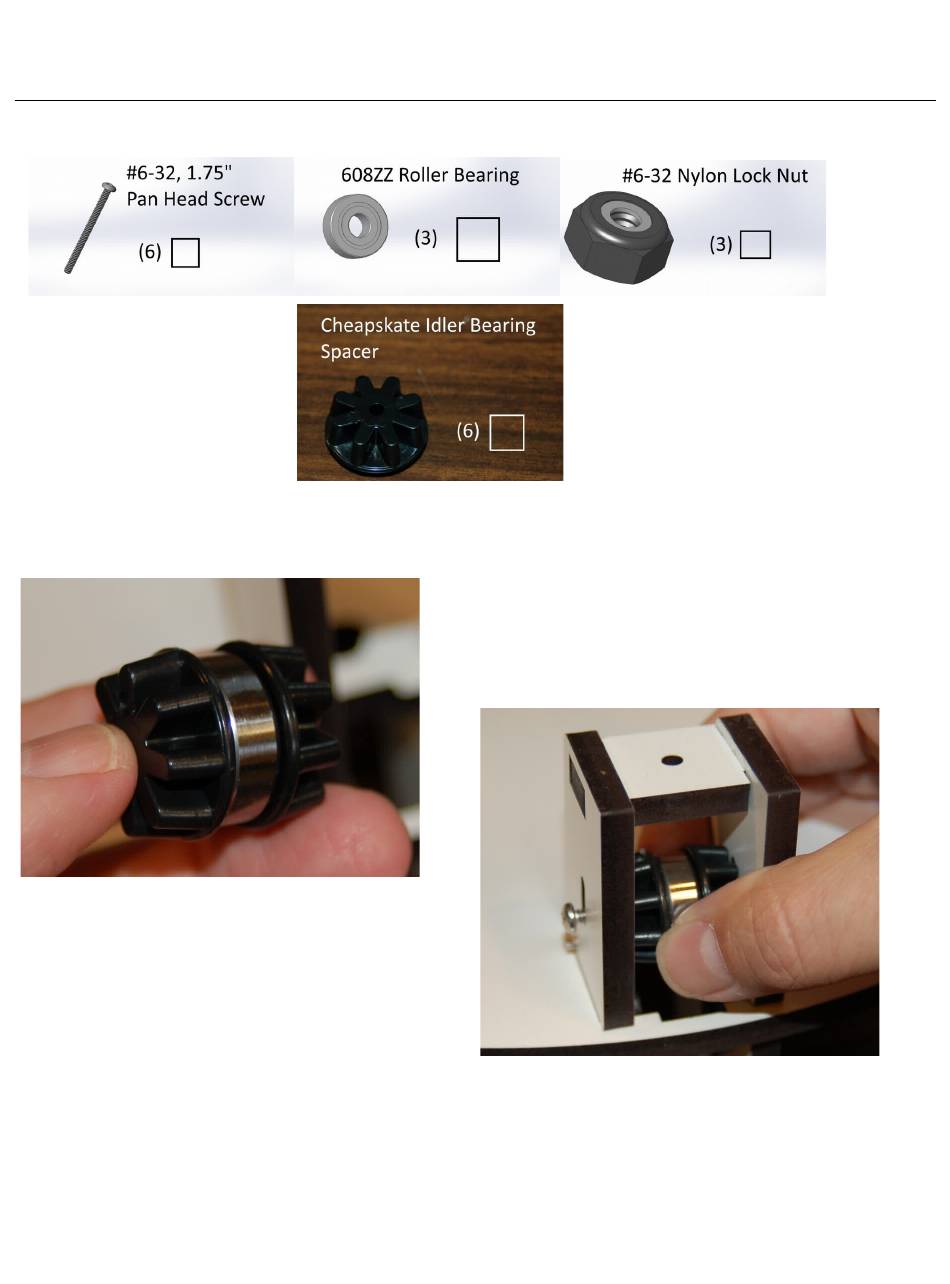

For this task, you'll need the following components:
First you'll need to put together two idle bearing spacers with one bearing. This is the same task
you did for the lower idler bearings.
Fig. 7-19: Upper idler bearing.
Rostock MAX v2 Assembly Guide
Now install the assembled idler using a 1.75" pan
head screw as shown below.
Fig. 7-20: Screw inserted.
