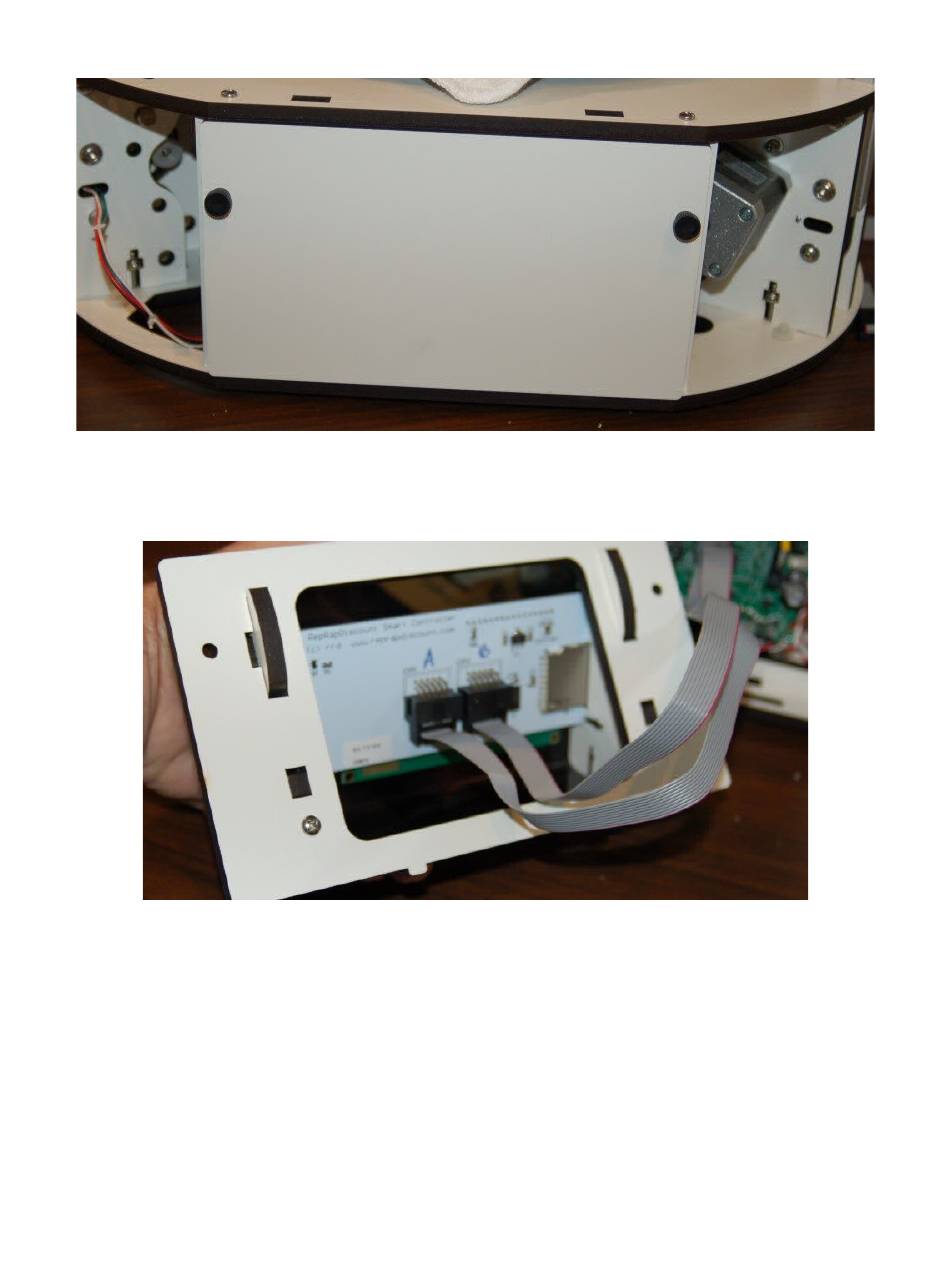

Fig. 17-1: Cover plate installed.
Now install the "A" and "B" cables on to the back of the LCD controller in the locations you
labeled when you first assembled it.
Fig. 17-2: LCD controller cables installed.
You'll notice two small tabs on the bottom edge of the LCD controller assembly. Those tabs fit
a pair of slots in the center vertical support. Coil up the controller cables in the space at the bottom of
the LCD controller and fit it to the front of the machine as shown.
