Rostock MAX v2 Assembly Guide
The spool holder support is attached to the printer's top plate using the three holes highlighted
below.

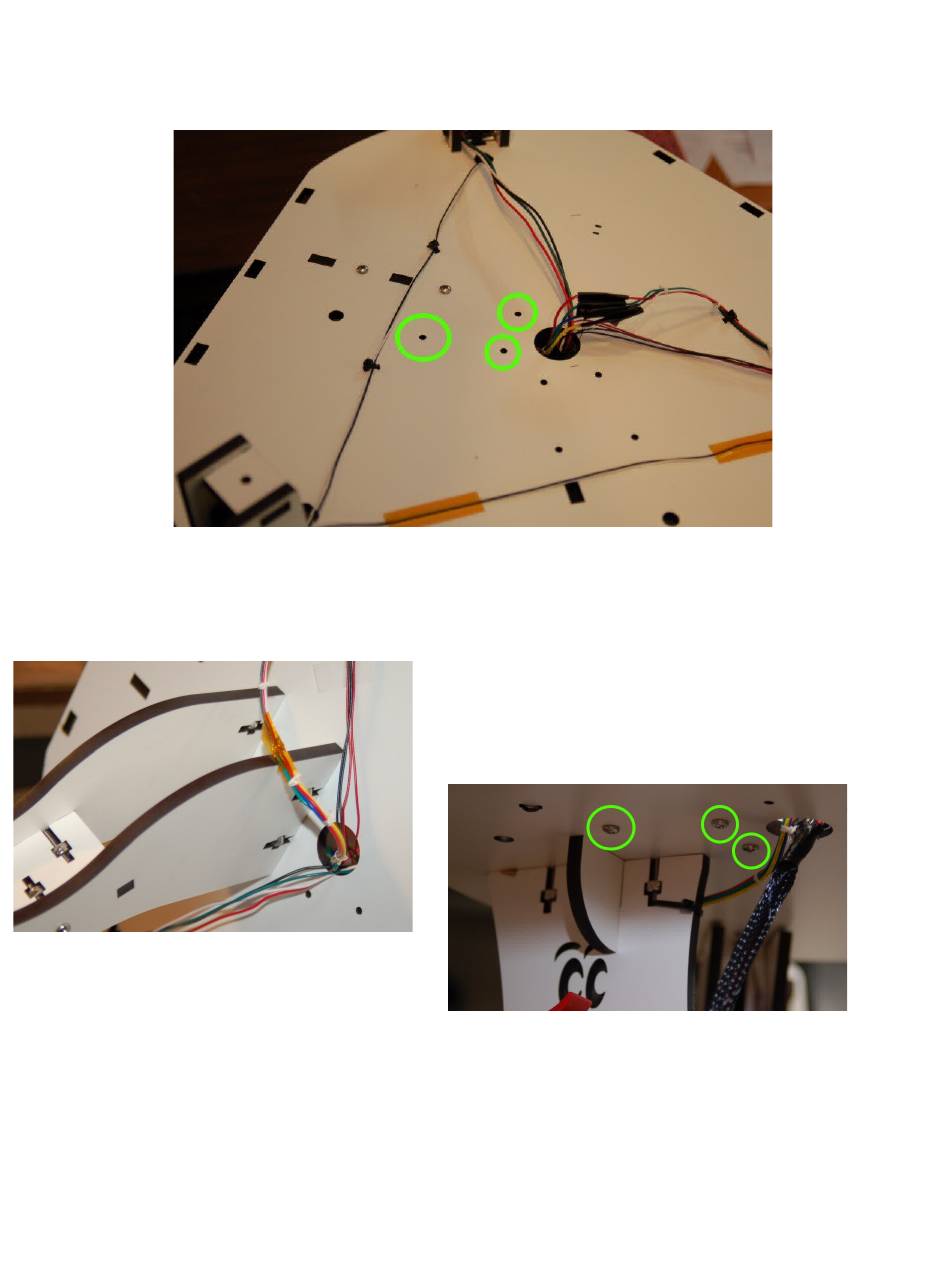

Fig. 14-5: Spool holder mounting holes, top view.
Hold the spool holder support in place with your left hand while you carefully feed in and finger
tighten the three #6-32, 1" pan head screws used to fix it in place.
Fig. 14-6: Spool holder support installed.
Fig. 14-7: Screw locations, bottom view.
