Installing the U-Joint Axles

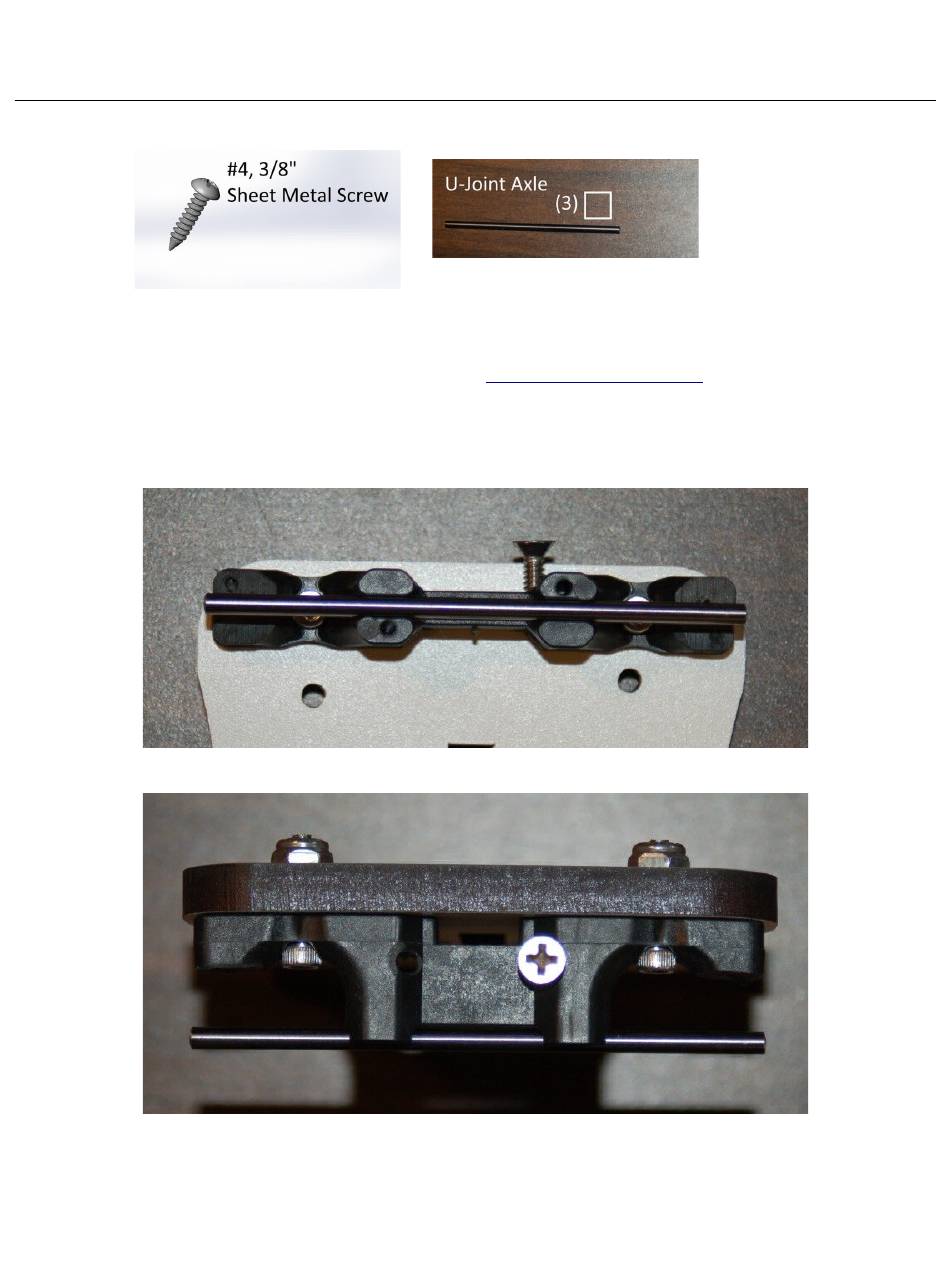

For this task, you'll need the following components:
Carefully inspect the u-joint axles. Ensure that they're perfectly straight and are free of any
scarring. If the axle is bent or badly scarred, contact
The U-Joint carriage has a shallow slot to hold the u-joint axle. Press the axle into the slot.
Make sure that the axle is perfectly centered on the u-joint carriage!
Fig. 8-13: Axle pressed into position.
Fig. 8-14: A properly centered axle.
Rostock MAX v2 Assembly Guide
support@seemecnc.com for a replacement.
