Wire Prep: The Heated End Thermistor Connector

The Onyx heated bed wiring doesn't require a connector to be added, but you should label the
wire and loop up the extra. Label the end of the wire "T2 BED THERMISTOR" I'm using a Brady
IDPal label tool for my wiring, but a bit of masking tape does the same job. :)

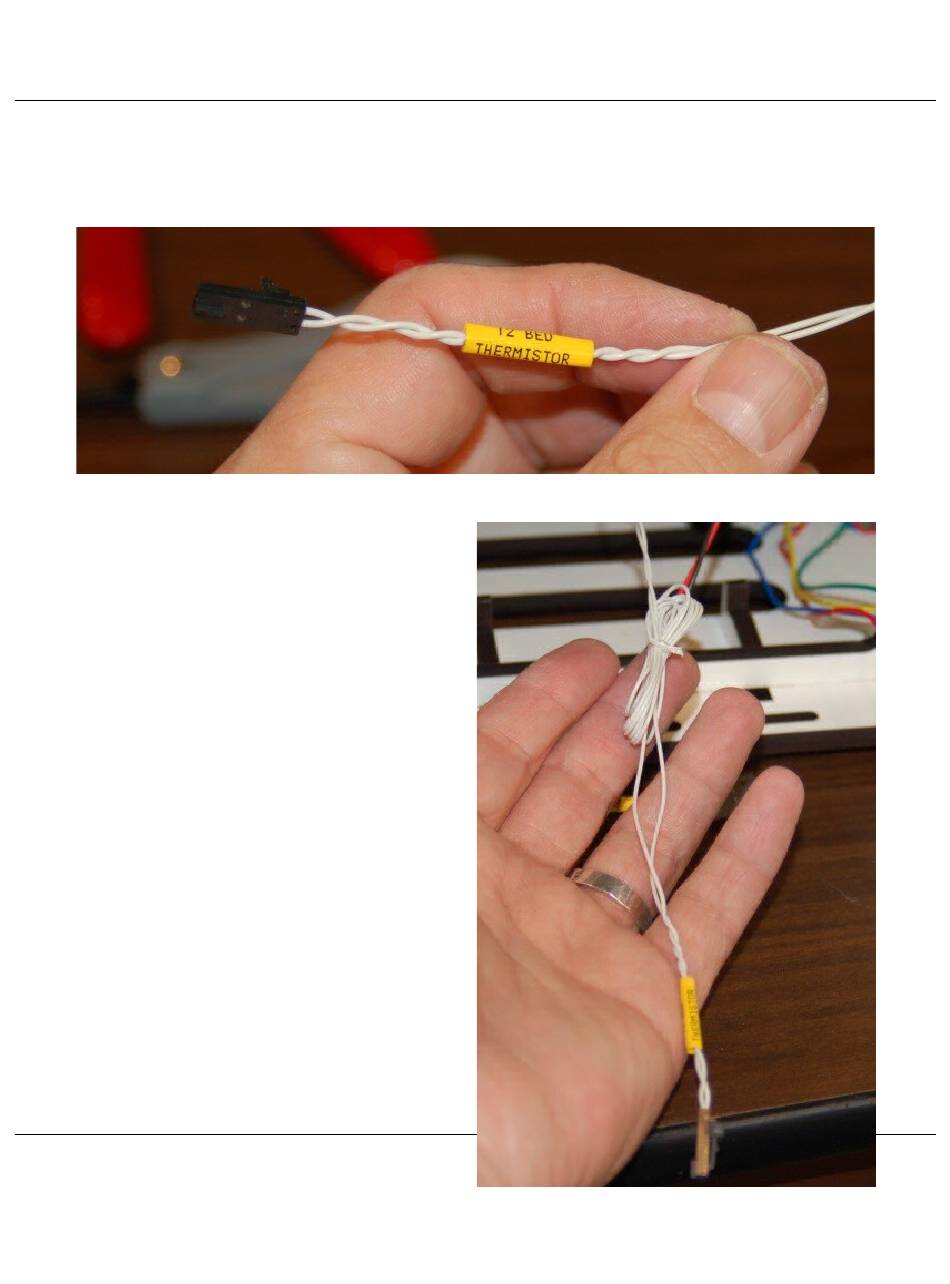

Fig. 16-22: Bed thermistor lead labeled.
Now loop up the extra wire from the bed
thermistor lead. You only need about 6-8" of wire
sticking out the front of the machine to have
enough slack to work with later on. Do not cut the
wire to shorten it.

Wire Prep: Extruder Motor Connector

For this task, you'll need the following
components:
Rostock MAX v2 Assembly Guide
Fig. 16-23: Bed thermistor wire bundled up
