Assembling the U-Joint Carriers

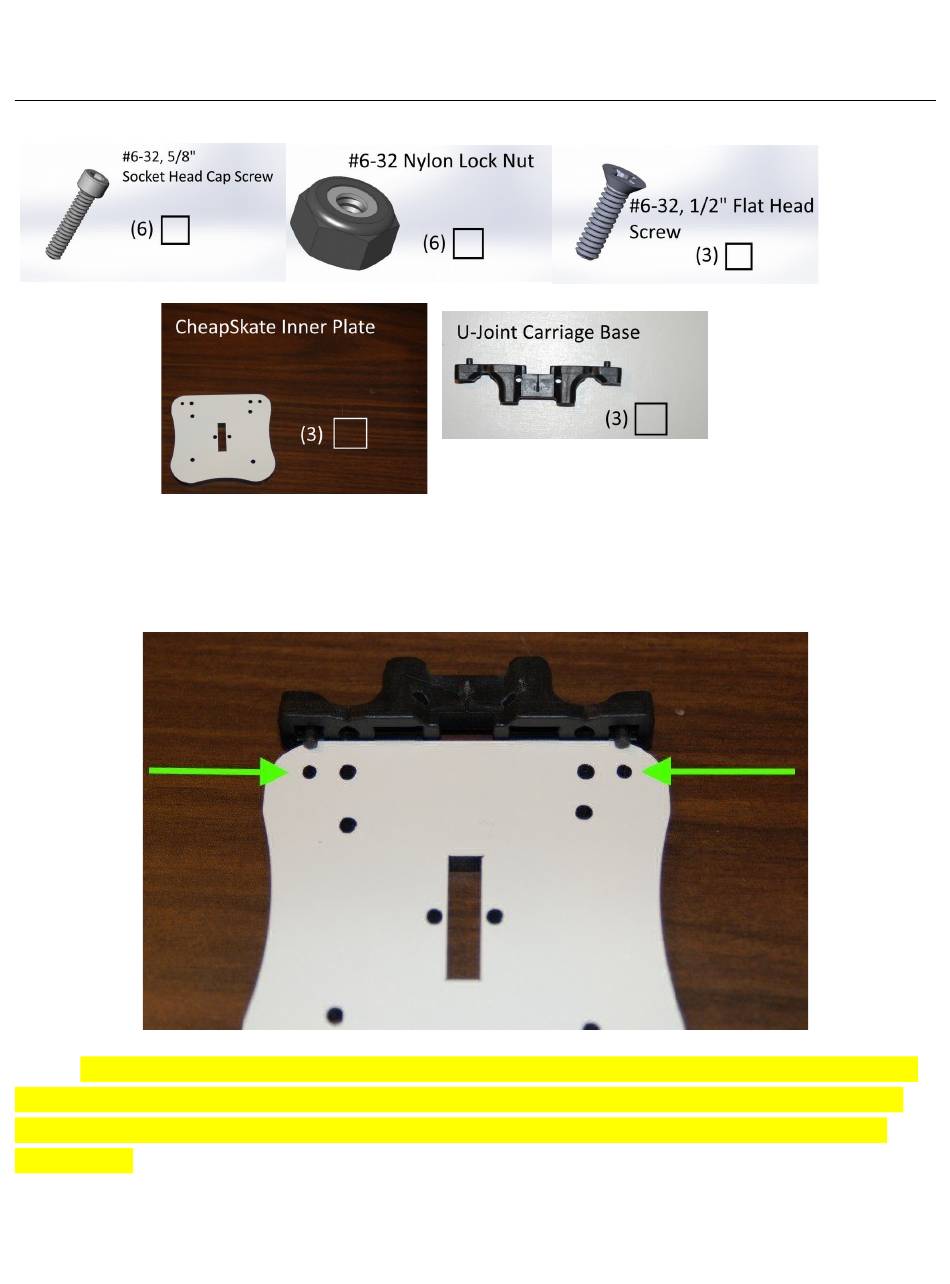

For this task, you'll need the following components:
The U-Joint carriage base gets installed on the inside carriage plate by pressing their alignment
pins into the holes indicated by the arrows in Fig. 8-6.
Fig. 8-6: U-Joint carriage installation location.
IMPORTANT! Note the orientation of the inner plate above. The pair of holes on the left are
closer together than the pair on the right. You must retain this orientation otherwise the Cheapskate
outer plate won't fit in it's correct orientation (eyes "looking" right) when it's time to assemble the
Cheapskates!
