aluminum inner jacket. For this task we'll only be using the red & black wires. The other two can be
discarded. The red & black wires are going to be soldered to the bottom of the Onyx and will supply
power to it.
Strip about 1/2" of insulation off the red wire and set it in place on the middle of the square pad
with the "+" symbol next to it. (The "+" indicates that this is the Positive connection.)

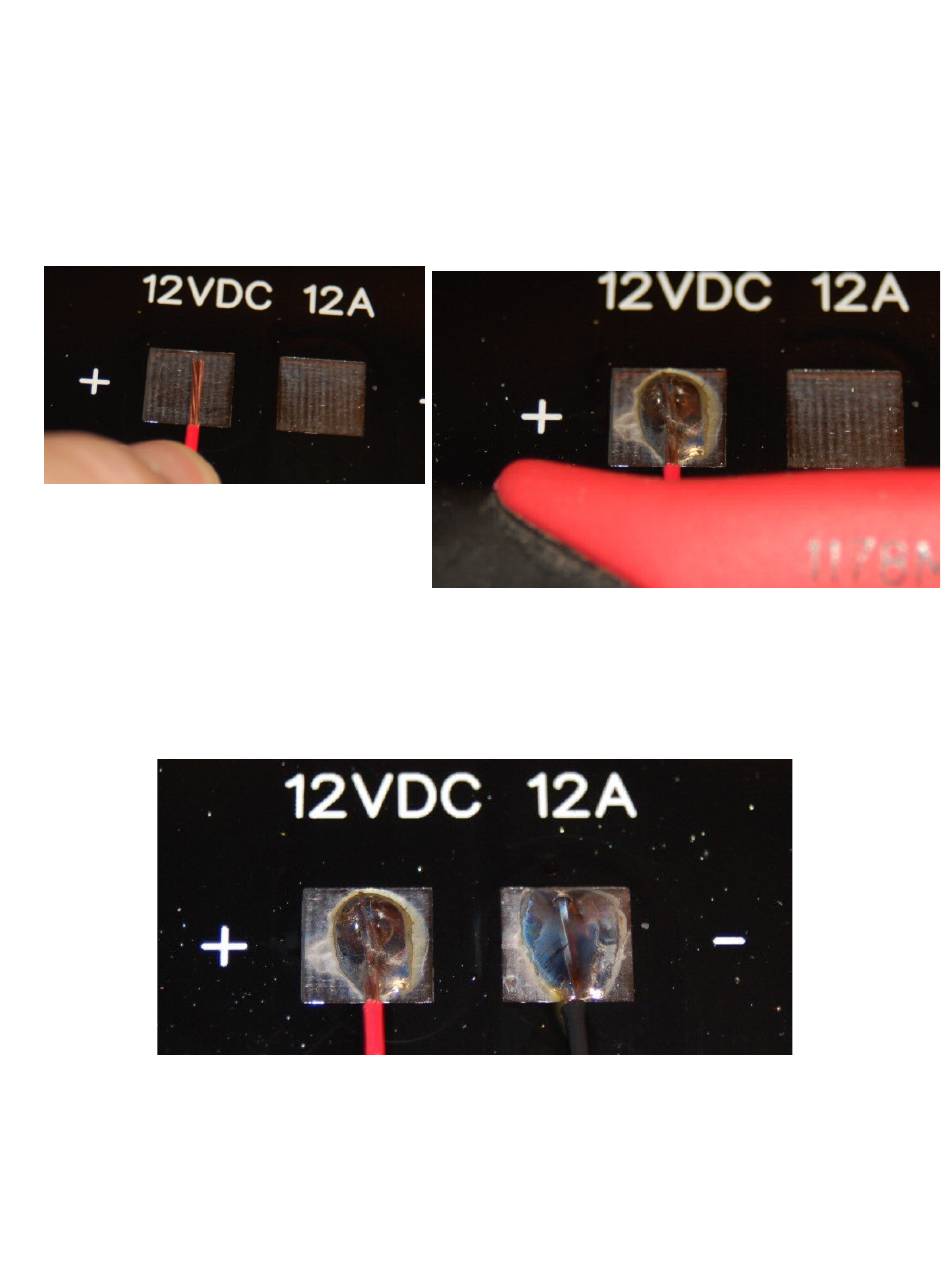

Fig. 5-18: Ready to solder.
You may need to use something to
hold the wire into place while you solder it. I
used a pair of wire cutters to weight it down.
Now perform the same task with the black wire. The black wire will be soldered to the pad
marked with the "-" symbol. (The "-" symbol indicates that this is the Negative or Ground
connection.)
Fig. 5-20: Onyx power leads soldered into place.
