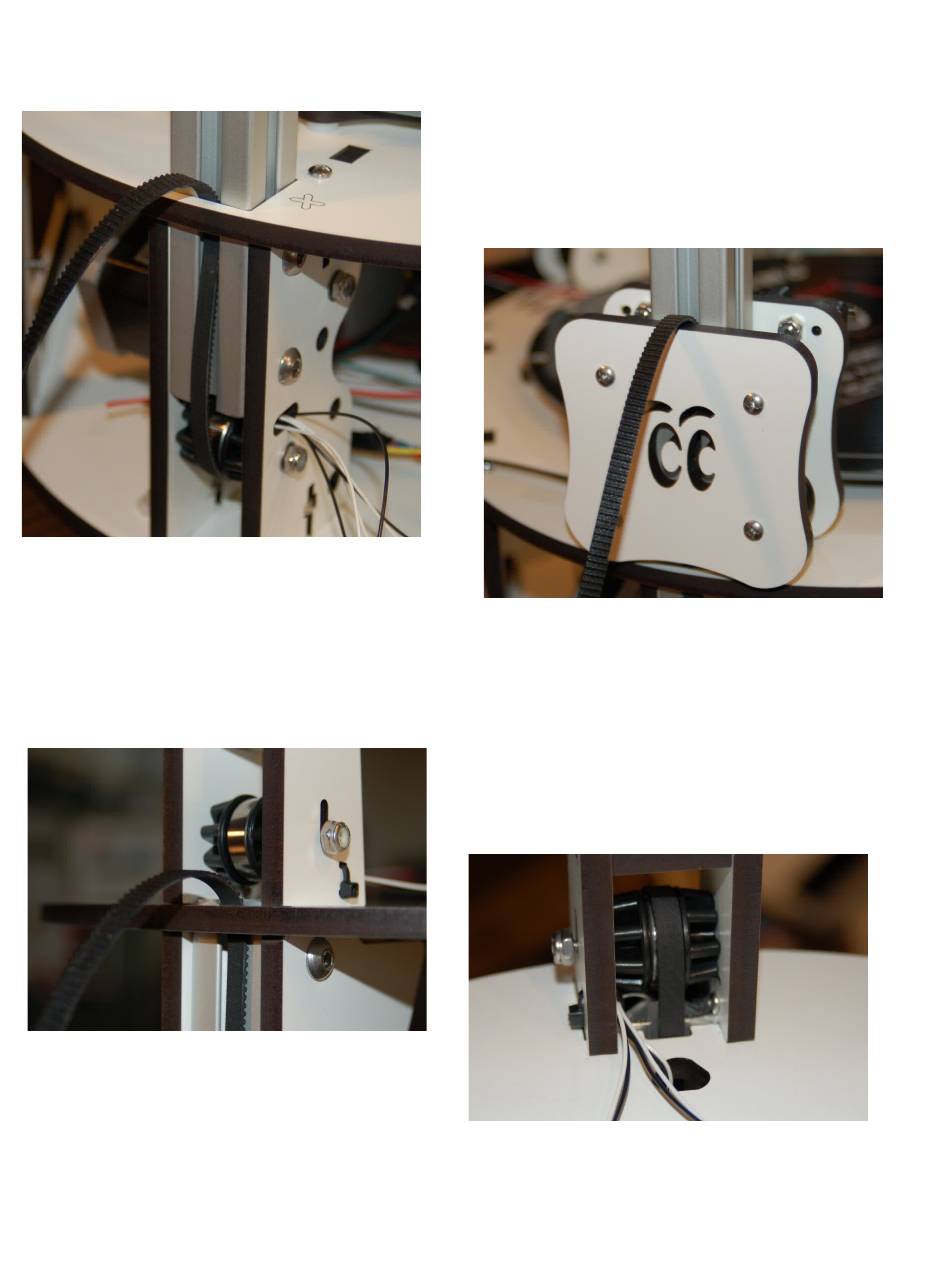

Now thread the belt through tower hole in the base plate.
Fig. 9-4: On our way to the top...
Now you can pull the belt up towards the top and route it between the tower and the top plate
opening as shown.
Fig. 9-6: Belt at the top...
Rostock MAX v2 Assembly Guide
of the Cheapskate and the tower as shown below.
Fig. 9-5: Belt under the Cheapskate.
Now route the belt over the top of the idler and
back down through the tower opening as shown.
Fig. 9-7: On the way back down!
Next, thread the belt between the outer face
