SeeMeCNC HY-TB4DV-M User Manual

4 axis tb6560 parallel port stepper motor control board

Advertisement

Quick Links

SeeMeCNC
4 Axis Driver Board setup for Mach3
User Guide
for 4 axis TB6560 driver board

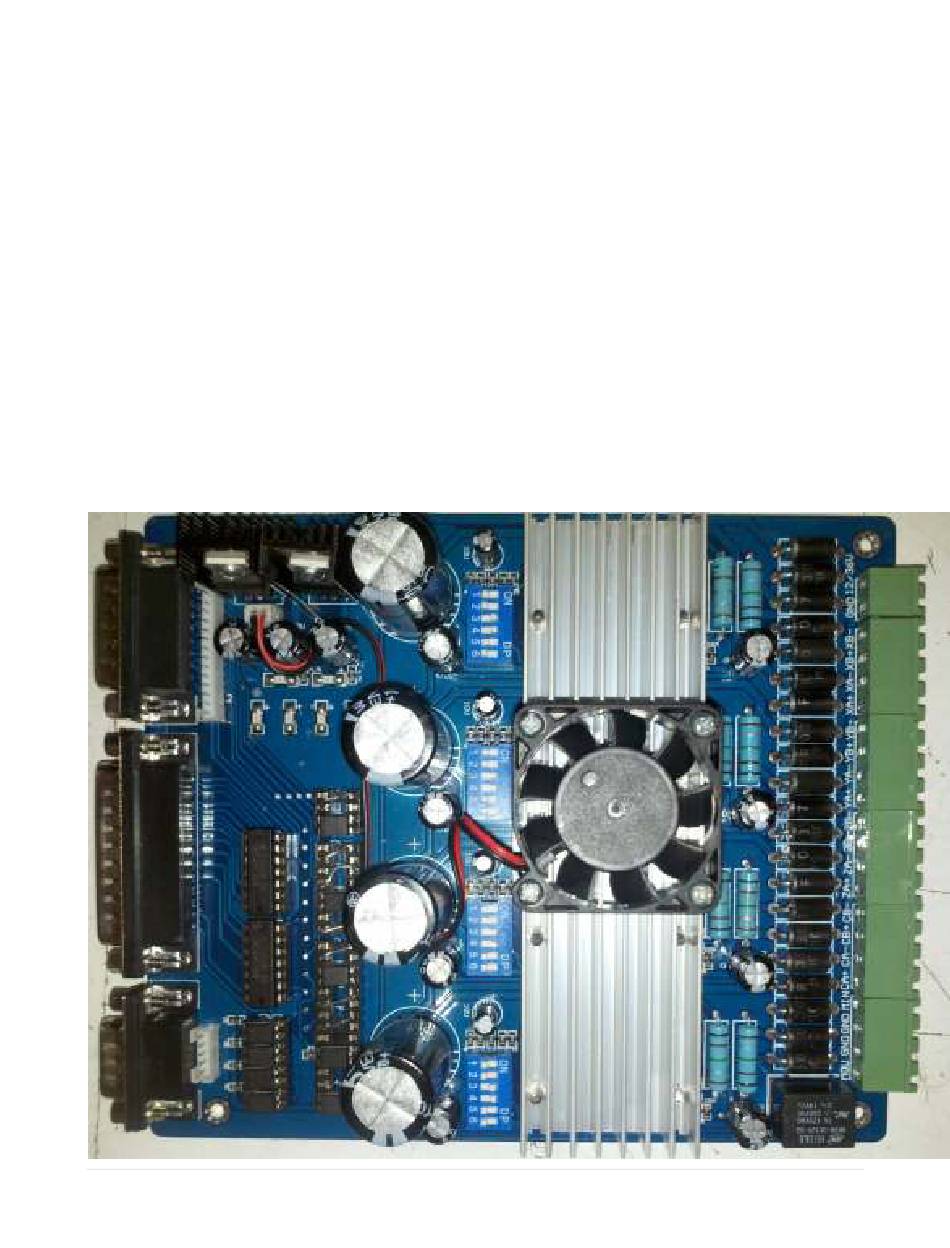

4 Axis Parallel Port Stepper Motor Control Board
MODEL: HY-TB4DV-M
shipping with SeeMeCNC 3D printers May, 2012.
1 |
P a g e

Advertisement

loading
Need help?

Need help?

Do you have a question about the HY-TB4DV-M and is the answer not in the manual?

Questions and answers

Summary of Contents for SeeMeCNC HY-TB4DV-M

  • Page 1 SeeMeCNC 4 Axis Driver Board setup for Mach3 User Guide for 4 axis TB6560 driver board 4 Axis Parallel Port Stepper Motor Control Board MODEL: HY-TB4DV-M shipping with SeeMeCNC 3D printers May, 2012. P a g e...
  • Page 2: Table Of Contents

    Contents Product Features: ........................3 Dip Switch Settings: ........................ 4 POWER ..........................4 Connections: .......................... 5 The definition of 1-PIN15 of Manual Interface: ................ 6 The definition of DB9 4 channel inputs interface: ..............6 The definition of output Interface: ................... 6 P a g e...
  • Page 3: Product Features

    Product Features: 1. Toshiba TB6560AHQ stepper driver chip - High power, maximum 3.5A drive current chipset ! 2. 1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step! 3. Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors 4.
  • Page 4: Dip Switch Settings

    100% FAST SLOW 1/16 POWER *please note that SeeMeCNC has not verified this information Power supply�DC 12-36V *Voltage Selection Guidelines: 12-16V DC power supply for Nema 17 stepper motors 16-24V DC power supply for Nema�23 stepper motors 24-36V DC power supply for Nema�34 stepper motors...
  • Page 5: Connections

    Suitable for unipolar or bipolar stepper motors. Voltage regulated spindle speed controlled by parallel interface as function of supply voltage. Connections: The definition of 1-PIN 25 of Parallel Interface on the 4 axis driver board: ● We have made this table to resemble the Mach3 “Port & Pins” configuration screen. ●...
  • Page 6: The Definition Of 1-Pin15 Of Manual Interface

    The definition of 1-PIN15 of Manual Interface: P1 Z/C Enable C Step Z Step X Dir X Enable Y Enable Y Dir Z Dir C Dir Spindle Motor Y Step X Step STOP 5V/vdd The definition of DB9 4 channel inputs interface: X Limit Y Limit Z Limit...
  • Page 7 GND XA+ MO/V+ GND MO- P a g e...
