Initial Function Tests

Before the calibration process can begin, we need to perform a test of the end-stop switches to
make sure that they're functioning correctly. In order to perform this test, you'll need to be able to
directly "talk" to the Rostock MAX v2. Click on the "Configuration" option as shown below.

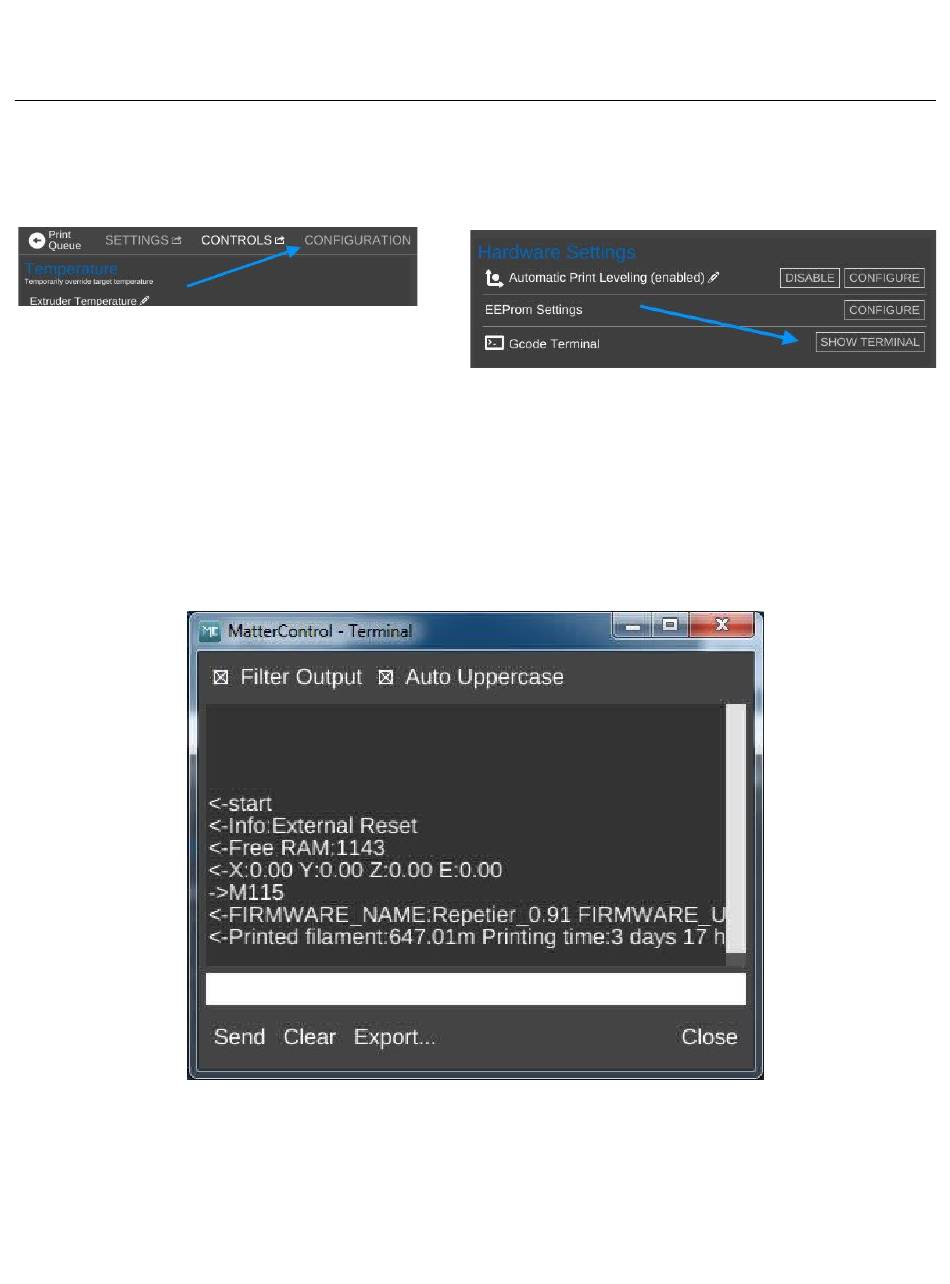

Fig. 19-12: Configuration.
Click on the SHOW TERMINAL button. This will open up the terminal screen that we need
to use to directly communicate with the printer. When the terminal window first opens, you'll see it
displaying information that's coming from the printer. This data is being processed by MatterControl to
update the temperature displays, etc. The terminal is easier to work with if we turn that information
off. To do so, click on the Filter Output check-box as shown below.
Fig. 19-14: Filtering the terminal output.
Rostock MAX v2 Assembly Guide
Fig. 19-13: The Terminal button.
228
