Now take two #4, 3/8" sheet metal screws and install them into the locations shown to hold the
axle in place.

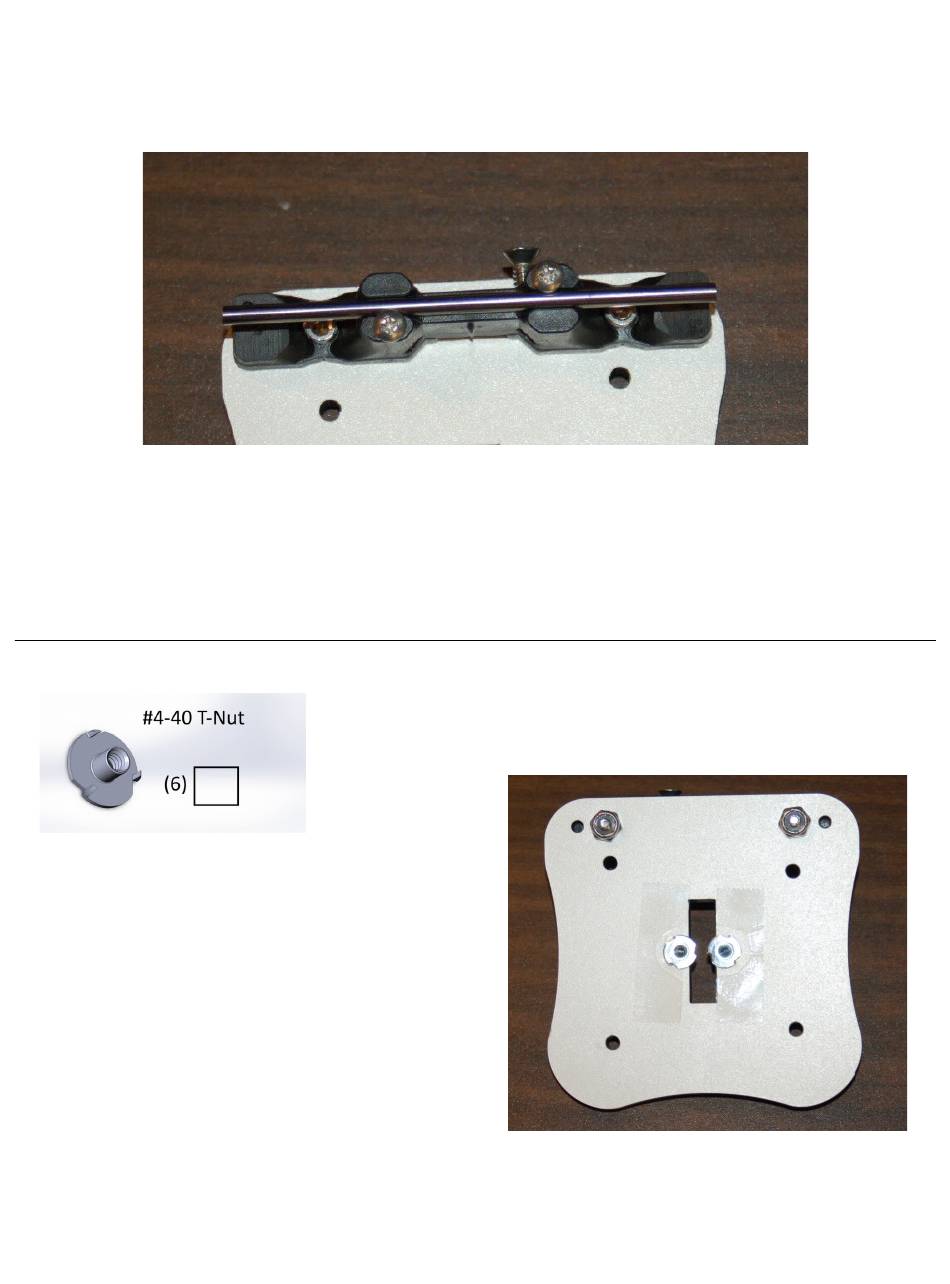

Fig. 8-15: Axle retaining screws installed.
When fully tightened, the #4 screws should be in full contact with the u-joint carrier and should
slightly overlap the axle as shown above.
Repeat this task for all three u-joint carriages.

Installing the Belt Clip T-Nuts

For this task you'll need the following components:
Install two #4-40 T-Nuts in the back of all three
Cheapskate inner carriage plates as shown.
Make sure the barbs on the t-nuts are fully
seated in to the Melamine. A good tap with a hammer
should fully set them. Cover each one with a bit of
Scotch tape to hold them in place.
Rostock MAX v2 Assembly Guide
Fig. 8-16: T-Nuts installed.
122
