Connecting the End Stop Switches

For this task, you'll be routing the end-stop wires to the end-stop switches and connecting them
up. At the "front" of each tower there is a small, triangular shaped opening that you're going to pass
the end stop switch wires through. We'll start with the Z axis. Pull the leads you labeled "Z" across
from the X axis and route them through the hole shown in Fig. 7-32. If you need more wire to reach,
gently pull it up at the top of the X tower. You may need to lift the X tower a little bit to lessen the
bend radius the wire needs to feed.

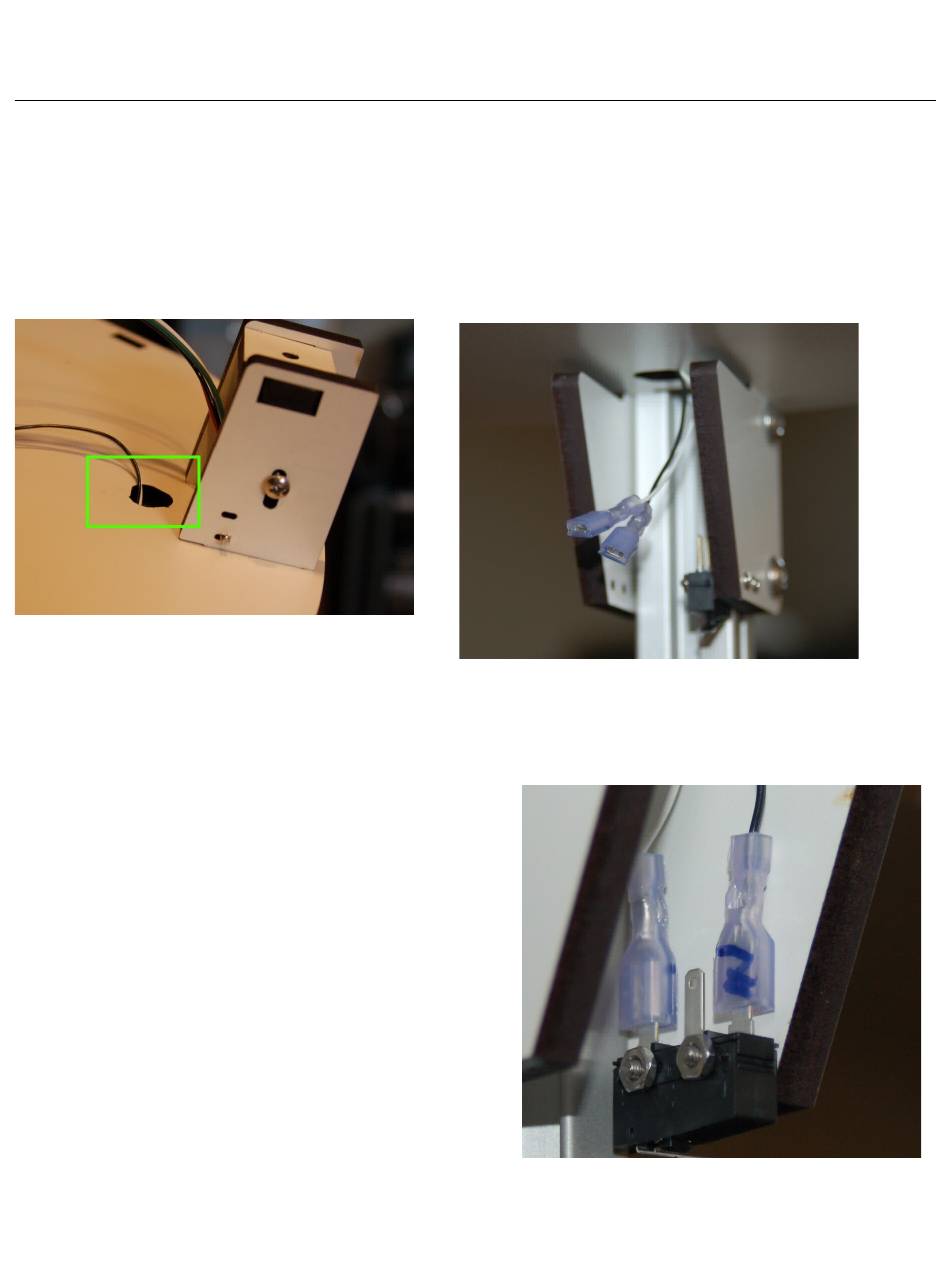

Fig. 7-32: Z axis end stop wire hole.
Now carefully seat each spade lug connector on to the end stop switch as shown below. It
doesn't matter where the white & black wires go, just as long as one is on the innermost spade lug and
the other the outermost.
Repeat this process for the X and Y towers.
Once all three towers are done, carefully pull the
wires at the bottom of the X tower to pull out the slack
in the Z and Y axis end stop wires. Don't pull them too
tight – you just want the wires to be fairly straight.
Rostock MAX v2 Assembly Guide
Fig. 7-33: Z axis wires ready to plug in.
Fig. 7-34: Z axis end stop switch wired.
