Rostock MAX v2 Assembly Guide
The last task to finish off the wiring is to cover all the exposed connections with Kapton tape.
This will help insure against any accidental shorts. The tape will also act as a bit of strain relief for the
wiring.

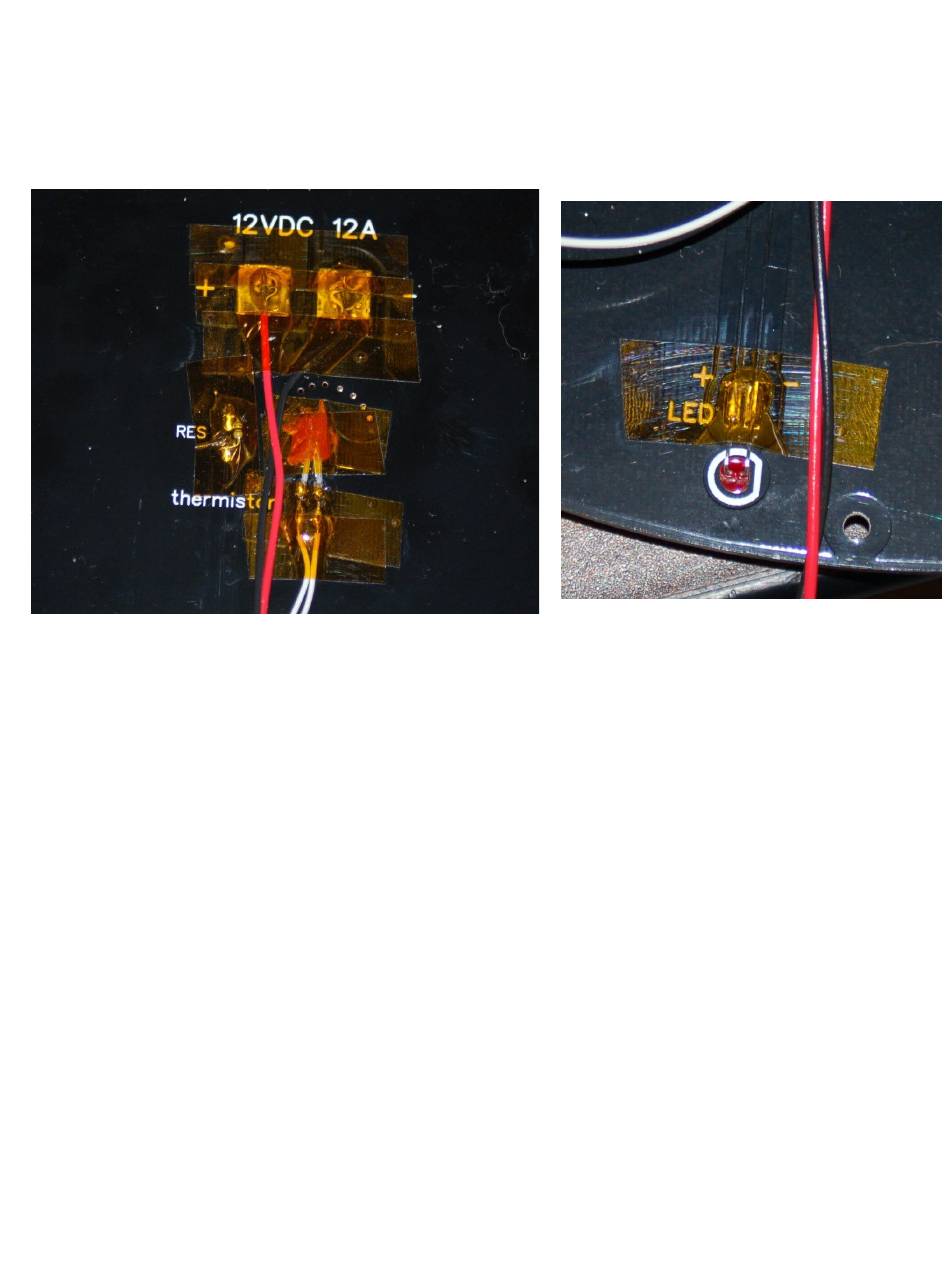

Fig. 5-26: LED covered.
Fig. 5-25: Main bed connections covered.
74
