Installing the Top Plate and Spool Support Arm

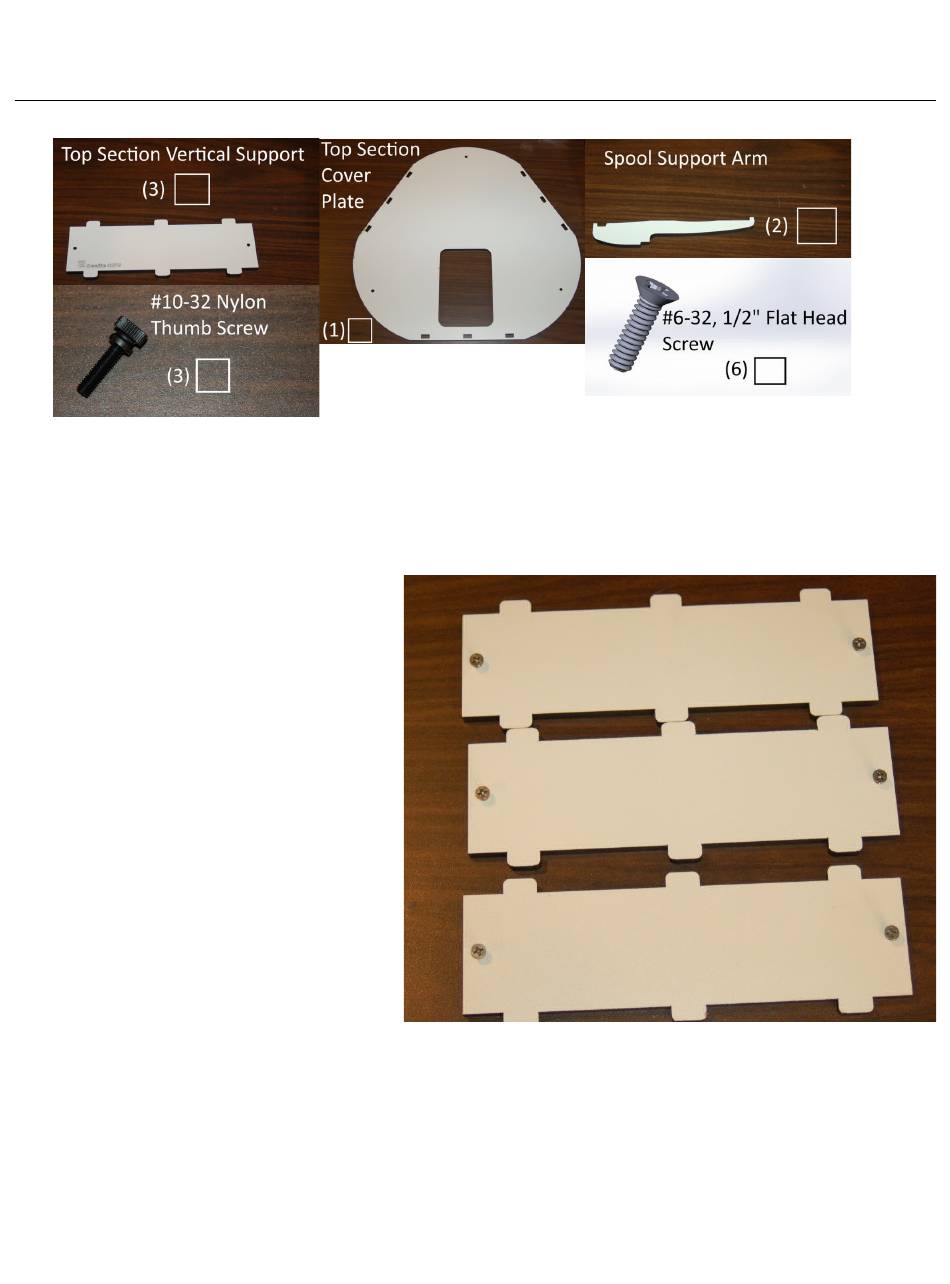

For this task, you're going to need the following components:
Before we can install the top section vertical supports, we'll need to install two #6-32, 1/2" flat
head screws in each one. They need to be installed on the inside face (opposite of the SeeMeCNC logo
engraving).
Remember that you only want to
drive the screw in until the tip of the screw
is flush with the outside face of the part,
just like you did on the vertical supports in
the base.
Rostock MAX v2 Assembly Guide
Fig. 14-9: Screws installed.
