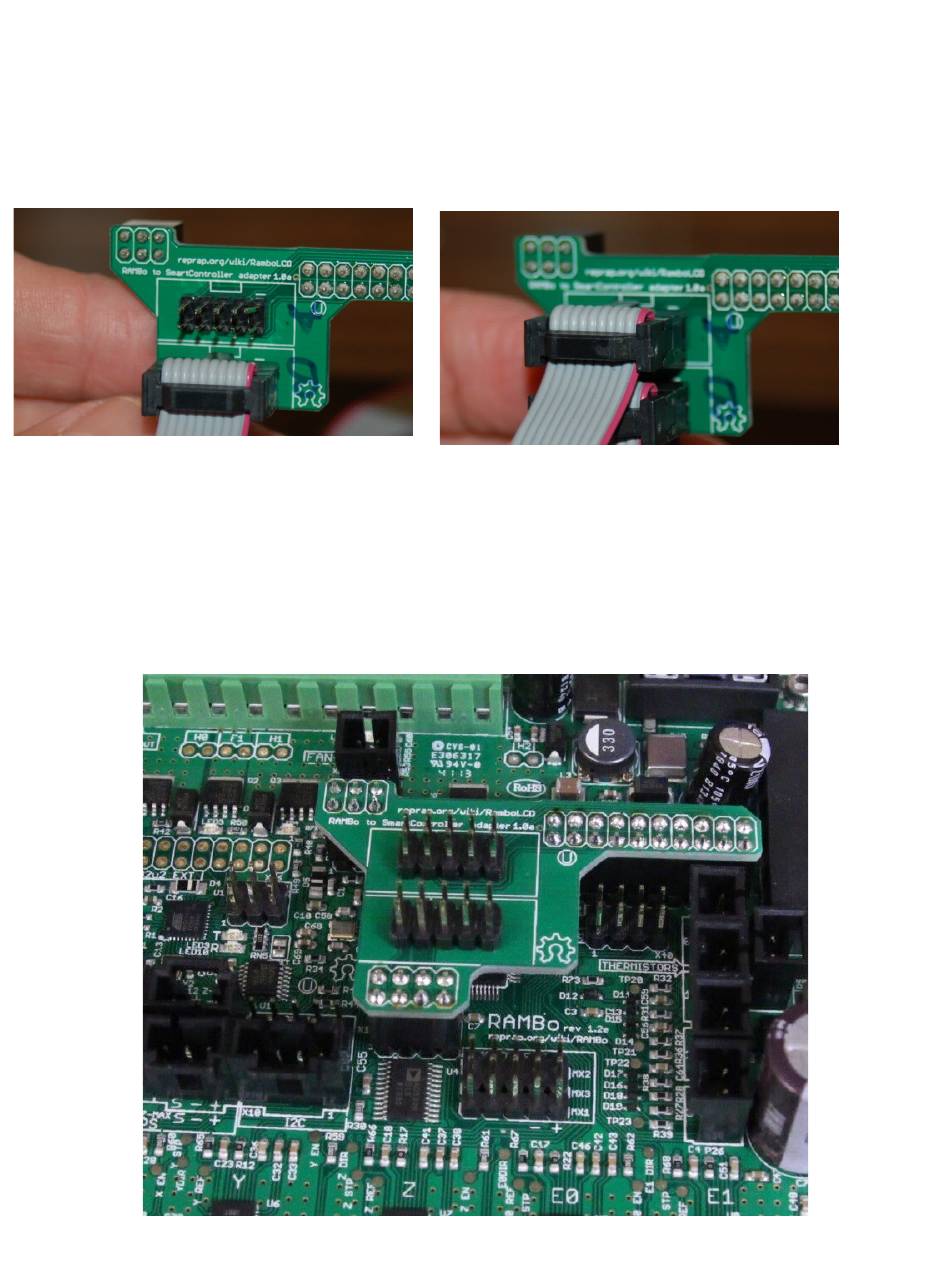

Install the ribbon cables on the LCD interface board as shown below.
Fig. 16-42: "B" Cable installed.
Install the LCD interface board on to the RAMBo controller as shown. Wiring has been omitted
for clarity.
Fig. 16-44:LCD interface adapter installed.
Rostock MAX v2 Assembly Guide
Fig. 16-43: "A" Cable installed.
197
