Assembling and Installing the Cheapskate Carriages

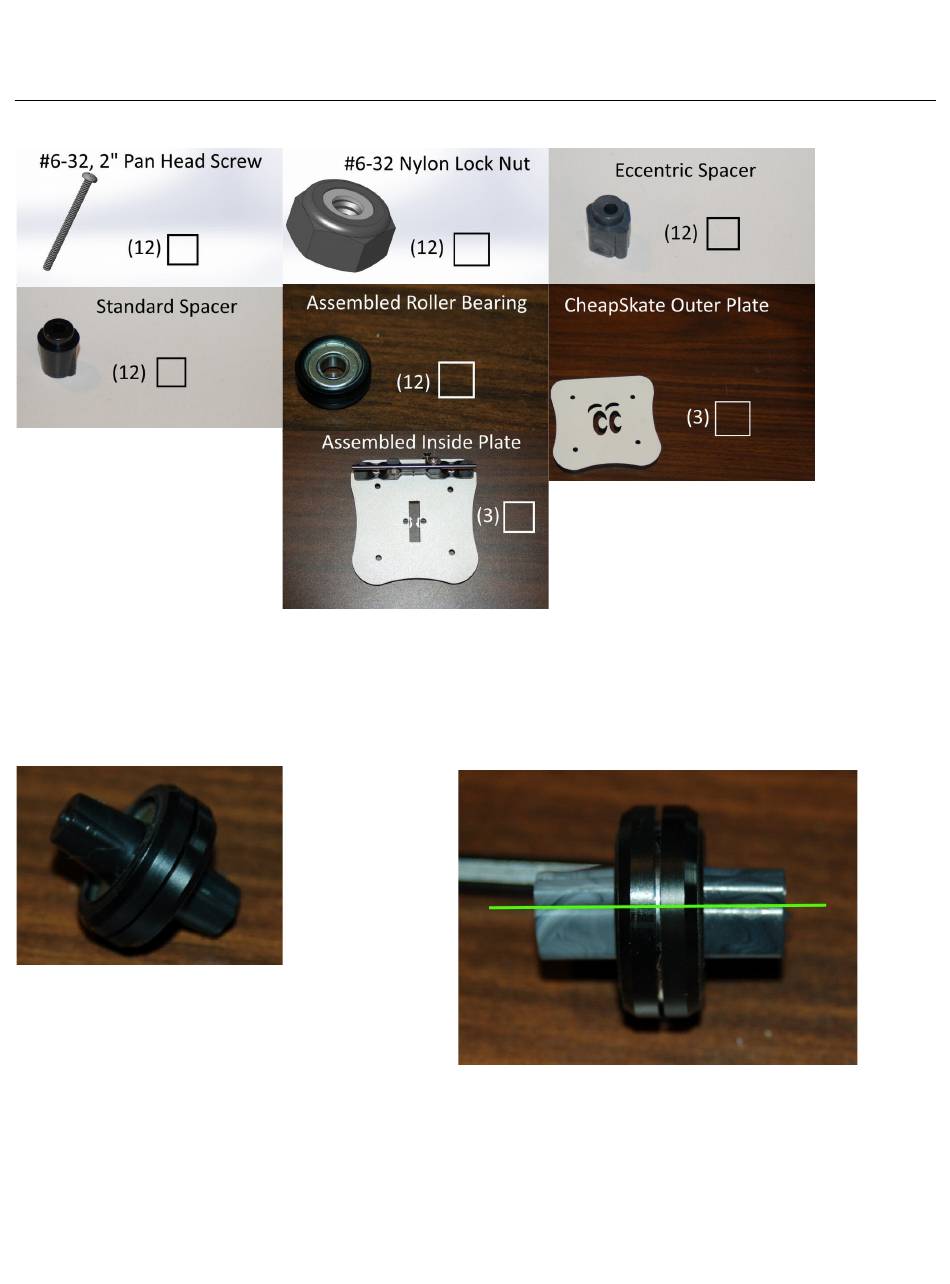

For this task, you'll need the following components:
Each Cheapskate will get two roller bearings with "Standard" plastic spacers and two roller
bearings with "Eccentric" spacers. The eccentric spacers are used to correctly adjust the "grip" that the
roller bearings have on the towers.
Fig. 8-17: Standard spacers.
The eccentric spacers have a small
"bulge" on one face. When inserting the spacers
into the roller bearing, make sure the bulges are lined up with one another as shown above in Fig. 8-18.
