Installing the Belt Clip T-Nuts

For this step you'll need the following components:
1. (___) #4-40 T-Nuts (6)
Install two #4-40 T-Nuts in the back of all three Cheapskate inner carriage plates as shown.
Make sure the barbs on the t-nuts are fully
seated in to the Melamine. If they're a bit loose, you
can cover them with a small bit of Scotch tape to hold
them in place until the belts are installed.
Rostock MAX v2 Assembly Guide

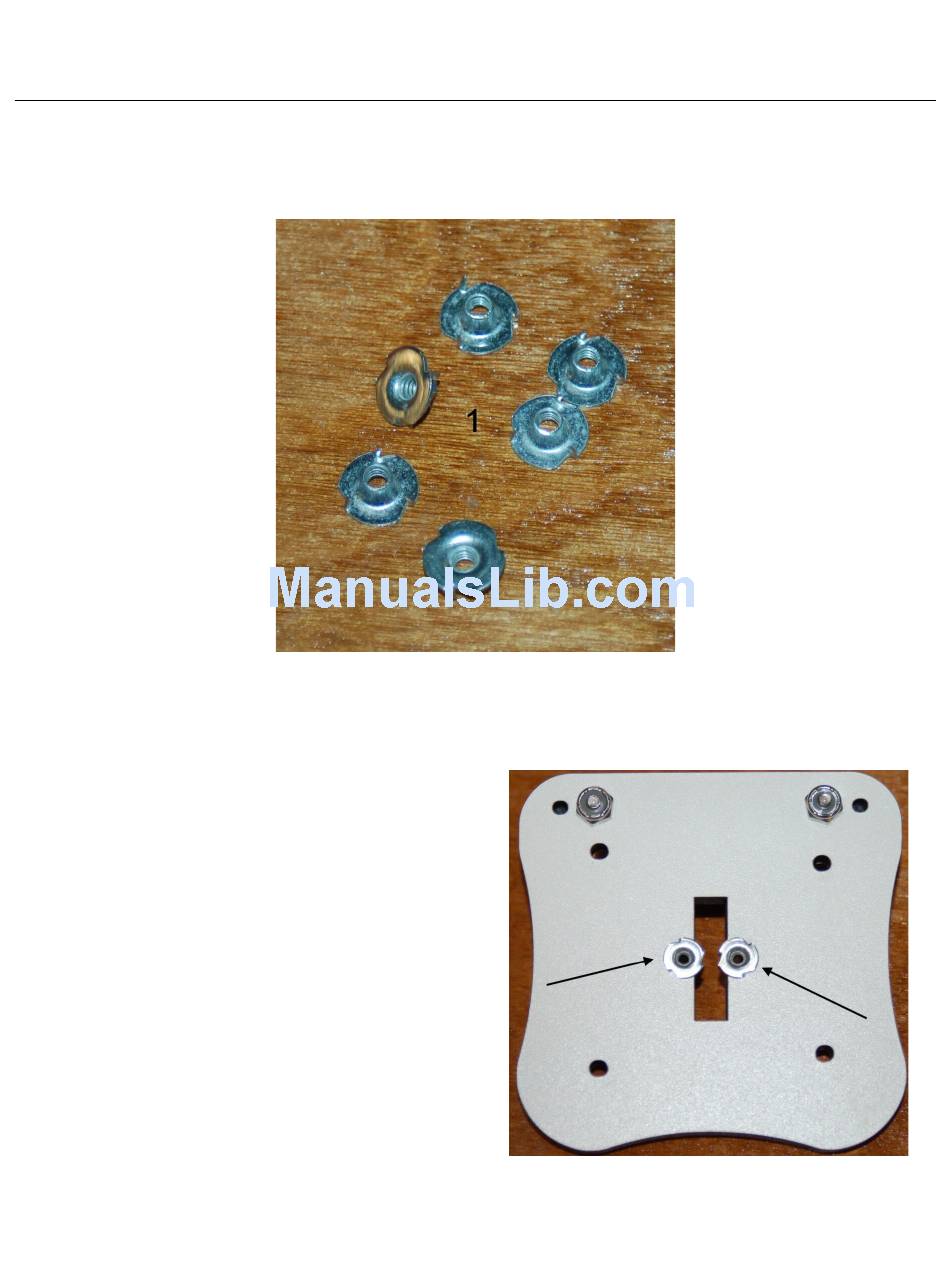

Fig. 8-15: Belt Clip T-Nuts.
Fig. 8-16:Belt clip t-nuts installed.
