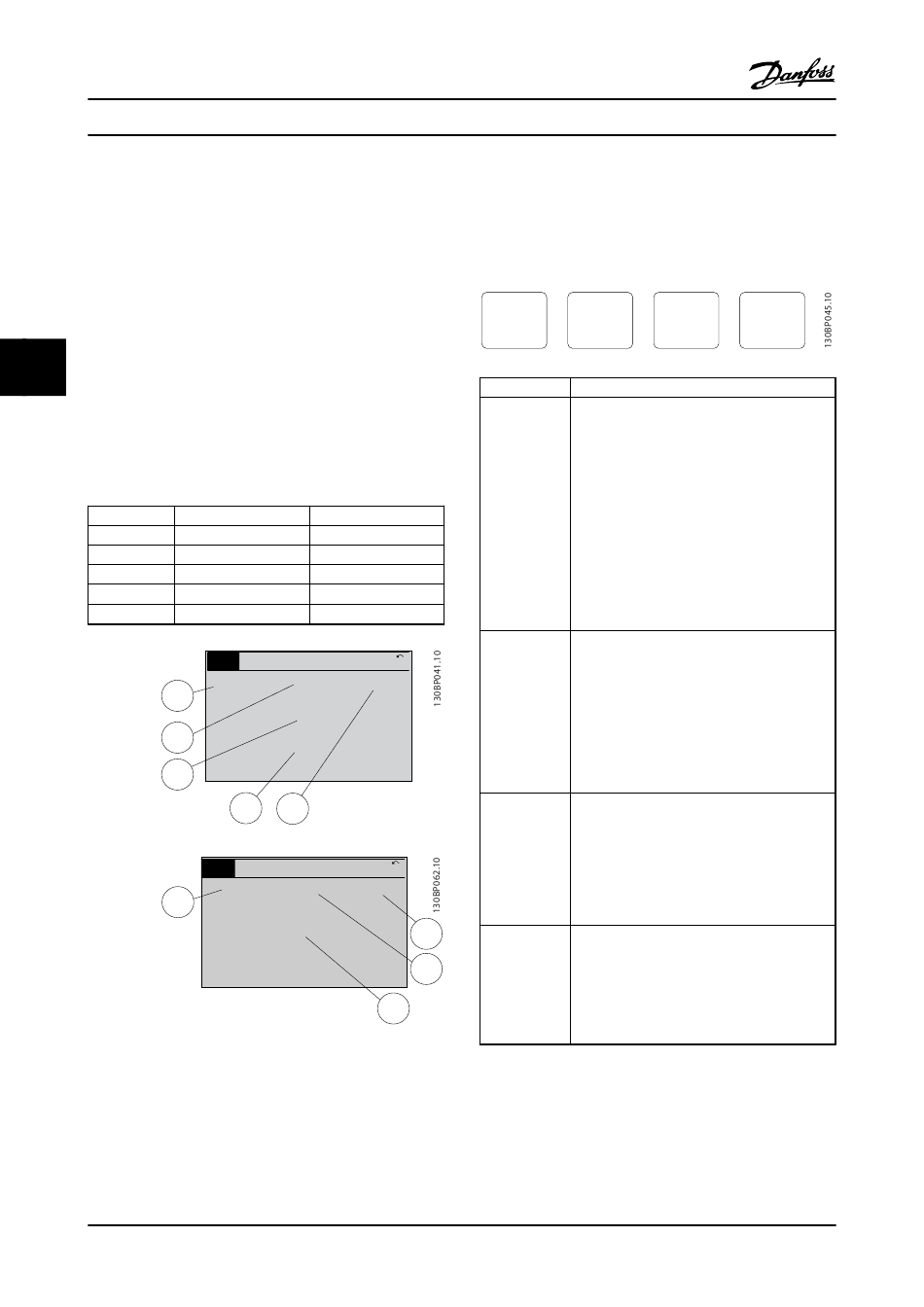

User Interface

4.1.2 Setting LCP Display Values

The display area is activated when the adjustable
frequency drive receives power from AC line voltage, a DC
bus terminal, or an external 24 V supply.
The information displayed on the LCP can be customized
for user application.
•
Each display readout has a parameter associated
4 4
with it.
•
Options are selected in main menu 0-2*.
•
The adjustable frequency drive status at the
bottom line of the display is generated automat-
ically and is not selectable. See 7 Status Messages
for definitions and details.
Display
1.1
1.2
1.3
2
3
4-2
Parameter number Default setting
0-20 Speed [RPM]
0-21 Motor Current
0-22 Power [kW]
0-23 Frequency
0-24 Reference [%]
Status
799 RPM 7.83 A
1.1
0.000
1.2
53.2%
Auto Remote Ramping
2
3
1.3
Status
207RPM 5.25A
1.1
6.9Hz
Auto Remote Running
MG.33.AI.22 - VLT
VLT ® AutomationDrive Instruction
Manual

4.1.3 Display Menu Keys

Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Status
Key
Status
Quick Menu
1 (1)
36.4 kW
Main Menu
1 (1)
24.4 kW
Alarm Log
1.3
1.2
2
®
is a registered Danfoss trademark
Quick Main
Menu Menu
Function
Press to show operational information.
•
In Auto mode, press and hold to toggle
between status readout displays
•
Press repeatedly to scroll through each
status display.
•
▲
Press and hold [Status] plus [
adjust the display brightness.
•
The symbol in the upper right corner of the
display shows the direction of motor
rotation and which set-up is active. This is
not programmable.
Allows access to programming parameters for
initial set-up instructions and many detailed
application instructions.
•
Press to access Q2 Quick Setup for
sequenced instructions to program the basic
adjustable frequency drive set-up
•
Follow the sequence of parameters as
presented for the function set-up
Allows access to all programming parameters.
•
Press twice to access top level index.
•
Press once to return to the last location
accessed.
•
Press and hold to enter a parameter
number for direct access to that parameter.
Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the adjustable frequency
drive before it entered the alarm mode,
select the alarm number using the
navigation keys and press [OK].
Alarm
Log
▼
] or [ ] to
