How to Programme

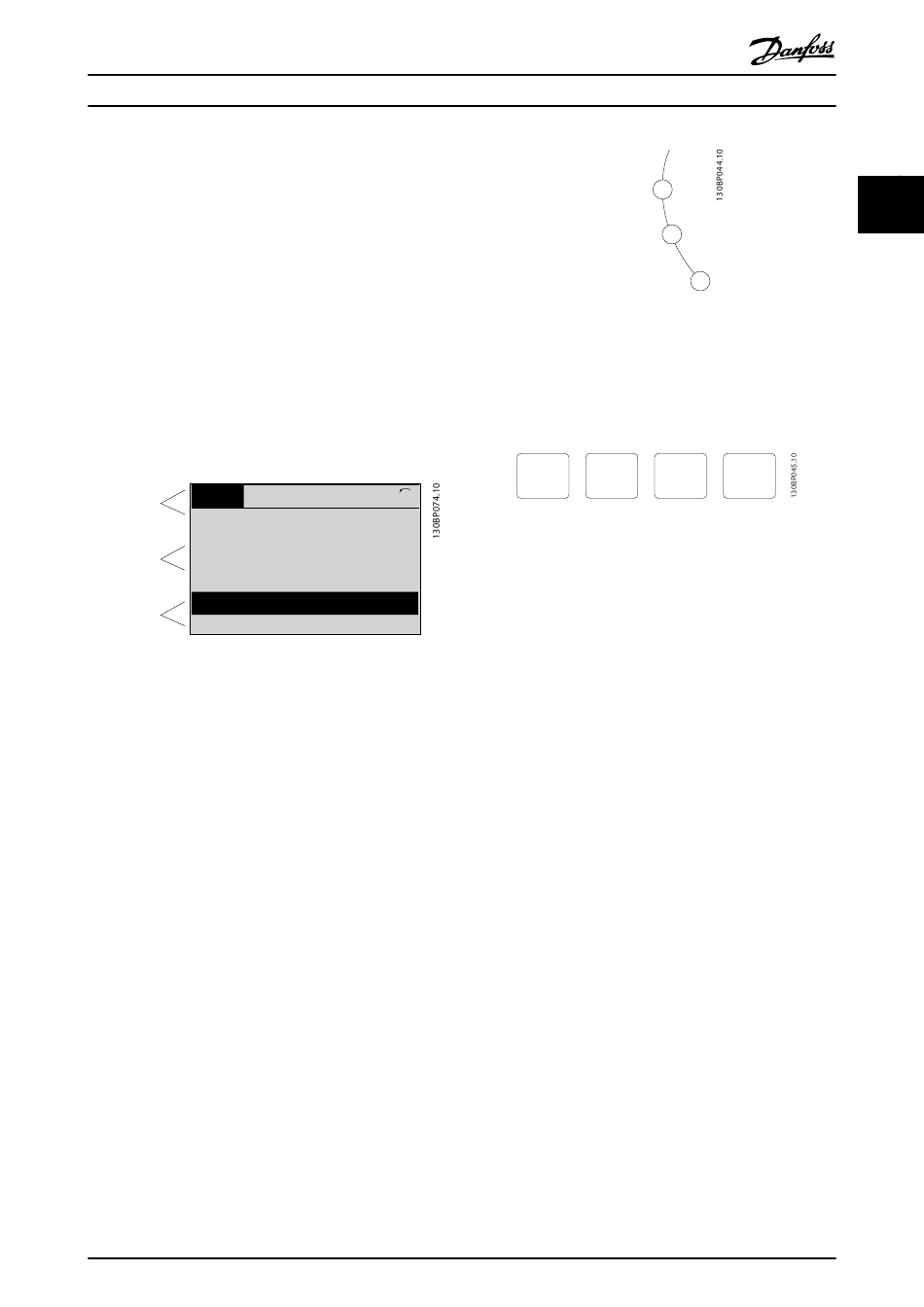

2.2.1 The LCP-Display

The LCP-display has back light and a total of 6 alpha-
numeric lines. The display lines show the direction of
rotation (arrow), the chosen set-up as well as the
programming set-up. The display is divided into 3 sections.
Top section shows up to 2 measurements in normal
operating status.
The top line in the Middle section shows up to 5
measurements with related unit, regardless of status
(except in the case of alarm/warning).
Bottom section always shows the state of the frequency
converter in Status mode.
Status
Top section
43 RPM
Middle section
! Pwr.card temp (W29)
Bottom section
Auto Remote Running
Illustration 2.2
The Active set-up (selected as the Active Set-up in
0-10 Active Set-up) is shown. When programming another
set-up than the Active Set-up, the number of the
programmed set-up appears to the right.
Display Contrast Adjustment
▲
Press [Status] and [ ] for darker display
▼
Press [Status] and [ ] for brighter display
Most parameter set-ups can be changed immediately via
the LCP, unless a password has been created via 0-60 Main
Menu Password or via 0-65 Personal Menu Password.
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on
the LCP.
The ON LED is activated when the frequency converter
receives mains voltage or via a DC bus terminal or 24 V
external supply. At the same time, the back light is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
®
VLT AQUA Drive Programming Guide
! 1(1)
5.44 A 25.3kW
1.4 Hz
2.9%
®
MG20O602 - VLT is a registered Danfoss trademark
On
Warn.
Alarm
Illustration 2.3
LCP Keys
The control keys are divided into functions. The keys
below the display and indicator lamps are used for
parameter set-up, including choice of display indication
during normal operation:
Quick
Status
Menu
Illustration 2.4
[Status] indicates the status of the frequency converter
and/or the motor. Choose between 3 different readouts by
pressing [Status]: 5 line readouts, 4 line readouts or Smart
Logic Control.
Press [Status] to select the display mode or for changing
back to Display mode from either the Quick Menu mode,
the Main Menu mode or Alarm mode. Also press [Status]
to toggle single or double read-out mode.
[Quick Menu]
Allows quick set-up of the frequency converter. The most
common functions can be programmed here.
The [Quick Menu] consists of:
- Q1: My Personal Menu
- Q2: Quick Setup
- Q3: Function Setups
- Q5: Changes Made
- Q6: Loggings
The Function Set-up provides quick and easy access to all
parameters required for the majority of water and
wastewater applications including variable torque, constant
torque, pumps, dosing pumps, well pumps, booster
pumps, mixer pumps, aeration blowers and other pump
and fan applications. Amongst other features it also
includes parameters for selecting which variables to display
on the LCP, digital preset speeds, scaling of analog
references, closed loop single zone and multi-zone
applications and specific functions related to water and
wastewater applications.
The Quick Menu parameters can be accessed immediately
unless a password has been created via 0-60 Main Menu
Main Alarm
Menu Log
