Operation
Cleaning / replacing the air filters
Let washed filters / filter mats dry well before
putting them back.
Do not wring, bend or press them hard.
Do not let them dry in the sunshine.

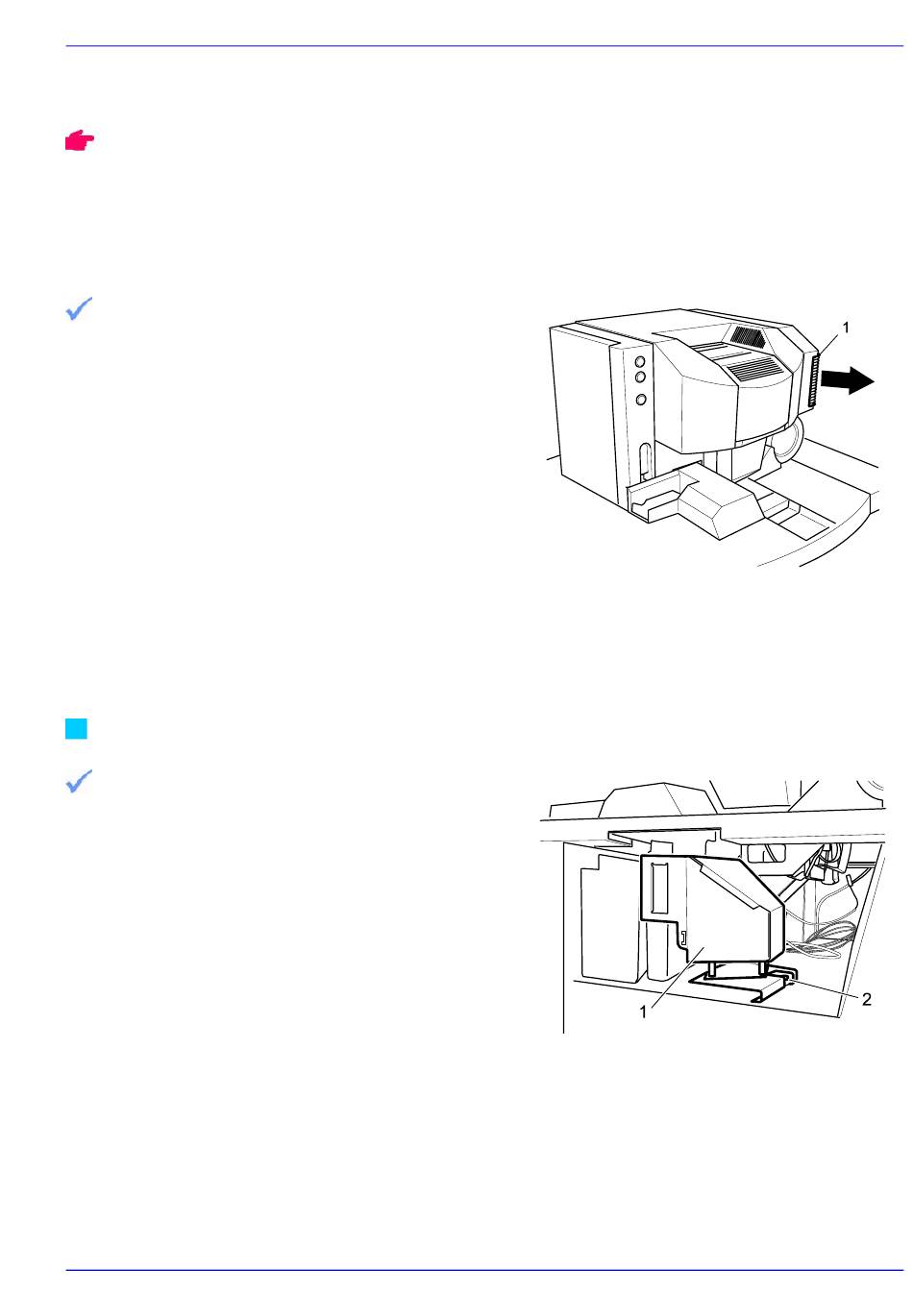

Lamphouse
− Take the venting grid (1) on the left edge in
the middle and push it out, open the grid as
far as possible.
− Remove filters that are not very dirty, blow
them out with compressed air or wash them
in water.
− Replace very dirty filters.
(Order no. CM+7.8061.LHL4.0)
− Mind the correct position of the filter mat when
putting back the filters:
− Chamfered side pointing to the front/up
− Soft side out
− Close the venting grid and engage it.
CCD fan
Air is sucked in through the film chute and cools
the electronics via the CCD fan (1).
− Unscrew the knurled screw (2).
− Remove the cover.
− Replace the filter.
(Order no. CM+9.8061.FEL2.0)
− Close the cover.
AGFA d-lab.3
1 CCD fan
2 Knurled screw
2003-06-01 /PN 9008
Maintenance
dlab002
dlabr198
8.21
