Operation

Paper Jam between the Lane Distributor LD and the Sheet Transfer ST

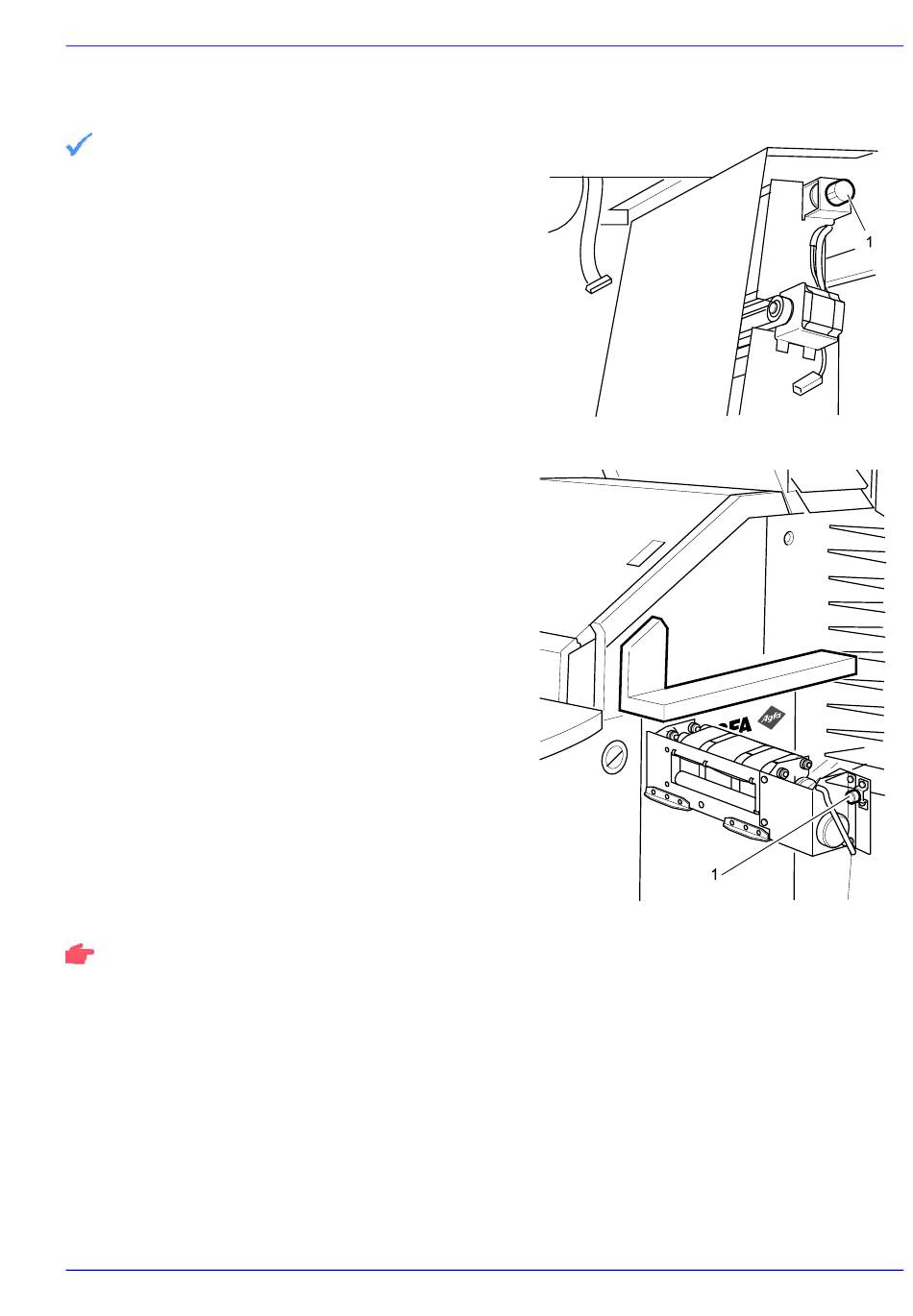

− Open the RH Printer door
− Open the locking (fastening screw) and pull
out the LD towards you
− Turn the handwheel (1) to advance the sheet
into the ST: approx. 10 turns
− Remove the cover
− Slacken the screw (1)
− Pull out the ST
− Remove the paper
The sheet is damaged when it is pulled out (torn,
squeezed). Mechanical damages cannot be ex-
cluded.
