Overview
Printer

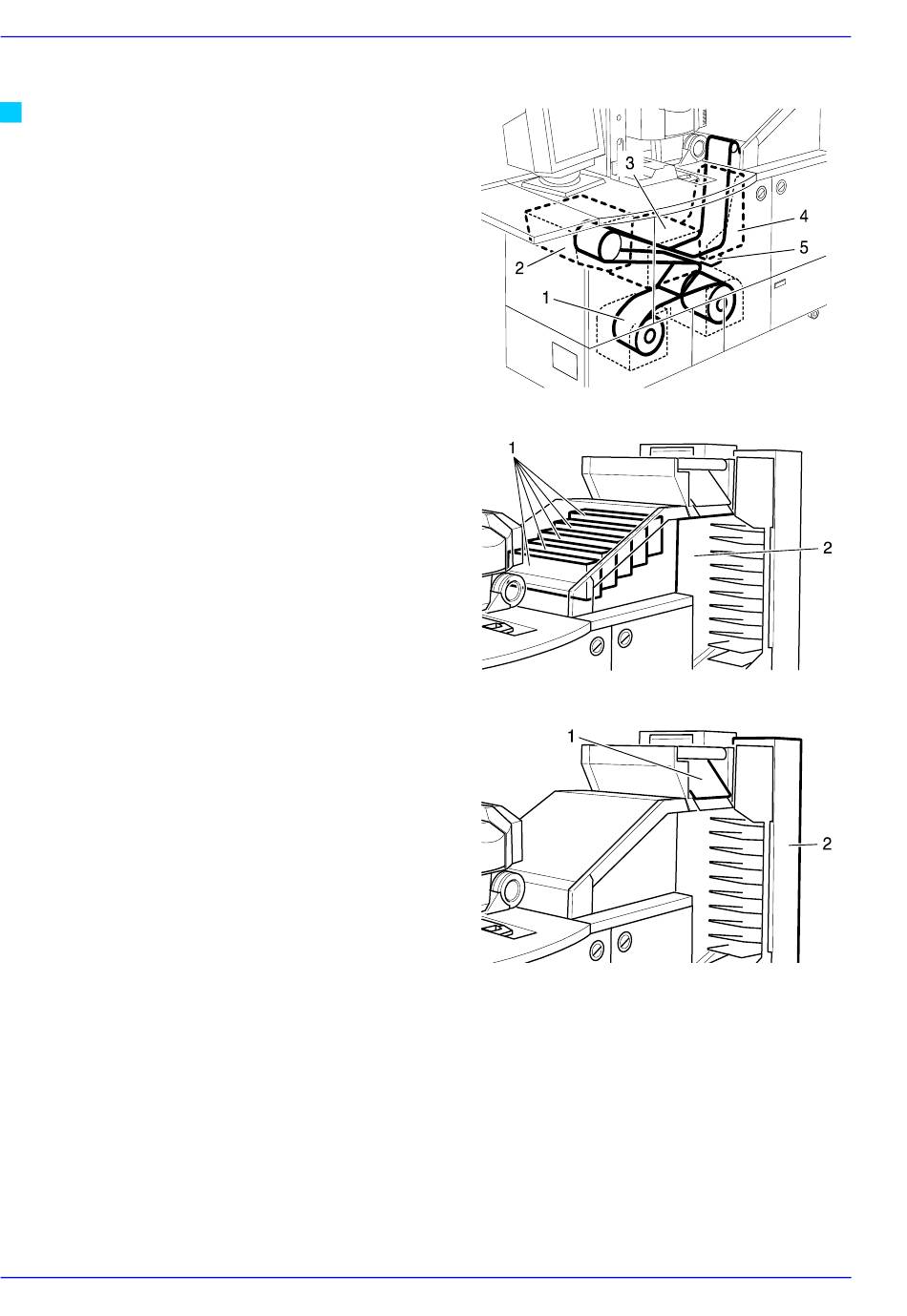

The cut paper (1) is transported to the print
engine (2), exposed by the laser beam and
advanced through the transport unit (3) up to the
lane distributor (4). There the back print (5) is
applied.
The lane distributor transports the prints into the
Paper Processor.
Paper Processor
The exposed paper runs through the processing
solutions (1) – developer (1 x DEV), bleach-fix
(1 x BX), stabilizer (4 x STB) – and then through
the dryer (2). The dryer consists of two parts, the
Infrared predryer followed by the hot air dryer.
Sorter
After drying, the prints exit via the print chute (1)
into the sorter (2) where they are sorted by orders
and stacked in buckets.
Special cases:
− The sorter switches to the next bucket without
order end if an order exceeds the capacity of
one bucket (max. 40 prints).
− Splices in the paper rolls are cut separately and
the respective pieces of paper are deposited in
the print order stack.
2.4
2003-06-01 /PN 9008
Operation
dlabr184
dlabr182
dlabr183
AGFA d-lab.3
