Coding the paper magazines
The paper magazine is coded for the paper
width (1-4) and the surface (5-6) in use.

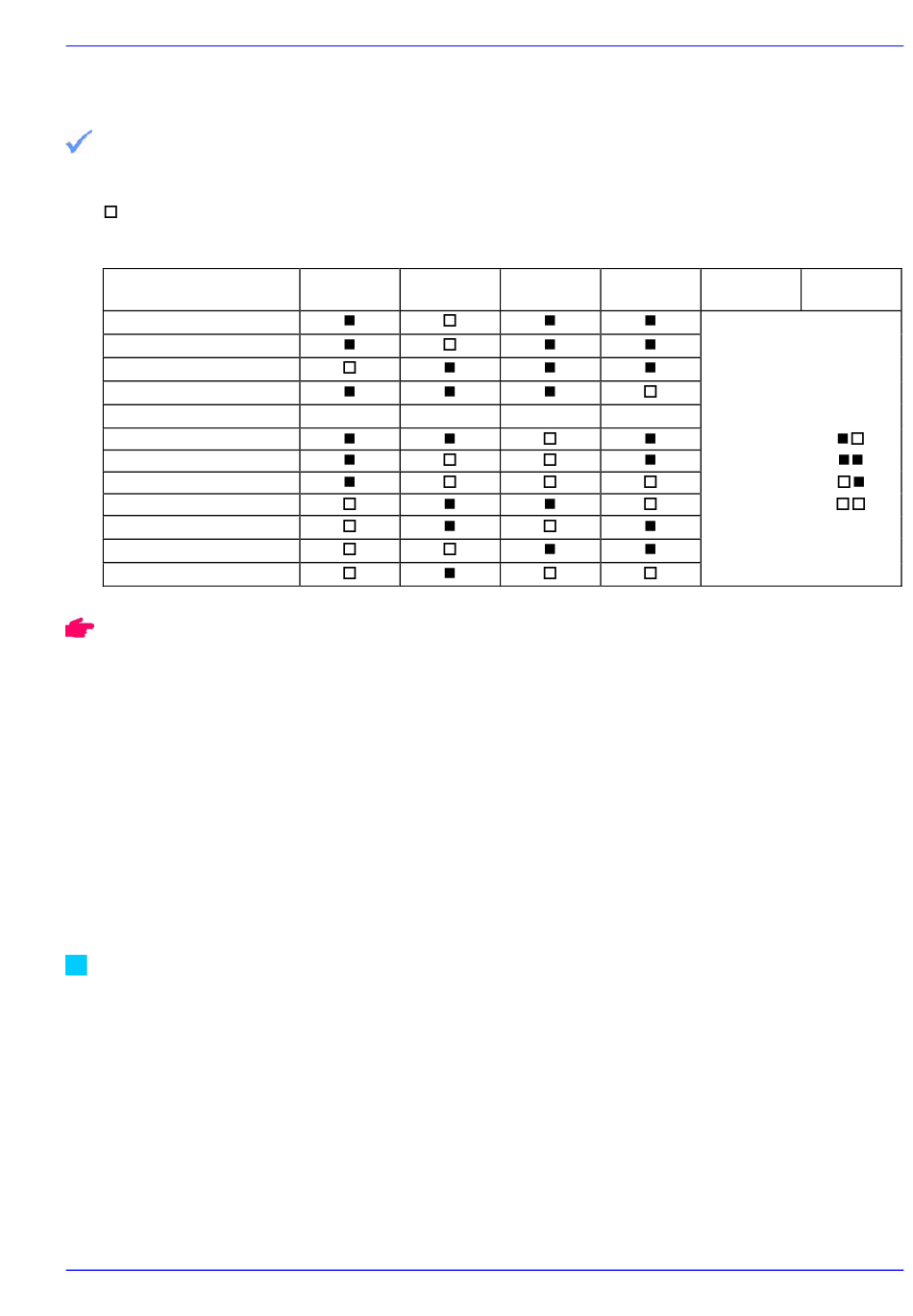

Meaning of the coding:
Slide closed
■ Slide open
PATTERN
PAPER SIZE
3.25 inch
(82 mm)
3.50 inch
(89 mm)
3.75 inch
(95 mm)
4.00 inch (102 mm)
4.50 inch (114 mm)
4.75 inch (120 mm)
5.00 inch (127 mm)
6.00 inch (152 mm)
6.50 inch (165 mm)
7.00 inch (178 mm)
8.00 inch (203 mm)
8.25 inch (210 mm)
* Switch positions
If the paper width 114 mm is to be added, the
magazine code of another paper width must be
used since only 16 different combinations are
possible altogether.
Example: 82 mm.
In this case the width 82 mm can no longer be
used.
The table shows the Agfa standard. If required, a
different allocation of the switches to paper widths
and surfaces can be defined.
Every switch combination may only be used once!
(Also see Paper configurations)
Once the magazine is pushed in, the machine
automatically recognizes the paper width and the
paper surface, and offers the corresponding sizes
in the print menus for selection.
AGFA d-lab.3
1
2
*
*
3
4
*
*
GLOSSY
MATTE
CUSTOM1
CUSTOM2
