AGFA DRYSTAR 5302 Technical Documentation Manual
  1. Manuals
  2. Brands
  3. AGFA Manuals
  4. Printer
  5. Drystar 5302
  6. Technical documentation manual

AGFA DRYSTAR 5302 Technical Documentation Manual

Hide thumbs Also See for DRYSTAR 5302:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual

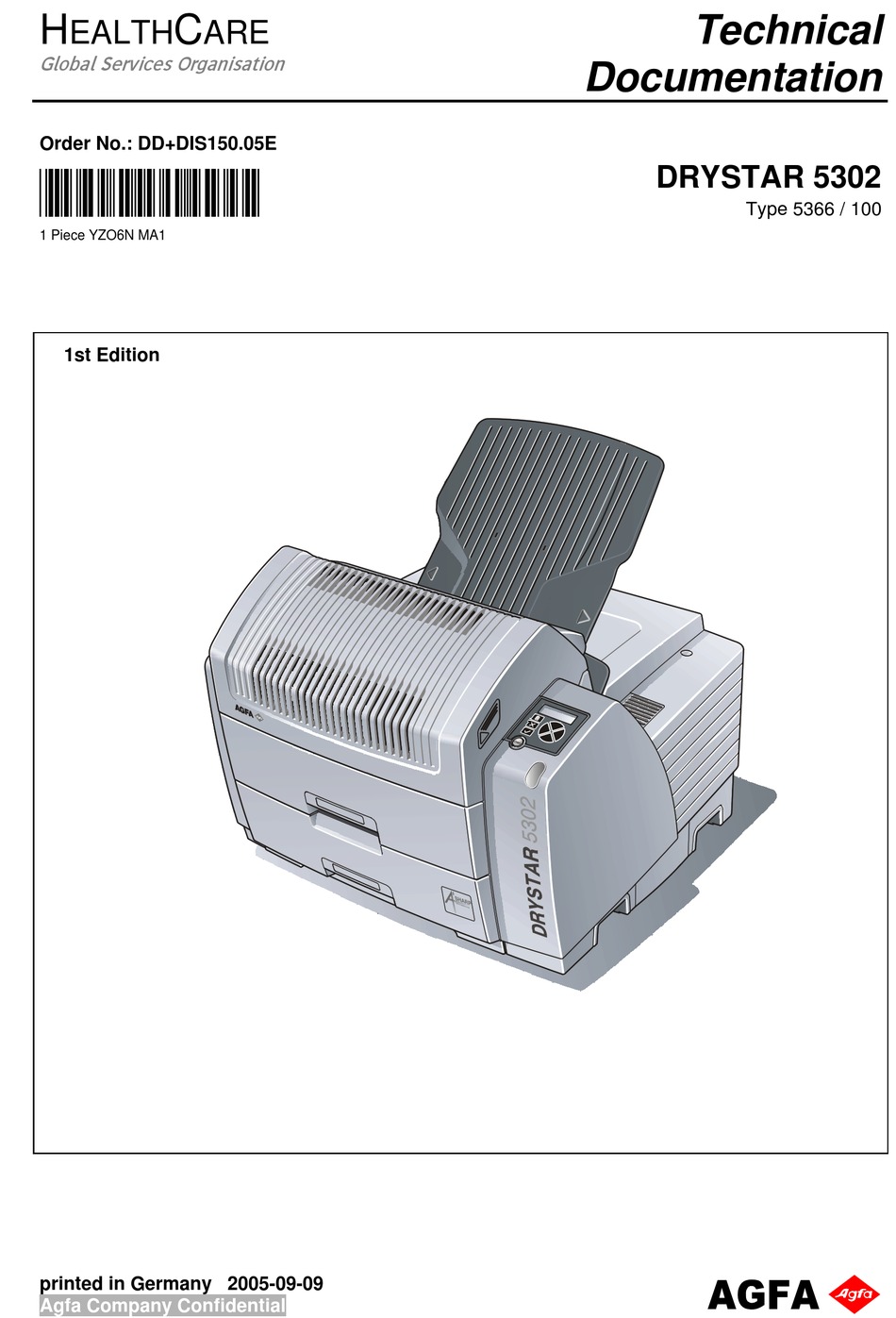

H
C
Technical
EALTH
ARE
Global Services Organisation
Documentation
Order No.: DD+DIS150.05E
DRYSTAR 5302
*1YZO6N1*
Type 5366 / 100
1 Piece YZO6N MA1
1st Edition
printed in Germany 2005-09-09
Agfa Company Confidential

Advertisement

Table of Contents
loading

Related Manuals for AGFA DRYSTAR 5302

Summary of Contents for AGFA DRYSTAR 5302

  • Page 1 Technical EALTH Global Services Organisation Documentation Order No.: DD+DIS150.05E DRYSTAR 5302 *1YZO6N1* Type 5366 / 100 1 Piece YZO6N MA1 1st Edition printed in Germany 2005-09-09 Agfa Company Confidential...
  • Page 2 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 3 Technical EALTH Global Services Organisation Documentation Order No.: DD+DIS150.05E DRYSTAR 5302 *1YZO6N1* Type 5366/100 1 Piece YZO6N MA1 Edition To order spare parts and Tel.: xx49 - (0)89 - 6207 – 3760 spare part assortments: Fax.: xx49 - (0)89 - 6207 – 7388 To order documentation: Tel.:...

  • Page 4: Table Of Contents

    Pictograms and conventions for this documentation OVERVIEW This documentation uses certain conventions (pictograms, way of writing) for better Order List understanding and faster locating of the required information. Controls, Connections and Set Up Procedures Explanation of the pictograms Functional Description High voltage ! Waiting time Repair and Service...
  • Page 5 This Generic Safety Directions document comprises the general safety relevant information including relevant environmental and occupational safety instructions for the Service Engineer. It is valid for all Agfa HealthCare Imaging Products and part of each Service Documentation as well as Installation Planning document.
  • Page 6 Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MEDNET GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.

  • Page 7: Accessories

    SAFETY DIRECTIONS FOR REMOTE SERVICE ACTIVITIES ......26 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 3 of 07-2009 Agfa Company Confidential...
  • Page 8 ERASING PROTECTED HEALTH INFORMATION (PHI) ........28 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 4 of 07-2009 Agfa Company Confidential...

  • Page 9: Disclaimer

    Fitters, engineers and other persons who are not employed by or otherwise directly affiliated with or authorized by Agfa HealthCare or one of its affiliates are directed to contact one of the local offices of Agfa HealthCare or one of its affiliates before attempting installation or service procedures.

  • Page 10: Used Icons

    Is additional information without influence on the action or step! DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 6 of 07-2009 Agfa Company Confidential...

  • Page 11: Labels

    C&W _005.cdr DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 7 of 07-2009 Agfa Company Confidential...

  • Page 12: System Labels Concerning Laser Radiation

    CLASS 2 LASER PRODUCT conditions. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 8 of 07-2009 Agfa Company Confidential...
  • Page 13 CLASS 4 LASER PRODUCT DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 9 of 07-2009 Agfa Company Confidential...

  • Page 14: Product Complaints

    Agfa HealthCare must be notified immediately by telephone, fax or written correspondence to the following address: Agfa Service Support - local support addresses and phone numbers listed on: www.agfa.com Agfa – Gevaert N.V.

  • Page 15: Intended Use

    DD+DIS238.06E Generic Safety Directions Intended Use This Agfa HealthCare product should only be operated in a hospital or clinical radiological environment by qualified staff. It must only be operated according to its specifications and its intended use. Any operation not corresponding to the specifications or intended use may result in hazards, which in turn may lead to serious injuries or fatal accidents (for example electric shocks).

  • Page 16: Environmental And Occupational Safety Instructions

    Is obligated to adhere strictly to regulations and instructions. • Shall familiarise himself or herself with the provisions of the Agfa Healthcare Health, Safety and Environment Policy and any specific rules or procedures relating to occupational safety at work and the protection of the environment.

  • Page 17: Connections To Other Equipment

    Changes or additions to the equipment must only be carried out by persons authorized to do so by Agfa HealthCare. Such changes must comply with best engineering practice and all applicable laws and regulations that have the force of law within the jurisdiction of the hospital.

  • Page 18: Accessories And Spare Parts

    • Use only tools and measuring instruments which are suitable for the procedure. • Only approved Agfa HealthCare accessories must be used. For a list of compatible accessories contact your local Agfa HealthCare organization or www.agfa.com. Compliance Directive for HealthCare Imaging Products:...
  • Page 19 It is a multilateral agreement among participating countries and certification organizations. Agfa has produced a CB test report and claims national certification in all other member countries of the CB Scheme.
  • Page 20 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 16 of 07-2009 Agfa Company Confidential...

  • Page 21: Safety Directions For Operation

    Accessibility of the mains power switch: CAUTION: Do not obstruct the mains power switch. Position the Agfa HealthCare product so that it is possible to disconnect the mains power connection. • Under certain conditions the Agfa HealthCare product will show a display containing a message.

  • Page 22: Radiation Protection

    Disconnect the power supply from the equipment prior to cleaning the equipment. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 18 of 07-2009 Agfa Company Confidential...

  • Page 23: General Safety Directions For Service Activities

    If "Loctite" has to be used to secure screws, this is stated in the text. • Any Agfa service PC or tool which is to be connected via RS232, RJ45, USB or other interface to an Agfa device must not be connected to the mains but must be operated on its internal battery or indirect supply (low voltage).

  • Page 24: Safety Directions For Installation Planning Activities

    Electrical device. Shock possible. INSTRUCTION: • Do not position Agfa EQUIPMENT so it is difficult to operate the disconnection device when an APPLIANCE COUPLER or separable plug is used as isolation. • Local and International wiring regulations must be observed. Check all supplies and voltages, currents, trips and fuses with the Hospital facilities department or their engineers.
  • Page 25 Hospital management is responsible for the position, location and fixing of all equipment. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 21 of 07-2009 Agfa Company Confidential...

  • Page 26: Safety Directions For Installation Activities

    If not otherwise stated, installation and configuration is performed by Agfa HealthCare trained personnel. • If damage of the package is visible from the outside contact your local AGFA representative. • Apart from wearing the required protective clothing, e.g. safety boots and gloves, care must be taken that heavy loads are correctly lifted/carried to avoid injury.

  • Page 27: Safety Directions For Maintenance And Repair Activities

    Safety Directions for Maintenance and Repair Activities • This Technical Documentation identifies the parts on which preventive inspection and maintenance shall be performed by Agfa HealthCare service personnel, including the periods to be applied. • In general the device has to be switched off during service activities. Exception: If the device is switched on to perform tests pay particular attention to any hazards due to moving and rotating parts.
  • Page 28 NOTE: On MedNet, GSO Library path "General Info => Agfa HealthCare => Publications => Service Manual" a form “IEC 62353:2007 Test Documentation” for CR Digitizers is available, to be handed out to the responsible organization...
  • Page 29 When cleaning optical elements follow the service manual precisely. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 25 of 07-2009 Agfa Company Confidential...

  • Page 30: Safety Directions For Remote Service Activities

    DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Generic Safety Directions for HealthCare Imaging Products Page 26 of 07-2009 Agfa Company Confidential...

  • Page 31: Generic Safety Directions For Healthcare Imaging Products

    The Recycling Passports are meant to be used as information for waste treatment partners and companies that want to recycle end-of-life Agfa equipment. To get a copy of the required Agfa HealthCare Recycling Passport please contact your local Sales organization.

  • Page 32: Waste Disposal

    For more detailed information about take-back and recycling of this product, please contact your local Agfa service organization. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
  • Page 33 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / I 2005-09-09 (Type 5366/100)

  • Page 35: General Safety Instructions

    ⇒ The DRYSTAR 5302 is suitable for continuous operation. ⇒ The DRYSTAR 5302 enables or helps in the diagnosis of a patient. When operating or maintaining the DRYSTAR 5302 always observe the following safety guidelines: • Have electrical or mechanical defects repaired by skilled personnel only! •...
  • Page 36 Agfa recommends to have DRYSTAR film waste hauled away by a licensed company. After its life span, do not dispose of the DRYSTAR 5302 without consideration of local waste disposal regulations. Please consult your local service organization.

  • Page 37: Installation Checklist

    • to give an overview of all steps, that are required for the installation of the printer; • to provide a reference to the corresponding section of the "Drystar 5302 Plug & Play Installation Manual" (abbreviated: P&P) and "Controls, Connections and Set Up Procedure" section where the topics are further explained.
  • Page 38 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 1 / 4 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 39: Printer Installation Wizard

    ROUTER IP-ADDRESS A more detailed description of the CALLED AE_TITLE Hostname printer Installation Wizard is available Domain name in the Drystar 5302 Reference Daily used modality name Brand Manual in section 'Using the Modality Type installation wizard'. CALLING AE_TITLE('modality name')
  • Page 40 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 1 / 6 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 41 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 7 2005-09-09 (Type 5366/100)

  • Page 42: Printer Settings

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 1 / 8 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 43 DD+DIS150.05E Controls, Connections and Set Up Procedures Example browser Welcome to this screen: DryStar 5302 printer Key-Operator - Change Image quality settings Default film calibration Macbeth TR924 Default Densitometer Gretag X-Rite 301 X-Rite 310 Accept changes Discard changes Reset Values...

  • Page 44: Default Densitometer

    The default densitometer menu is accessible via key-operator menu on the keypad and key-operator menu via browser. Example browser Welcome to this screen: DryStar 5302 printer Key-Operator - Change Image quality settings Default film calibration Macbeth TR924 Default Densitometer Gretag...

  • Page 45: Film View

    Normal The film view menu is accessible via key-operator menu on the keypad and key-operator menu via browser. Example browser Welcome to this screen: DryStar 5302 printer Key-Operator - Change input tray settings Upper input tray Normal Film view Back 14x17"...

  • Page 46: Beep On Empty Tray

    Audible alarm on - beep 5 times The 'beep on empty tray' menu is accessible via key-operator menu on the keypad and key-operator menu via browser. Example browser Welcome to this screen: DryStar 5302 printer Key-Operator - Change general settings Date: 2004 Oct. Time:...

  • Page 47: Rf Tag

    The 'RF-tag' menu is accessible via service command session via browser only. Example browser Welcome to this screen: DryStar 5302 printer Service - Change input tray settings If RF-tag is missing or malfunctioning Printing with Dmax=2.00 Printing not possible Upper input tray...

  • Page 48: Site Data

    Note: It is mandatory to fill in site data. Otherwise after each switch on / reboot of the printer a hint is displayed to enter the site data. Example browser Welcome to this screen: DryStar 5302 printer Key-Operator - Change general settings Date: Oct. 2004...

  • Page 49: Film Calibration

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 15 2005-09-09 (Type 5366/100)

  • Page 50: Printer - Modality Connection

    Browser pages Modality set-up Let the modality be set-up ate the modality. Tell the modality service engineer following printer parameters • Printer Type (Agfa Drystar 5302) • IP address • AE-title • Available film formats Printed copies of this document are not controlled.

  • Page 51: Logical Printers Set-Up

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 17 2005-09-09 (Type 5366/100)

  • Page 52: Printing Of Diagnostic And / Or Test Images

    DSA images shall be printed with linear taste LUT. Problem: The workstation at the PACS system has one AE title. The Drystar 5302 does not recognize, for which type of modality (CR or CT) the user wants to print. Solution: •...

  • Page 53: Image Adjustments

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 19 2005-09-09 (Type 5366/100)

  • Page 54: Image Adjustment At The Modality

    Drystar 4500 (M), Drystar 5500 or Drystar 5300 only, this can also be used for Drystar 5302. The Drystar 5302 behavior is with some exceptions the same as the behavior of the other printers mentioned above. Main differences: •...
  • Page 55 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 21 2005-09-09 (Type 5366/100)
  • Page 56 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 1 / 22 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 57: Basic Image Adjustment At The Printer Via Key-Operator Menu

    Figure 18 • Dmax 3.20 Example browser screen: Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Key-Operator - Change Image quality settings Key-Operator - Change Image quality settings Select kanamori like value: Daily used name CT2_ARC...
  • Page 58 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 1 / 24 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 59 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 25 2005-09-09 (Type 5366/100)

  • Page 60: Alternative: Image Settings Via Dicom Host Profile

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 1 / 26 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 61: Acceptance Test

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 27 2005-09-09 (Type 5366/100)

  • Page 62: Completion Of Installation

    Refer to User or Reference Manual ..Switching on the printer: Warm up time 7 min. User manual: "Switching on the Drystar 5302" Switching off the printer. It can take up to 20 User Manual: "Switching off secs. until the printer switches off the Drystar 5302"...

  • Page 63: Backup Of Printer Settings

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 1 / 29 2005-09-09 (Type 5366/100)
  • Page 64 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 65 06-2009 Updated technical data in table, where different Drystar printers are compared. See section 2.1. • Updated table with detailed comparison of Drystar 5302 with Drystar Axys: Added new functions of software 2.0.0_C2. See section 2.2. • Updated table with overview of calibrations.

  • Page 66: Order List

    Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MEDNET GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.
  • Page 67 LIST OF CONTENTS INTRODUCTION ........................4 COMPARISON TO OTHER AGFA B&W PRINTERS ..............5 Technical Data compared to Drystar 5300 and Drystar 5503 ..........5 Detailed Comparison Drystar 5302 – Drystar Axys ..............6 FILM RUN..........................7 Backside Printing Recognition ....................13 Left / Right Shift Print Algorithm....................14 CALIBRATIONS ........................16...

  • Page 68: Introduction

    DX-S Printer Ultrasound Service Host Figure 1: Typical network installation of a Drystar 5302 DOCUMENT CONTROL NOTE: The controlled versi on of this document resides on MedNet. Any printed copy of this document is uncontrolled Edition 1, Revision 1 DRYSTAR 5302...

  • Page 69: Comparison To Other Agfa B&W Printers

    DD+DIS150.05E Functional Description Comparison to other AGFA B&W Printers Technical Data compared to Drystar 5300 and Drystar 5503 Technical Drystar 5302 Drystar 5300 Drystar 5503 Specification (SW Rel. 2.0) (SW Rel. 2.1) (SW Rel. 6.0) 90 kg 55 kg 193 kg Weight 75/h (14x17")

  • Page 70: Detailed Comparison Drystar 5302 - Drystar Axys

    DD+DIS150.05E Functional Description Detailed Comparison Drystar 5302 – Drystar Axys The design of the Drystar Axys is based on the Drystar 5302 printer. This section shows the differences in detail. Main hardware differences: Hardware Drystar 5302 Drystar Axys Reason for Difference...

  • Page 71: Film Run

    Figure 3: Pump & Valves Module DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 7 06-2009 Type 5366/100 Agfa Company Confidential...
  • Page 72 Figure 5: Gear Box Module DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 8 06-2009 Type 5366/100 Agfa Company Confidentia...
  • Page 73 Figure 7: Cam drive DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 9 06-2009 Type 5366/100 Agfa Company Confidential...
  • Page 74 Figure 9: Drum Drive DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 10 06-2009 Type 5366/100 Agfa Company Confidentia...
  • Page 75 Figure 11: Print Drum DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 11 06-2009 Type 5366/100 Agfa Company Confidential...
  • Page 76 Figure 13: Output Module DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 12 06-2009 Type 5366/100 Agfa Company Confidentia...

  • Page 77: Backside Printing Recognition

    Figure 14: Backside printing recognition DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 13 06-2009 Type 5366/100 Agfa Company Confidential...

  • Page 78: Left / Right Shift Print Algorithm

    The clear left and right borders are influenced by this shift mechanism but they are within specification. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 14 06-2009 Type 5366/100 Agfa Company Confidentia...
  • Page 79 Figure 16: Left / right shift print algorithm DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 15 06-2009 Type 5366/100...

  • Page 80: Calibrations

    DD+DIS150.05E Functional Description Calibrations The following table lists the different Drystar 5302 calibrations: Characteristic TH profile Film Smart Profile Compliance Film Film printed To determine new To reduce vertical To measure the film Equalization of TH Make film calibration Purpose of the...

  • Page 81: Modules

    This section lists the different printer modules (= spare parts). Figure 17: Printer Modules DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chap ter 2 / 17 06-2009 Type 5366/100...
  • Page 82 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 18 06-2009 Type 5366/100 Agfa Company Confidentia...

  • Page 83: Hardware

    RS232 service port DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 19 06-2009 Type 5366/100 Agfa Company Confidential...
  • Page 84 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 20 06-2009 Type 5366/100 Agfa Company Confidentia...

  • Page 85: Modules And E-Labels

    Figure 19: Example for E-Label at Power Supply DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 21 06-2009 Type 5366/100...
  • Page 86 Figure 20: Example for E-Label content DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 22 06-2009 Type 5366/100 Agfa Company Confidentia...

  • Page 87: Diagnostic Software

    Operating System 536602aa.cdr Figure 21 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 23 06-2009 Type 5366/100 Agfa Company Confidential...
  • Page 88 536602af.cdr Figure 22 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 24 06-2009 Type 5366/100 Agfa Company Confidentia...

  • Page 89: Thermal Model

    Parameter X Figure 23 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 2 / 25 06-2009 Type 5366/100 Agfa Company Confidential...
  • Page 90 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 91 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 3.1 / I 2005-09-09 (Type 5366/100)

  • Page 93: Machine Specific Safety Equipment, Precautions And Hints

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 3.1 / 1 2005-09-09 (Type 5366/100)

  • Page 94: Safety Switch

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.1 / 2 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 95: Guidelines Regarding Safety During Service Work

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 3.1 / 3 2005-09-09 (Type 5366/100)

  • Page 96: Safety Guidelines Regarding Service Pc Connection

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.1 / 4 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 97: Safety Check Upon Completion Of The Repair Work

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 3.1 / 5 2005-09-09 (Type 5366/100)

  • Page 98: Electrical Check

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.1 / 6 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 99: Electrical Check According To National Regulations

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 3.1 / 7 2005-09-09 (Type 5366/100)
  • Page 100 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 101 "Error - System Failure" state..............52 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/I 2005-09-09 (Type 5366/100)

  • Page 103: Machine Specific Tools

    D200-2. Other densitometers are not supported. Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/1 2005-09-09 (Type 5366/100)

  • Page 104: Optional Tools

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/2 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 105: Minimum Configuration Of The Service Pc

    Agfa Intranet – IT helpdesk - GICS Intranet - Infrastructure Standards - Agfa standards for PCs, laptops, printers, organizers, mobiles,... For employees not directly working at Agfa - and so not getting the service PC directly from GICS, we recommend to use the minimum configuration of the Service PC mentioned above as a guideline regarding PC hardware and software.

  • Page 106: Software Tools

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/4 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 107: Infocounter

    (1) The Key-operator menu is also available via the Web pages NOTES (username: drystar, password: 5302). (2) For a complete description of the Key-operator functions, please refer to the DRYSTAR 5302 Reference manual. An overview of all key-operator menus is available in section 3.7, ‘Software menus, Settings’. Infocounter...
  • Page 108 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/6 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 109: Infocounter Analysis Via Printers Infocounters Report

    Repair and Service DD+DIS150.05E Machine specific tools, software tools and auxiliary means Welcome to this DryStar 5302 printer SERVICE TOOLS HOME General information List of errors Printer Infocounters report DICOM, LPD and HIPAA report QA Report Page Software versions Remote sessions...

  • Page 110: Infocounter Analysis Via Service Command Session

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/8 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 111 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/9 2005-09-09 (Type 5366/100)

  • Page 112: Test Images

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/10 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 113: Testimage Sti1

    Figure 6 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/11 2005-09-09 (Type 5366/100)
  • Page 114 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/12 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 115: Testimage Sti2

    Figure 8 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/13 2005-09-09 (Type 5366/100)

  • Page 116: Testimage Smpte

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/14 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 117 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/15 2005-09-09 (Type 5366/100)

  • Page 118: Testimage Medical_Image

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/16 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 119: Testimage Lincheck

    CDM is measuring. Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/17 2005-09-09 (Type 5366/100)

  • Page 120: Show Error Codes

    Possibility 2: View all error codes: (1) In the browser pages select menu 'Service Engineer Tools - List of errors’ Web Pages The web pages provide for following menus: Welcome to this DryStar 5302 printer Operator tools Key-operator tools Service engineer tools Specialist tools...

  • Page 121: Operator Tools

    2.5.5 for two examples about the usage of the webpages Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/19 2005-09-09 (Type 5366/100)
  • Page 122 Repair and Service Machine specific tools, software tools and auxiliary means DD+DIS150.05E 2.5.1 Operator Tools Welcome to this DryStar 5302 printer Operator - Printer Status HOME Id Patient Name Host Created On Sent Status Priority Printing Normal CT_A 16-02-2005 Printing...

  • Page 123: Key-Operator Tools

    Repair and Service DD+DIS150.05E Machine specific tools, software tools and auxiliary means 2.5.2 Key-Operator Tools Welcome to this DryStar 5302 printer KEY OPERATOR TOOLS HOME Remote sessions Enter key-operator command session Release remote command session Figure 16 Main Purpose Provides same functions like Key-Operator...

  • Page 124: Service Engineer Tools

    Repair and Service Machine specific tools, software tools and auxiliary means DD+DIS150.05E 2.5.3 Service Engineer Tools Welcome to this DryStar 5302 printer SERVICE TOOLS HOME General information List of errors Printer Infocounters report DICOM, LPD and HIPAA report QA Report Page...
  • Page 125 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/23 2005-09-09 (Type 5366/100)
  • Page 126 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/24 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 127: Connection To The Web Pages

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/25 2005-09-09 (Type 5366/100)
  • Page 128 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/26 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 129 Figure 24 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/27 2005-09-09 (Type 5366/100)
  • Page 130 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/28 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 131: Usage Of The Web Pages

    Adapt the taste LUT for a certain host by creating a 2.5.5.1 host specific DICOM host profile Adapt the annotations for all DICOM inputs 2.5.5.2 Welcome to this DryStar 5302 printer Operator tools Key-operator tools Service engineer tools Specialist tools Security Tools...
  • Page 132 Whenever the host with AE title ‘CTSCAN200’ sends a print job to the printer, the taste LUT shall be adapted to ‘Kanamori_like 200’. In the printer homepage select Welcome to this 'Service Engineer tools - Enter DryStar 5302 printer service command session' SERVICE TOOLS Enter username and password HOME General information Select ‘DICOM profile editor’...
  • Page 133 Figure 30 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/31 2005-09-09 (Type 5366/100)
  • Page 134 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/32 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 135 Figure 31 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/33 2005-09-09 (Type 5366/100)
  • Page 136 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/34 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 137 Joseph's Hospital..’ Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/35 2005-09-09 (Type 5366/100)
  • Page 138 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/36 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 139: Printer Logging

    (select all files) / 2 Infocounters report – To this computer Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/37 2005-09-09 (Type 5366/100)
  • Page 140 A session file is named e.g. DS5302_1052_SES_21OCT2005_09-55-48.ZIP, where the different figures represent following information: DS5302: Printer (Drystar 5302) 1052: Serial Number SES: Session File 21OCT2005: Current date 09-55-48: Current time HH-MM-SS Interesting for troubleshooting are following files within the SES files: •...

  • Page 141: Printer Bootup-Message

    Instead of the HyperTerminal following other programs can be recommended to connect to terminal level: • xt.exe is an AGFA program, which is part of the IMOS package. It can be started in a DOS box by typing ‘xt’ •...
  • Page 142 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/40 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 143 Figure 41 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/41 2005-09-09 (Type 5366/100)
  • Page 144 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/42 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 145: Advp

    Figure 45 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/43 2005-09-09 (Type 5366/100)

  • Page 146: Advp As Dicom Print Scu

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/44 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 147 'Start Controller'. Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/45 2005-09-09 (Type 5366/100)

  • Page 148: Advp As Communication Recorder

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/46 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 149 Recorder Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/47 2005-09-09 (Type 5366/100)
  • Page 150 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/48 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)

  • Page 151: Software Installation

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/49 2005-09-09 (Type 5366/100)

  • Page 152: Software Update Via Cf Card

    During file upload it is not checked, whether the software you are uploading is really software for Drystar 5302. Be sure to upload the correct ZIP file. The ZIP file is only available via MEDNET - GSO library - Hardcopy – Dry Imagers –...

  • Page 153: Emergency Sw Installation On A New, Empty Hard Drive

    Figure 53 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/51 2005-09-09 (Type 5366/100)

  • Page 154: Emergency Sw Installation On A Printer In "Error - System Failure" State

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.2/52 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 155 (default IP address 169.254.10.10) Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.2/53 2005-09-09 (Type 5366/100)
  • Page 156 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 157 ► Referenced Documents Document Title DD+DIS261.10E DRYSTAR 5302 SIB16: Software 2.1.0_C2 available DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 03-2011 printed in Germany...

  • Page 158: Maintenance

    Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MEDNET GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.
  • Page 159 ERROR CATALOGUE......................5 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 3 of 72 03-2011 Type 5366/100 Agfa Company Confidential...

  • Page 160: General Troubleshooting Procedure

    Figure 1 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 4 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 161 VILIS COOLING FAN DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 5 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 162 Tag reader DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 6 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 163 Part MOD01 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 7 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 164 Emergency sw install without preserving config DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 8 of 72 03-2011 Type 5366/100...
  • Page 165 Part MOD01 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 9 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 166 Replace filmpack DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 10 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 167 Perform lower tray calibration DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 11 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 168 Replace filmpack when filmcount runs out DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 12 of 72 03-2011 Type 5366/100...
  • Page 169 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 13 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 170 Remove upper input jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 14 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 171 Remove upper input jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 15 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 172 Part MOD03 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 16 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 173 Part MOD03 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 17 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 174 Part MOD03 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 18 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 175 Remove lower input jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 19 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 176 Remove lower input jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 20 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 177 Remove lower input jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 21 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 178 Part MOD04 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 22 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 179 Remove wrinkled film DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 23 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 180 Part MOD04 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 24 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 181 Part MOD04 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 25 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 182 Cure6 Replace DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 26 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 183 Part MOD05 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 27 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 184 Part MOD05 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 28 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 185 Connect connector P2 on TH DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 29 of 72 03-2011 Type 5366/100...
  • Page 186 Part MOD05 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 30 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 187 Part MOD05 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 31 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 188 Part MOD05 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 32 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 189 Remove film jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 33 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 190 Remove film jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 34 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 191 Part MOD06 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 35 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 192 Replace CDM module MOD06 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 36 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 193 Part MOD06 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 37 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 194 Part MOD06 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 38 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 195 Part MOD06 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 39 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 196 Part MOD07 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 40 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 197 Part MOD07 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 41 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 198 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 42 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 199 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 43 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 200 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 44 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 201 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 45 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 202 Part MOD09 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 46 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 203 Part MOD09 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 47 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 204 Call service DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 48 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 205 Defect CPU on MOD12 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 49 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 206 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 50 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 207 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 51 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 208 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 52 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 209 Part MOD08 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 53 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 210 Part MOD12 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 54 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 211 Part MOD12 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 55 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 212 Part MOD09 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 56 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 213 Cool down the PSU DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 57 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 214 Part MOD09 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 58 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 215 Part MOD10 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 59 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 216 Connect XS5 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 60 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 217 Remove jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 61 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 218 Part MOD13 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 62 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 219 Part MOD13 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 63 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 220 Remove internal jam DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 64 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 221 Part MOD14 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 65 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 222 Self resolving accident DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 66 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 223 Part MOD15 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 67 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 224 Part MOD15 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 68 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 225 Part MOD12 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 69 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 226 Part MOD17 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 70 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 227 Part MOD17 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 71 of 72 03-2011 Type 5366/100 Agfa Company Confidential...
  • Page 228 Check other active HC-codes to get detailed info DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.3 / 72 of 72 03-2011 Type 5366/100...
  • Page 229 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 08-2008 printed in Germany Document Node ID: 16179549 eq_03-3_troubleshooting_e_template_v05 Agfa Company Confidential Copyright © 2008 Agfa HealthCare N.V.
  • Page 230 Troubleshooting intentionally left blank DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.3 / 2 08-2008 Type 5366/100 Agfa Company Confidential...
  • Page 231 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.4 / I 2005-09-09 (Type 5366/100)

  • Page 233: Codings

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.4 / 1 2005-09-09 (Type 5366/100)

  • Page 234: Jumper Setting 73 Gb Hitachi Hard Disk

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.4 / 2 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 235: Fuses

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.4 / 3 2005-09-09 (Type 5366/100)

  • Page 236: Themis Board (Plugged Into The Devil Board)

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.4 / 4 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 237: Power Supply

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.4 / 5 2005-09-09 (Type 5366/100)

  • Page 238: Front Panel

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 3.4 / 6 Drystar 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 239: Rear Panel

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 Drystar 5302 Chapter 3.4 / 7 2005-09-09 (Type 5366/100)
  • Page 240 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 241 04-2011 Replaced instructions by references to enclosure documents. DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 04-2011 printed in Germany Document Node ID: 32917123...
  • Page 242 To verify the latest version of single documents and of Service Manuals refer to the Document Type ‘Order List’ in the Agfa HealthCare Library. DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.5 / 2...
  • Page 243 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 05-2009 printed in Germany Document Node ID: 27648461 eq_03-6_adjustments_e_template_v07 Agfa Company Confidential Copyright © 2009 Agfa HealthCare N.V.
  • Page 244 Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MEDNET GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.
  • Page 245 Basic Rules for the TH Cleaning Procedure ................34 Resistor Check........................35 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 3 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 246: Adjustments

    It can be performed at any film size. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 4 05-2009 Type 5366/100...
  • Page 247 Measure the left clear border width: Value: Value: via local display via Browser User Interface: Measure left white border Welcome to this 0.0 mm DryStar 5302 Measure right white border Service - Calibration 0.0 mm Horizontal alignment Left white border (mm) (mm)

  • Page 248: Calibrations

    Afssaps / EUREF calibration procedure. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 6 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 249: Film Calibration

    (default = ON)". Also the calibration frequency (Default = every 5 film packs) can be entered there. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 7 05-2009 Type 5366/100 Agfa Company Confidential...
  • Page 250 3.05 O.D. 2.88 O.D. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 8 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 251: Cdm (Internal Densitometer) Calibration

    Perform a density reproduction check. See 3.1. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 9 05-2009 Type 5366/100...
  • Page 252 Repair and Service DD+DIS150 .05E Adjustments and Calibrations Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Calibration Service - Calibration Internal Densitometer Calibration Film Calibration Select Densitometer Internal Densitometer Calibration Print Head Calibration Macbeth TR924...

  • Page 253: Print Head (Th) Calibration

    Follow the instructions on the WebPages. Refer to Figure 4. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 11 05-2009 Type 5366/100...
  • Page 254 Repair and Service DD+DIS150 .05E Adjustments and Calibrations Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Calibration Service - Calibration Thermal Printhead Calibration Film Calibration Select Densitometer Internal Densitometer Calibration Thermal Print Head Calibration...

  • Page 255: Smart Profile Calibration

    66 densities have to be measured and to be entered in the browser screen. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 13 05-2009 Type 5366/100...
  • Page 256 Workaround to avoid entering all data again: Press the “back button” in the browser. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 14 05-2009 Type 5366/100...
  • Page 257 Repair and Service DD+DIS150.05E Adjustments and Calibrations Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Calibration Service - Calibration Smart Profile Calibration Film Calibration Select Densitometer Internal Densitometer Calibration Print Head Calibration Macbeth TR924...
  • Page 258 The smart profile calibration is performed. Result DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 16 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 259: Compliance Film Calibration As Part Of Afssaps / Euref Calibration Procedure

    European Reference Organisation for Quality Assured Breast Screening and Diagnostic Services 1) The compliance film calibration is only Prerequiste available for DRYSTAR 5302 software ≥ 2.0.0_C1. 2) A “TG18-PQC modified 4” image has to be available on the modality. The Test Pattern can be downloaded from http://www.euref.org/.
  • Page 260 60 to 120 min. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 18 05-2009 Type 5366/100 Agfa Company Confidential...
  • Page 261 Repair and Service DD+DIS150.05E Adjustments and Calibrations Overview of the Afssaps / EUREF calibration procedure: DRYSTAR 5302 calibration procedure for Afssaps/EUREF Check calibration of densitometer. Details see section 2.5.1. Perform densitometer Densitometer calibration acc. to densitometer calibration ok? manufacturer instructions.

  • Page 262: Checking The Densitometer Calibration

    (EB+72010270 or commercially available) is required. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 20 05-2009 Type 5366/100...

  • Page 263: Resetting The Compliance Film Calibration, Internal Densitometer Calibration And Thermal Print Head Calibration

    2.3 Print Head (TH) Calibration DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 21 05-2009 Type 5366/100 Agfa Company Confidential...
  • Page 264 (4) Select “Accept changes”. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 22 05-2009 Type 5366/100 Agfa Company Confidential...
  • Page 265 Repair and Service DD+DIS150 .05E Adjustments and Calibrations Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Calibration Service - Calibration Internal Densitometer Calibration Film Calibration Select Densitometer Internal Densitometer Calibration Print Head Calibration Macbeth TR924...
  • Page 266 (5) Repeat the print head calibration, if films of width 10” and 14” are available. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 24 05-2009 Type 5366/100...
  • Page 267 Repair and Service DD+DIS150.05E Adjustments and Calibrations Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Calibration Service - Calibration Thermal Printhead Calibration Film Calibration Select Densitometer Internal Densitometer Calibration Thermal Print Head Calibration Macbeth TR924...

  • Page 268: Performing A Density Reproduction Check

    Reproduction is ok or not. In case it is not ok you are requested to carry out a CDM calibration. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 26 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 269: Performing The Afssaps / Euref Calibration Check

    (2) Connect the printer network cable to the network outlet at the wall. (3) Consult the “connectivity release document” for the modality connection to DRYSTAR 5302 for the proper modality configuration to print the “TG18-PQC modified 4” test image. (4) Print the “TG18-PQC modified 4” test image from the modality.

  • Page 270: Performing A Compliance Film Calibration

    Workaround to avoid entering all data again: Press the “back button” in the browser. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 28 05-2009 Type 5366/100...
  • Page 271 ≥ 10%, start the complete procedure from scratch. Refer to section 2.5. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 29 05-2009 Type 5366/100...
  • Page 272 Reset values Figure 18 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 30 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 273: Checks

    Excel file. See Figure 19. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 31 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 274: Check For Dust Stripes / Tph Cleaning Procedure

    Check the films for dust stripes as described in the flowchart of Figure 20. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 32 05-2009 Type 5366/100 Agfa Company Confidential...
  • Page 275 536736mm.cdr Figure 20 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 33 05-2009 Type 5366/100 Agfa Company Confidential...

  • Page 276: Basic Rules For The Th Cleaning Procedure

    DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 34 05-2009 Type 5366/100...

  • Page 277: Resistor Check

    Figure 22: Print Head resistor check test film DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.6 / 35 05-2009 Type 5366/100...
  • Page 278 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 279 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 06-2009 printed in Germany Document Node ID: 27681930 eq_03-7_menus-setting_e_template_v07 Agfa Company Confidential Copyright © 2009 Agfa HealthCare N.V.
  • Page 280 Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MEDNET GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.
  • Page 281 KEY-OPERATOR BROWSER PAGES ..................7 SERVICE BROWSER PAGES ....................11 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 3 06-2009 5366/100 Agfa Company Confidential...

  • Page 282: Printer Controls

    Section Constant Error status Troubleshooting DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 4 06-2009 5366/100 Agfa Company Confidential...

  • Page 283: Controls At The Local Keypad

    Press and hold down an arrow key to scroll quickly through a list or a menu. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 5 06-2009 5366/100 Agfa Company Confidential...

  • Page 284: Key-Operator Menu Via Local Keypad

    Figure 1: Tree structure of the key-operator menu at the local keypad DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 6 06-2009 5366/100...

  • Page 285: Key-Operator Browser

    Repair and Service DD+DIS150.05E Software Menus, Settings Key-Operator Browser Pages This section displays the key-operator browser pages. Welcome to this DryStar 5302 printer Prompt Enter Password Operator tools drystar Key-operator tools ****** Service engineer tools Cancel Specialist tools Security Tools...
  • Page 286 Repair and Service DD+DIS150.05E Software Menus, Settings Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Key-Operator - Show settings Key-Operator - Change settings General General Input tray Input tray See page 9. Network (DICOM) Network (DICOM)
  • Page 287 Repair and Service DD+DIS150 .05E Software Menus, Settings Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Key-Operator - Change input tray settings Key-Operator - Change general settings Date: 2004 Oct. Upper input tray Time: Normal Film view...
  • Page 288 Repair and Service DD+DIS150 .05E Software Menus, Settings Welcome to this 2.4.1 Welcome to this DryStar 5302 printer DryStar 5302 printer Key-Operator - Change Image quality settings Key-Operator - Print image 1. Ktbwd2n.zip Default film calibration 2. smpte_kan.zip 3. smpte_l300.zip 4.

  • Page 289: Service Browser

    Repair and Service DD+DIS150.05E Software Menus, Settings Service Browser Pages This section displays the service browser pages. Welcome to this DryStar 5302 printer Operator tools Prompt Enter Password Key-operator tools mega Service engineer tools ****** Specialist tools Cancel Security Tools...
  • Page 290 Repair and Service DD+DIS150.05E Software Menus, Settings INFO COUNTER drystar 5302 LIST OF ERRORS 1. Site and system info: MODULE : devilmodule ------------------------ Elabel : Yes Date: 18-Nov-2007 Time: 12:42:15 HC207000 : devilmodule.dsh.connected *TypeDefect 1.1 Device info: *Context207000 ---------------- *ActionSeeManual...
  • Page 291 Figure 8: Service tool details (part 2) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 13 06-2009 5366/100 Agfa Company Confidential...
  • Page 292 Figure 9: Service tool details (part 3) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 14 06-2009 5366/100 Agfa Company Confidential...
  • Page 293 Figure 10: Service tool details (part 4) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 15 06-2009 5366/100 Agfa Company Confidential...
  • Page 294 Figure 11: Service tool details (part 5) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 16 06-2009 5366/100 Agfa Company Confidential...
  • Page 295 Figure 12: Service tool details (part 6) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 17 06-2009 5366/100 Agfa Company Confidential...
  • Page 296 The Printer Front End receives printjobs from a network (DICOM LPD) or any proprietary interface ERROR PSCodec PSCodec (de)codes postscript/pdf files ERROR FontRI ERROR Mfx is an Agfa communication protocol to interchange printer status messages MfxPrinterInfoHandler ERROR Raster ERROR OverlayOpImage OverlayOpImage implements the operation to put an overlay above the source image.
  • Page 297 The red marked areas in Figure 14 represent the different modules listed in the left navigation pane. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.7 / 19 06-2009 5366/100 Agfa Company Confidential...
  • Page 298 Repair and Service DD+DIS150.05E Software Menus, Settings Welcome to this DryStar 5302 printer Operator tools Prompt Enter Password Key-operator tools mega Service engineer tools ****** Specialist tools Cancel Security Tools HELP Welcome to this DryStar 5302 printer Welcome to this...
  • Page 299 Repair and Service DD+DIS150 .05E Software Menus, Settings Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Restore configuration Service - Save configuration General General Network only Network only Go back Go back Welcome to this...
  • Page 300 Repair and Service DD+DIS150.05E Software Menus, Settings Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Change general settings Service - Change network settings (dicom) Date: Oct. 2004 Network settings Time: Remove modality Add modality...
  • Page 301 Repair and Service DD+DIS150.05E Software Menus, Settings Welcome to this Welcome to this DryStar 5302 printer DryStar 5302 printer Service - Installation Service - Installation Before install. New Software Installation please make backup Printer Installation Wizard Install Site Data OK, make backup...
  • Page 302 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 303 Referenced Documents Document Title DD+DIS037.11E DRYSTAR 5302 SB20, Software 2.1.0_C3 available to solve Warning Message “RF Tag Problem“: Update of affected Printers required DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.
  • Page 304 Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MedNet GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.
  • Page 305 SOFTWARE RELEASE 2.1.0_C2 ..................21 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 3 Agfa Company Confidential 03-2011 Type 5366/100...
  • Page 306 New Feature of Software 2.1.0_C3 ..................22 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 4 Agfa Company Confidential 03-2011...

  • Page 307: Software Release 1.8.0_C1

    Only Microsoft Internet Explorer 5.5 or higher is usable as browser application. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 5 Agfa Company Confidential 03-2011...

  • Page 308: Known Problems

    *O.D. = Optical Density Software fault Cause DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 6 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 309: New Feature

    Table 1: Languages for Operator and Key-Operator Screens DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 7 Agfa Company Confidential 03-2011...

  • Page 310: Software Release 1.8.1_C1

    DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 8 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 311: Software Release 1.9.0_C2

    As of software 1.9.0_C2 the key-operator screens are available in English language only. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 9 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 312: Software Release 1.9.0_C3

    It does not contain bugfixes of problems that may occur in the field. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 10 Agfa Company Confidential 03-2011...

  • Page 313: Software Release 1.9.0_C4

     On MedNet, GSO Library always the latest available software release can be downloaded. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 11 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 314: Solved Software Bugs

    Software fault in software 1.9.0_C3 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 12 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 315: Software Release 1.9.1_C1

    The force for driving the film towards the thermal head is sporadically too low. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 13 Agfa Company Confidential 03-2011...
  • Page 316 Example for film calibration film see Figure 2. Figure 2 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 14 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 317: Software Release 1.9.2_C1

    CPU Driver problem Cause DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 15 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 318: New Feature

    ≥ 1.9.2_C1 already accepts ISO RF tags. Figure 3 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 3.8 / 16 Agfa Company Confidential 03-2011 Type 5366/100...

  • Page 319: Software Release 2.0.0_C2

    New Features Software 2.0.0_C2 contains following new features:  Software supports both printers, DRYSTAR 5302 and DRYSTAR AXYS.  Support of 14 bit contrast resolution (instead of 12 bit)  Improved RF-tag locking mechanism (identical to RF-tag locking mechanism of DRYSTAR 550X software 6.0)

  • Page 320: Solved Bug In Software 2.0.0_C2

    CPU Driver problem Cause Solution Install software 2.0.0_C2 to prevent the problem. NOTE: For DRYSTAR 5302 software patch 1.9.2_C1 solved already most cases of the problems. Symptom 2 Infocounter data and E-Label data sporadically do not match. E-Label and Infocounter synchronization problem Cause Install software 2.0.0_C2.

  • Page 321: Known Software Issue

    Repair and Service DD+DIS150.05E Software Releases and Patches Symptom 3 Some DRYSTAR 5302 printers sporadically print films partially only, especially with high workload: The rest of the film is gray. Data underrun due to a software problem Cause Install software 2.0.0_C2.

  • Page 322: Software Release 2.0.0_C3

    Compared to software 2.0.0_C2 the RF tag locking mechanism is further improved. This supports a reliable detection of falsely inserted films. NOTE: Software 2.1.0_C2 supports DRYSTAR 5302 and DRYSTAR AXYS. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled.

  • Page 323: Software Release 2.1.0_C2

    Prerequisites None * SNs of additional DRYSTAR 5302 printers with SW 2.1.0_C2 ex factory: 11538, 12095, 12099, 12102, 12103, 12105, 12108, 12111, 12113, 12118, 12122, 12125, 12126, 12128, 12132, 12136, 12139, 12144, 12149, 12151, 12152, 12156, 12158, 12161, 12163, 12164, 12167, 12168, 12169, 12170, 12178, 12181,...
  • Page 324 This is a solution for the warning message “RF Tag Problem” after 10 printed films of a new film pack. For details see DRYSTAR AXYS SB 15 / DRYSTAR 5302 SB 20, Software 2.1.0_C3 available to solve Warning Message “RF Tag Problem“ after 10 printed Films of a new Film Pack, DD+DIS037.11E...
  • Page 325 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 08/2008 printed in Germany Document Node ID: 26032589 eq_03-9_faq_e_template_v05 Agfa Company Confidential Copyright © 2008 Agfa HealthCare N.V.
  • Page 326 FAQ - Frequently Asked Questions intentionally left blank DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 3.9 / 2 08/2008 Type 5366/100 Agfa Company Confidential...
  • Page 327 RAM) and new Type of Hard Disk (SATA) introduced DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 03-2011 printed in Germany...
  • Page 328 To verify the latest version of single documents and of Service Manuals refer to the Document Type ‘Order List’ in the Agfa HealthCare library. DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302...
  • Page 329 List of Components ........................7 WIRING DIAGRAMS ........................9 DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 4 / 3...
  • Page 330 536604aa_1.cdr RF2 in Upper Tray Figure 1 DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 4 / 4...
  • Page 331 SN 3177, SN 3180, SN 3494 to SN 3537, SN 3539, SN 3574, SN 3672 Figure 2 DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 4 / 5...
  • Page 332 ≥ 12610 536604aa_2.cdr Figure 3 DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 4 / 6 03-2011 Type 5366/100...
  • Page 333 RF tag reader upper tray Figure 1 DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 4 / 7...
  • Page 334 Figure 2 Vacuum valve upper magazine Figure 2 DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302 Chapter 4 / 8...

  • Page 335: Wiring Diagrams

    Wiring Diagram Upper Pickup Assembly (Diagram 8/9) Wiring Diagram Upper Tray Assembly (Diagram 9/9) DOCUMENT CONTROL NOTE: The controlled version of this document resides on the Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 1 DRYSTAR 5302...
  • Page 336 03-2011 Edition 1, Revision 1 Document Node ID: 19886546...
  • Page 337 & 7+(50$/ +($' $66< $ 1$,6 $*; $ 1$,6 $*; 26+ $ 0DWVXVKLWD 0DWVXVKLWD 6HQVRU6 ((6;3 2YHUKHDW ;6D;6 6HQVRU6 &$%/(' +($7(5 )2,/ (/( VHQVRU ;6D;6 '(93 ;6D;6 '(93 %8(, '(93 %8(, 6 6 ;6D ;6E ,QSXW VHQVRU 73+ ,QSXW VHQVRU 73+ PP LVRODWLRQ FOHDU PP LVRODWLRQ FOHDU 7KHUPDO 3ULQW +HDG...
  • Page 338 & /DVW 00 &LUFXLW ;6;6;6 ;6;6;6 %802'8B,, 6702'8B,, )LUVW &LUFXLW ;6 ;6D ;6;6 66 000 '(93 66 6666 000 '(93 ;6;6;6 '(93 666666 ;6;6;6 '(93 666666 ;6;6;6 '(93 666666 ;6;6;6 $ 3,&.83 &$%/( '(93 666666 %802'8B,, 6702'8B,, /RZHUB38,)( '(93 ,)(  ,)(  :,5,1*B',$*5$03 /RZHUB38,)( '(93 ,)(  ,)( ...
  • Page 339 & ((6;3 6HQVRU6 66 ;6;6;6 ;6;6;6 ;6;6;6 %8(, /RZHU PDJD]LQH HPSW\ GHWHFWLRQ ;6 ;6D ;6;6 5) 5) 5)67 666 '(93 ;6;6;6 666 '(93 :,5,1*B',$*5$02 ;6;6;6 666 '(93 ;6;6;6 5)5)67 '(93 <( 5) ;6;6;6 5)5)67 '(93 ;6;6;6 5)5)67 '(93 670260' <( <( $ %8...
  • Page 340 & RXWSXW 26+ ;6E;6 ;6E;6 ;6E;6 %8(, RXWSXW 2XWSXW VHQVRU 73+ ((6;3 ;6E;6 ;6E;6 ;6E;6 %8(, 2XWSXW UROOHUV KRPH SRVLWLRQ RXWSXW &DEOHG PRWRU 9'& RXWSXW &DEOHG PRWRU 9'& ;6E ;6D ;6E;6 6 '(93 ;6E;6 ;6E;6 6 '(93 ;6E;6 67(, 6 '(93 67(, 6...
  • Page 341 & RXWSXW 26+ ;6E;6 ;6E;6 ;6E;6 %8(, RXWSXW 2XWSXW VHQVRU 73+ ((6;3 ;6E;6 ;6E;6 ;6E;6 %8(, 2XWSXW UROOHUV KRPH SRVLWLRQ RXWSXW &DEOHG PRWRU 9'& RXWSXW &DEOHG PRWRU 9'& ;6E ;6D ;6E;6 6 '(93 ;6E;6 ;6E;6 6 '(93 ;6E;6 67(, 6 '(93 67(, 6...
  • Page 342 & ;6E ;6 '(93 :,5,1*B',$*5$03 '(93 %80,1,),7-5 9DFXXP SXPS 9DFXXP SXPS ;6D ;6E ;6 ;6 0UG '(93 0EN '(93 9 '(93 :,5,1*B',$*5$03 9 '(93 *< 9 '(93 9 '(93 670,1,),7-5 %80,1,),7-5 $ 3803 9$/9(6 $66< &$%/( /RZHU PDJD]LQH YDFXXP YDOYH /RZHU PDJD]LQH YDFXXP YDOYH 8SSHU PDJD]LQH YDFXXP YDOYH 8SSHU PDJD]LQH YDFXXP YDOYH...
  • Page 343 & /DVW &LUFXLW %80 00 ;6;6;6 ;6;6;6 %802'8B,, )LUVW &LUFXLW 6702'8B,, ;6 ;6D ;6;6 000 '(93 66 %866 6666 000 '(93 ;6;6;6 '(93 666666 ;6;6;6 '(93 666666 ;6;6;6 '(93 666666 $ 3,&.83 &$%/( ;6;6;6 666666 '(93 %802'8B,, 6702'8B,, 8SSHUB38,)( '(93 :,5,1*B',$*5$03 8SSHUB38,)( '(93...
  • Page 344 & ((6;3 6HQVRU6 66 ;6;6;6 ;6;6;6 ;6;6;6 %8(, 8SSHU PDJD]LQH HPSW\ GHWHFWLRQ ;6 ;6D ;6;6 $ $ 666 '(93 :,5,1*B',$*5$02 666 '(93 5) 5) 5)67 666 '(93 ;6;6;6 5)5)67 '(93 :,5,1*B',$*5$02 ;6;6;6 5)5)67 '(93 ;6;6;6 5)5)67 '(93 <( <( <( 5) ;6;6;6 5)5)67...
  • Page 345 Use, dissemination, distribution or reproduction of this document by unauthorized personnel is not permitted and may be unlawful. DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Document Node ID: 16880214...
  • Page 346 To verify the latest version of single documents and of Service Manuals refer to the Document Type ‘Order List’ in the Agfa HealthCare Library. DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302...
  • Page 347 If your equipment contains removable batteries or accumulators please dispose of these separately according to local regulations. DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302...
  • Page 348 ENTRAÎNEMENT / MODULE DE PUISSANCE PAGES 12 - 15 5366_chap05_index_m.CDR DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 4...
  • Page 349 DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 5...
  • Page 350 (MOD 10) (MOD 02) 5366_chap05_01_m.CDR COVERS DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 6 09-2011 Type 5366/100...

  • Page 351: Dd+Dis050.05M

    99 = Spare Part is not shown in Exploded Views. RF+: Refurbished Spare Parts COVERS DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 7...

  • Page 352: Drive

    (MOD 13) (MOD 14) 5366_chap05_02_m.CDR DRIVE DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 8 09-2011 Type 5366/100...

  • Page 353: Document Control Note

    99 = Spare Part is not shown in Exploded Views. RF+: Refurbished Spare Parts DRIVE DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 9...
  • Page 354 (MOD 17) (MOD 07) 5366_chap05_03_m.CDR DRIVE LEFT DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 10 09-2011...
  • Page 355 99 = Spare Part is not shown in Exploded Views. RF+: Refurbished Spare Parts DRIVE LEFT DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 11...
  • Page 356 5366_chap05_04_m.CDR DRIVE / POWER UNIT - UP TO SN12609 DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 12...
  • Page 357 RF+: Refurbished Spare Parts DRIVE / POWER UNIT - UP TO SN12609 DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302...
  • Page 358 5366_chap05_05_m.CDR DRIVE / POWER UNIT - FROM SN12610 DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 14...
  • Page 359 RF+: Refurbished Spare Parts DRIVE / POWER UNIT - FROM SN12610 DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 15...

  • Page 360: Power Unit

    Gear Box Belt 5366_chap05_05_m.CDR POWER UNIT DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 16 09-2011...
  • Page 361 99 = Spare Part is not shown in Exploded Views. RF+: Refurbished Spare Parts POWER UNIT DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 17...
  • Page 362 Spare Part Kit CM+053660100733 Drystar 5302 Sortiment M DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 18...
  • Page 363 Order Number Accessory MOBILE KIT EX2DV DOCUMENT CONTROL NOTE: The controlled version of this document resides on Agfa HealthCare Library. Any printed copy of this document is uncontrolled. Edition 1, Revision 3 Drystar 5302 Chapter 5 / 19 09-2011 Type 5366/100...
  • Page 364 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 365 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 05-2008 printed in Germany Document Node ID: 13939365 eq_08_modifications_e_template_v07 Agfa Company Confidential Copyright © 2008 Agfa HealthCare N.V.
  • Page 366 Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MEDNET GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.
  • Page 367 Upper Tray Module CM+349267.0 and Lower Tray Module 349266.0 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 3 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 368 SB No. 03, DD+DIS403.05E DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 4 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 369 Troubleshooting Guide DD+DIS211.07E Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 5 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 370 Number(s) Referenced None Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 6 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 371 Number(s) None Referenced Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 7 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 372 • Troubleshooting Guide DD+DIS211.07E DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 8 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 373 Part Power Supply Module (RoHS) CM+349278.1 Number(s) Referenced None Document(s) Changed Gear Box Module (MOD14) CM+349269.2 in combination with DRYSTAR 5302 software patch 1.8.1_C1 Reason Improvement of film run SN ≥ 2175 / October 2006 Product(s) & Serial Number(s) Part Gear box module CM+349269.3...
  • Page 374 Number(s) Referenced None Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 10 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 375 Number(s) Referenced None Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 11 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 376 SB No. 06, DD+DIS064.07E Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 12 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 377 Number(s) Referenced None Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 13 Agfa Company Confidential 05-2008 Type 5366/100...

  • Page 378: Spare Parts

    Number(s) Referenced None Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 14 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 379 Number(s) Referenced None Document(s) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 15 Agfa Company Confidential 05-2008 Type 5366/100...
  • Page 380 Upper Pickup Modification Kit” Enclosure DD+DIS399.07E DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 DRYSTAR 5302 Chapter 8 / 16 Agfa Company Confidential 05-2008...
  • Page 381 Maintenance EALTH Global Services Organisation Order-No.: DD+DIS149.05E *1YZO5L1* DRYSTAR 5302 Type 5366/100 1 Piece YZO5L MA1 Edition 1, Revision 0 The Maintenance document is separately available. Order No: DD+DIS149.05E Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document.
  • Page 382 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential (Type 5366/100)
  • Page 383 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / I 2005-09-09 (Type 5366/100)
  • Page 384 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / II DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 385: Safety

    ⇒ The DRYSTAR 5302 is suitable for continuous operation. ⇒ The DRYSTAR 5302 enables or helps in the diagnosis of a patient. When operating or maintaining the DRYSTAR 5302 always observe the following safety guidelines: • Have electrical or mechanical defects repaired by skilled personnel only! •...
  • Page 386 Agfa recommends to have DRYSTAR film waste hauled away by a licensed company. After its life span, do not dispose of the DRYSTAR 5302 without consideration of local waste disposal regulations. Please consult your local service organization.

  • Page 387: Introduction

    • Gretag D200-2 Flash light commercially available Loop 8x CM+9.9579.9904.0 Service PC with Drystar 5302 Density For Service PC specifications refer to Reproduction Check files chapter 3.2, Tools. Density reproduction check files are available via MEDNET, GSO Library Waterproof pen...

  • Page 388: Required Cleaning Material

    Case of Exchange/ Usage Air Filter CM+343350.X Exchange each maintenance Always have the latest Drystar 5302 software patches available on the Service PC. Depending of the urgency and classification of a software patch it might be necessary to update the printer software.

  • Page 389: Diagnostics

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / 5 2005-09-09 (Type 5366/100)

  • Page 390: Infocounter Analysis

    Maintenance DD+DIS149.05E Welcome to this DryStar 5302 printer SERVICE TOOLS HOME General information List of errors Printer Infocounters report DICOM, LPD and HIPAA report QA Report Page Software versions Remote sessions Show printer status Enter key-operator command session Enter service command session...

  • Page 391: Infocounter Analysis Via Service Command Session

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / 7 2005-09-09 (Type 5366/100)
  • Page 392 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / 8 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 393: Image Quality Check

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / 9 2005-09-09 (Type 5366/100)

  • Page 394: Maintenance Points - Power Off

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / 10 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 395: Cleaning Of Electronics Compartment

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / 11 2005-09-09 (Type 5366/100)

  • Page 396: Cleaning Of Power Supply Air Inlet

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / 12 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 397: Cleaning Of Thermal Print Head

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / 13 2005-09-09 (Type 5366/100)

  • Page 398: Basic Protective Earth Test

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / 14 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 399: Electrical Check According To National Regulations

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / 15 2005-09-09 (Type 5366/100)

  • Page 400: Maintenance Points - Power On

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / 16 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 401: Film Calibration

    Ds5302 density reproduction check DT2C.xls These Excel files can be downloaded from MedNet, download area 'GSO library - Hardcopy - Dry Imagers - Drystar 5302 - Freeware'. Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document.
  • Page 402 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / 18 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 403: Test Image Evaluation

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 9 / 19 2005-09-09 (Type 5366/100)

  • Page 404: Host System Image Quality Check

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 9 / 20 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 405: Customer Conversation

    (3) Select 'y' for yes at each desired 'Reset Item' (4) Select "Accept Changes". Refer to Figure 21 (5) When leaving the Service menu select "Preventive maintenance" as service action. Welcome to this DryStar 5302 printer Service - Service actions Reset Item Factory Active...
  • Page 406 AGFA and the Agfa-Rhombus are trademarks of Agfa-Gevaert AG, Germany Herausgegeben von / Published by / Edité par / Agfa-Gevaert AG Fototechnik Tegernseer Landstraße 161 D - 81539 München Printed in Germany / Imprimé en Allemagne Agfa Company Confidential...
  • Page 407 Maintenance EALTH Global Services Organisation Checklist Order-No.: DD+DIS149.05E DRYSTAR 5302 Type 5366/100 Work Instruction for order no. Film cycles The maintenance has to be carried out: Every 12 months or 25 000 printed films Maintenance must be carried out according to the maintenance instructions DD+DIS149.05E.
  • Page 408 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Maintenence Checklist Page 2 / 4 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...

  • Page 409: Check Of Safety Switches

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Maintenence Checklist Page 3 / 4 2005-09-09...
  • Page 410 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Maintenence Checklist Page 4 / 4 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 411 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 Document Node ID: 23532484 03-2008 printed in Germany service_bulletin_cover_e_template_v01 Agfa Company Confidential Copyright © 2008 Agfa HealthCare N.V.
  • Page 412 Service Bulletins intentionally left blank DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 0 Drystar 5302 Chapter 10 / 2 Agfa Company Confidential 03-2008 Type 5366/0100...
  • Page 413 Use, dissemination, distribution or reproduction of this document by unauthorized personnel is not permitted and may be unlawful. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. 12-2007 printed in Germany Document Node ID: 15602908 eq_11_install-planning_e_template_v04 Agfa Company Confidential Copyright © 2007 Agfa HealthCare N.V.
  • Page 414 Improper operation or service activities may cause damage or injuries. INSTRUCTION: Read the "Generic Safety Directions" document (see MEDNET GSO => General Info => Agfa HealthCare => Publications => Service Manual) prior to attempting any operation, repair or maintenance task on the equipment.
  • Page 415 Referenced Documents Document Title n.a. n.a. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 3 12-2007 5366/100 Agfa Company Confidential...
  • Page 416 Sound emission data ......................24 Interface data ..........................24 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 4 12-2007 5366/100 Agfa Company Confidential...
  • Page 417 SAFETY STANDARDS AND REGULATIONS ...............26 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 5 12-2007 5366/100 Agfa Company Confidential...

  • Page 418: Installation Planning Checklist

    Page installation conditions are fulfilled. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 6 12-2007 5366/100 Agfa Company Confidential...

  • Page 419: System Overview

    Figure 1 Device Comment Modality The modality has to support the DICOM print protocol DRYSTAR 5302 Dry printer for 14x17", 14x14", 14x11", 10x12", 8x10" DT2 blue base or clear base films NOTE: Remark to an installation in a 'HIPAA conform environment':...

  • Page 420: Scope Of Delivery And Accessories

    ABC Code EQOZV Scope of delivery • 1 Basic DRYSTAR 5302 including: - 2 input trays adjustable for all film sizes - 1 output tray • 1 Compact Flash card (stored in backup CF card slot in input tray) • 2 power cables, 3 m long (Europe / US) •...

  • Page 421: Options

    In general it is possible to diagnose and repair the printer to a certain extent remotely. To enable remote service of the printer remote access has first to be organized. Remote Access is established via the Agfa own Secure Remote Service System (SRSS).

  • Page 422: Machine Dimensions

    536611jp.cdr Figure 4 Figure 5 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 10 12-2007 5366/100 Agfa Company Confidential...

  • Page 423: Minimum Free Space For Operation And Maintenance

    90 kg (198 lb) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 11 12-2007 5366/100 Agfa Company Confidential...

  • Page 424: System Integration

    DICOM Version 3.0; FTP, Telnet, HTTP, SNMP, SMTP Image formats DICOM DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 12 12-2007 5366/100 Agfa Company Confidential...
  • Page 425 CT images shall be printed with linear taste LUT. Problem: The workstation at the PACS system has one AE title only. The DRYSTAR 5302 does not recognize, for which type of modality (CR or CT) the user wants to print.

  • Page 426: Modality Setup Parameters

    Modality type ................Modality AE_title ................DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 14 12-2007 5366/100 Agfa Company Confidential...
  • Page 427 Not all modalities that are tested for Drystar 4500 (M)/5500/5300 are also tested for Drystar 5302. As the controller part for all printers is identical, except behaviour regarding film sizes and output tray, modalities that are tested for Drystar 4500 (M)/5500/5300 can also be connected to Drystar 5302.

  • Page 428: Setup Of Security And Privacy (Optional)

    Network password: min. 4 characters, max 10 characters User name Password DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 16 12-2007 5366/100 Agfa Company Confidential...
  • Page 429 Network password: min. 4 characters, max 10 characters Specialist name Password DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 17 12-2007 5366/100 Agfa Company Confidential...

  • Page 430: Service Host Parameters

    NOTE: • Agfa devices which are according to the HIPAA specifications have Agfa certificates already loaded. • All certificates issued by Agfa have a validity period of 10 years Service Host Parameters NOTE: The AGFATEK LINK Service Host is optional in the network.

  • Page 431: Example For System Integration

    Printer AE Title: Domain name: Figure 8 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 19 12-2007 5366/100 Agfa Company Confidential...

  • Page 432: Ambient Conditions

    Relative humidity during transport: max.: DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 20 12-2007 5366/100 Agfa Company Confidential...

  • Page 433: Electrical Connections

    DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 21 12-2007 5366/100 Agfa Company Confidential...

  • Page 434: Electrical Connections At The Printer

    536611JM.cdr Figure 10 Specifications Type overview Printer Type DRYSTAR 5302 5366/100 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 22...

  • Page 435: Functional Data

    9.2.1 Pixel Matrices The DRYSTAR 5302 has two film supply trays that can be configured to 14x17", 14x14", 14x11", 10x14" or 8x10" film size. If trim is used around the images (trim is a small, white frame around each image on the film), the diagnostic area is 6 pixels smaller at each edge of the film.

  • Page 436: Electrical Data

    Module exchange concept Remote/preventive service capable DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 24 12-2007 5366/100 Agfa Company Confidential...
  • Page 437 Printer with packing incl. palette (kg / lb) DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 DRYSTAR 5302 Chapter 11 / 25 12-2007 5366/100...
  • Page 438 GB9254-1998 (Class A) • GB17625.1-2003 The DRYSTAR 5302 carries the FCC ID: HPL5366, CE, TUV, cULus and CCC label. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2...
  • Page 439 INSTALLATION SITE EALTH READINESS CHECKLIST Imaging Services Name of Field Service Engineer: _________________ Checking date:____________ Client name: ___________________________________________________________ Client address: __________________________________________________________ __________________________________________________________ Contact person, name and title: ___________________________________________________________ Client phone number: ________________________ Extension:_________________ Type of systems: ___________________ Order /OGT number: _____________________ Item Refer to okay...
  • Page 440 Tegernseer Landstraße 161 D - 81539 München Germany AGFA and the Agfa-Rhombus are trademarks of Agfa HealthCare N.V. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Agfa Company Confidential...

  • Page 441: Glossary And Key Word Index

    Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 12 / I 2005-09-09 (Typ 5366/100)
  • Page 443 Glossary 2-Propanol (Isopropyl Alcohol used for cleaning purposes. alcohol) Agfa Diagnostic Center. A device developed by AGFA to scan X-ray exposed phosphor plates. AE-Title Application Entity Title. A DICOM capable device in the network is unambiguously identified by its IP address, hostname and AE-Title .
  • Page 444 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 12 / 2 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 445 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 12 / 3 2005-09-09 (Type 5366/100)
  • Page 446 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 12 / 4 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 447 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Edition 1, Revision 0 DRYSTAR 5302 Chapter 12 / 5 2005-09-09 (Type 5366/100)
  • Page 448 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 12 / 6 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 449 (= provider), makes printing of DICOM images possible. A device using DICOM PMS (= user) can control a DICOM printer. Drystar 5300 is a DICOM PMS provider. AGFA own operating system for medical Portex devices. Imperative programming language for the...
  • Page 450 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 12 / 8 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 451 Verband Deutscher Elektrotechniker. Association of German Electro-Technicians X-Terminal. An Agfa program for serial data communication between two computers. Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document.
  • Page 452 Printed copies of this document are not controlled. The reader should always refer to MedNet to ensure that they are working with the latest copy of the document. Chapter 12 / 10 DRYSTAR 5302 Edition 1, Revision 0 Agfa Company Confidential...
  • Page 454 This page is intentionally left blank to enable print out of even and odd pages on duplex printers.
  • Page 455 Version 1.1 06-2008 Added how to integrate the order list for documentation in a printed manual. See section 1. Edition 1, Revision 2 06-2008 printed in Germany Document Node ID: 16099429 Agfa Company Confidential Copyright © 2008 Agfa HealthCare N.V.
  • Page 456 It is recommended to print these pages separately on a DIN A3 or ANSI B (Ledger) printer. DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 Page 2 of 5 06-2008 Agfa Company Confidential...
  • Page 457 Figure 2: Print dialogue for printing single pages or chapters DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 Page 3 of 5 06-2008 Agfa Company Confidential...

  • Page 458: Adding Comments

    This allows adding comments, to highlight or underline text and many more text manipulations. Figure 4: Adobe Reader comments toolbar DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 Page 4 of 5 06-2008 Agfa Company Confidential...
  • Page 459 DOCUMENT CONTROL NOTE: The controlled version of this document resides on MedNet. Any printed copy of this document is uncontrolled. Edition 1, Revision 2 Page 5 of 5 06-2008 Agfa Company Confidential...

This manual is also suitable for:

Dd+dis150.05e

Table of Contents
