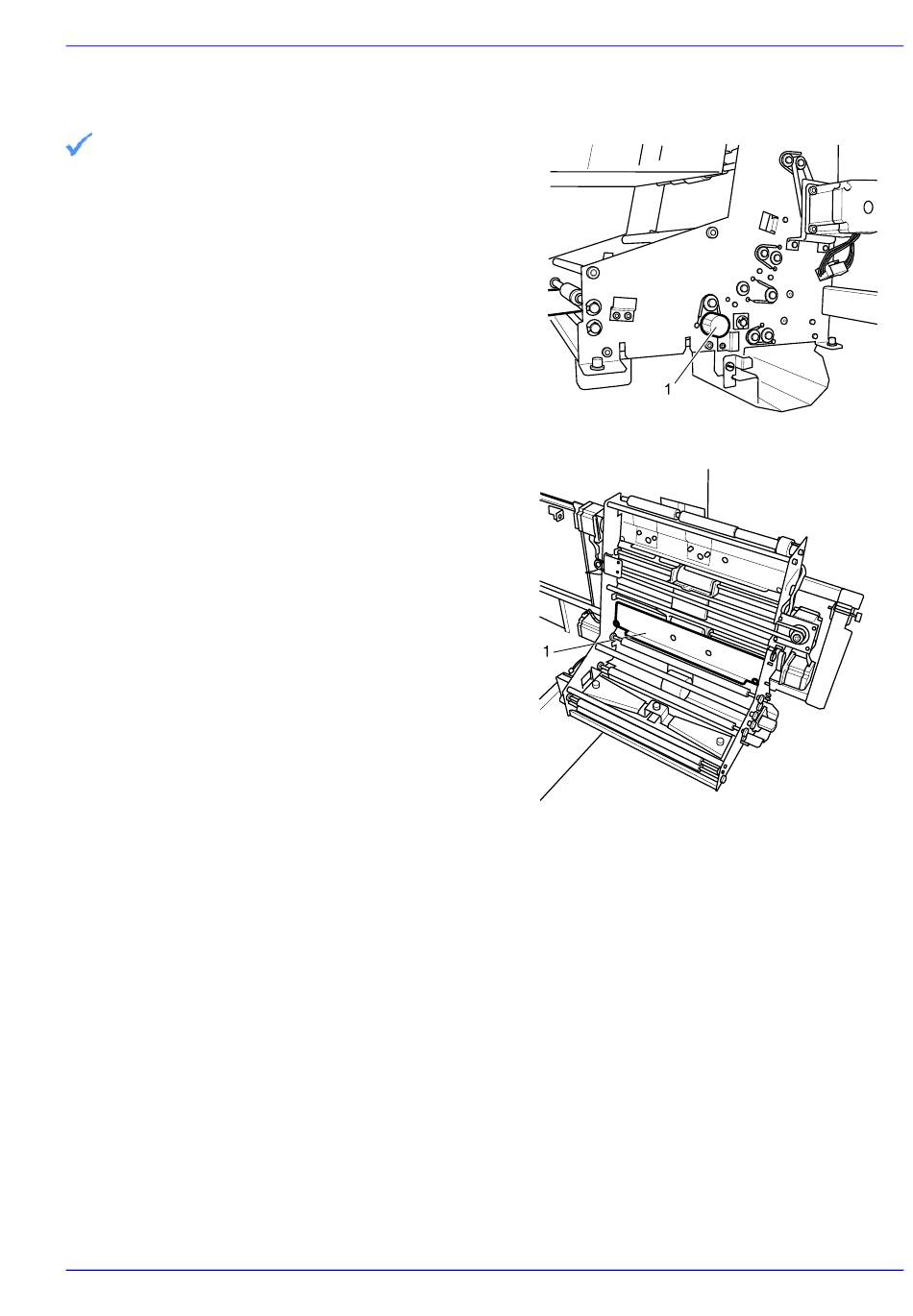

Paper Jam between the Transport Unit TU and the Lane Distributor LD

− Open the RH Printer door
− Open the locking (fastening screw) and pull
out the LD towards you
− Turn the handwheel (1) to advance the sheet
into the LD: at least 10 turns
− Remove the guide plate (1): Pull the 2 push
buttons to open them
− Remove the sheet
