Adf Angle Actuator Assembly Removal - Lexmark X850e Service Manual

7500-XXX

ADF angle actuator assembly removal

1.
Remove the ADF unit assembly. See
2.
Remove the scanner left cover. See
3.
Remove the scanner right cover. See
4.
Remove the scanner top rear cover. See
5.
Remove the large platen glass. See
6.

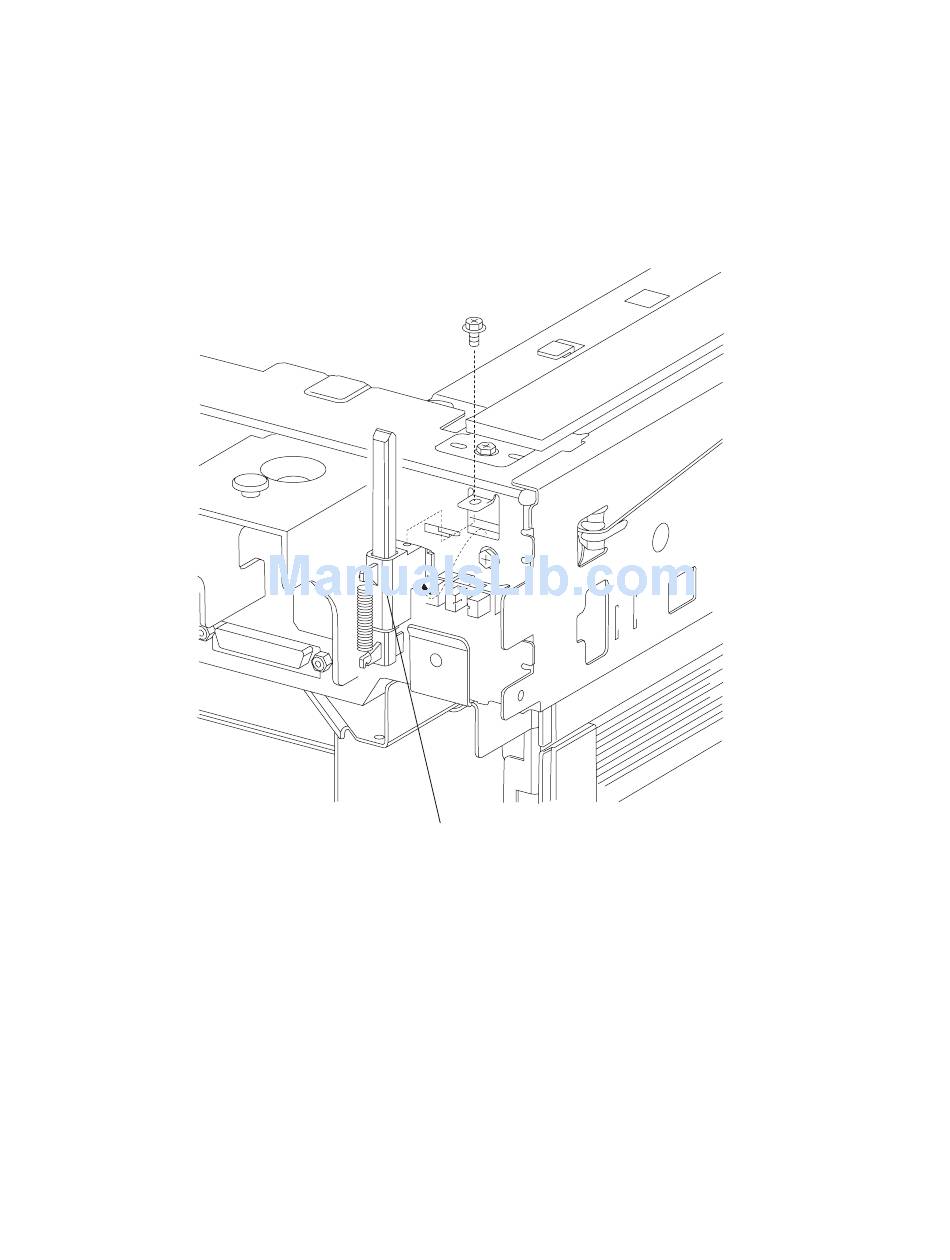

Remove the one screw securing the ADF angle actuator assembly (A) to the scanner unit assembly.
7.
Remove the ADF angle actuator assembly (A).
4-152
MFP Service Manual
"ADF unit assembly removal" on page
"Scanner left cover removal" on page
"Scanner right cover removal" on page
"Scanner top rear cover removal" on page
"Large platen glass removal" on page
A
4-159.
4-134.
4-135.
4-133.
4-142.
