Media Tray Lift Gear Group Removal - Lexmark X850e Service Manual

7500-XXX

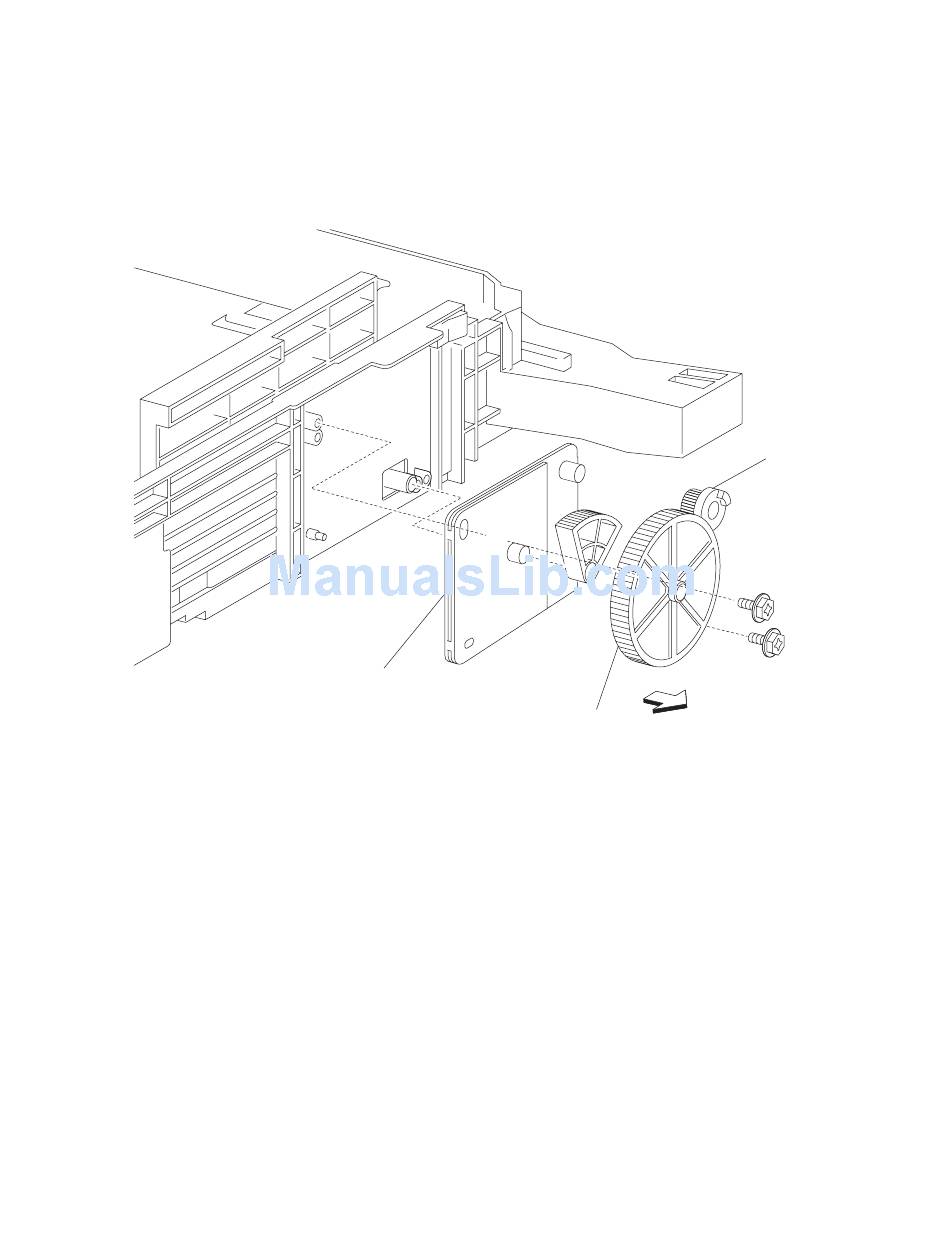

Media tray lift gear group removal

1.
Remove the media tray from the machine.
2.
Remove the two screws securing bracket (A).
3.
Remove the bracket (A).
4.
Remove the tray lift coupling gear 13 tooth (B) from bracket (A).
5.
Remove the tray lift gear 13/60 tooth (C) from bracket (A).
Note: Extra force is required to pull the tray lift coupling gear 13 tooth (B) and the tray lift gear 13/60 tooth (C)
from bracket (A).
4-32
MFP Service Manual
A
B
Rear
C
