urmet domus IPerCom 3.0.0 System Technical Manual For The Installer page 624

Alpha entry panel with 1060/48 installation

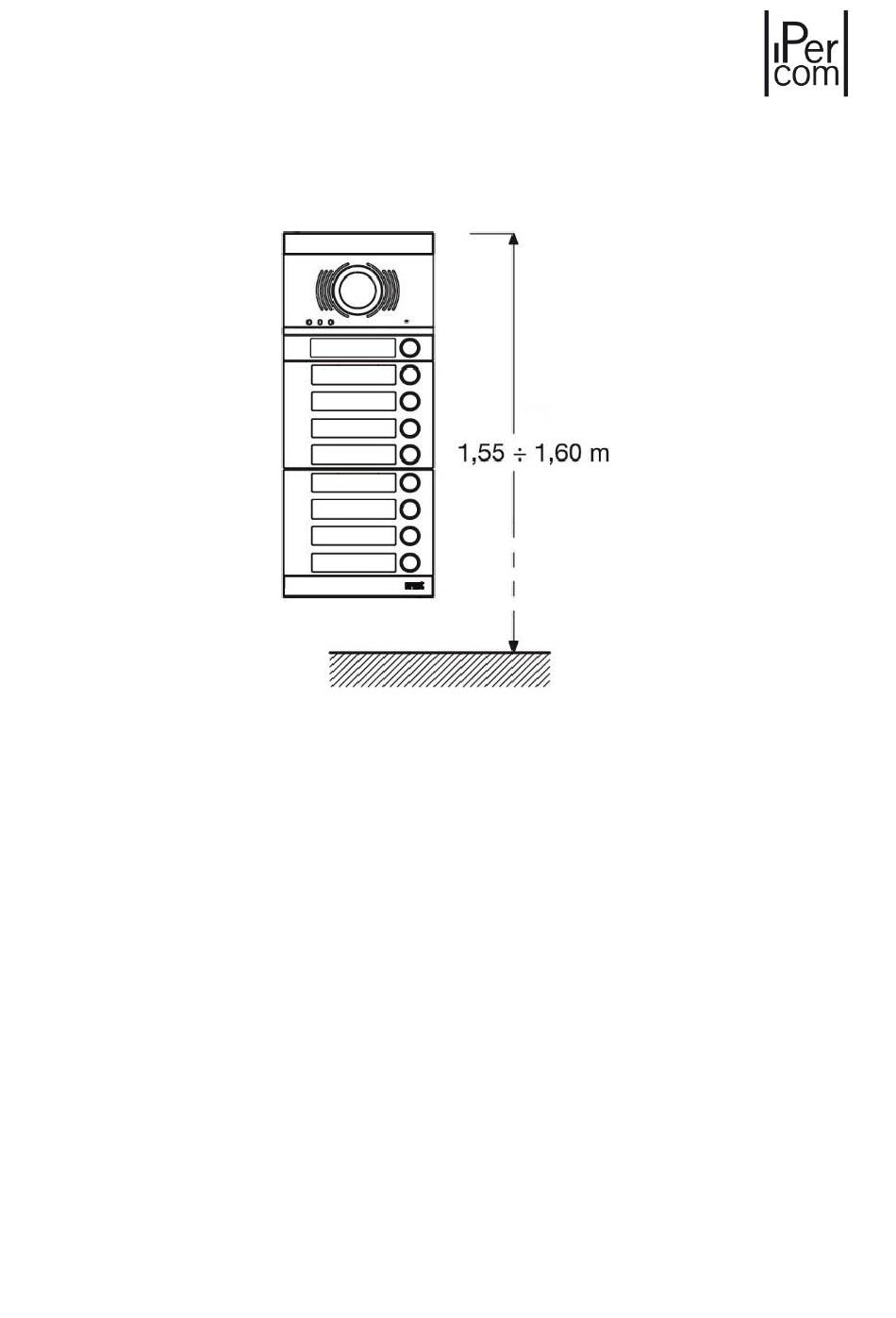

It is suggested to install the modules at the height shown below, according to the system to be realized.
However, for complex systems with several modules, for a correct installation consider the height shown in
the figure to fix the camera. If the system is a door phone, height refers to the door unit.
Flush-mounted version
•
Prepare the flush-mounting hole for the passages of the connecting wires.
•
Install the flush mounting box: it must not jut out of the wall.
624 MT124-032M
