The 4-button or 8-button modules can be used to expand the number of users on the panel. Up to 88
buttons can be connected (in addition to the two already present on the door unit), using up to 11 button
modules Ref. 1168/8.
Flush-mounted panel accessories
Flush-mounting boxes
For different versions of flush-mounting boxes for ALPHA range products are provided according to the
number of modules to be housed:
•
For 1 module
•
For 2 modules
•
For 3 modules
•
For 4 modules

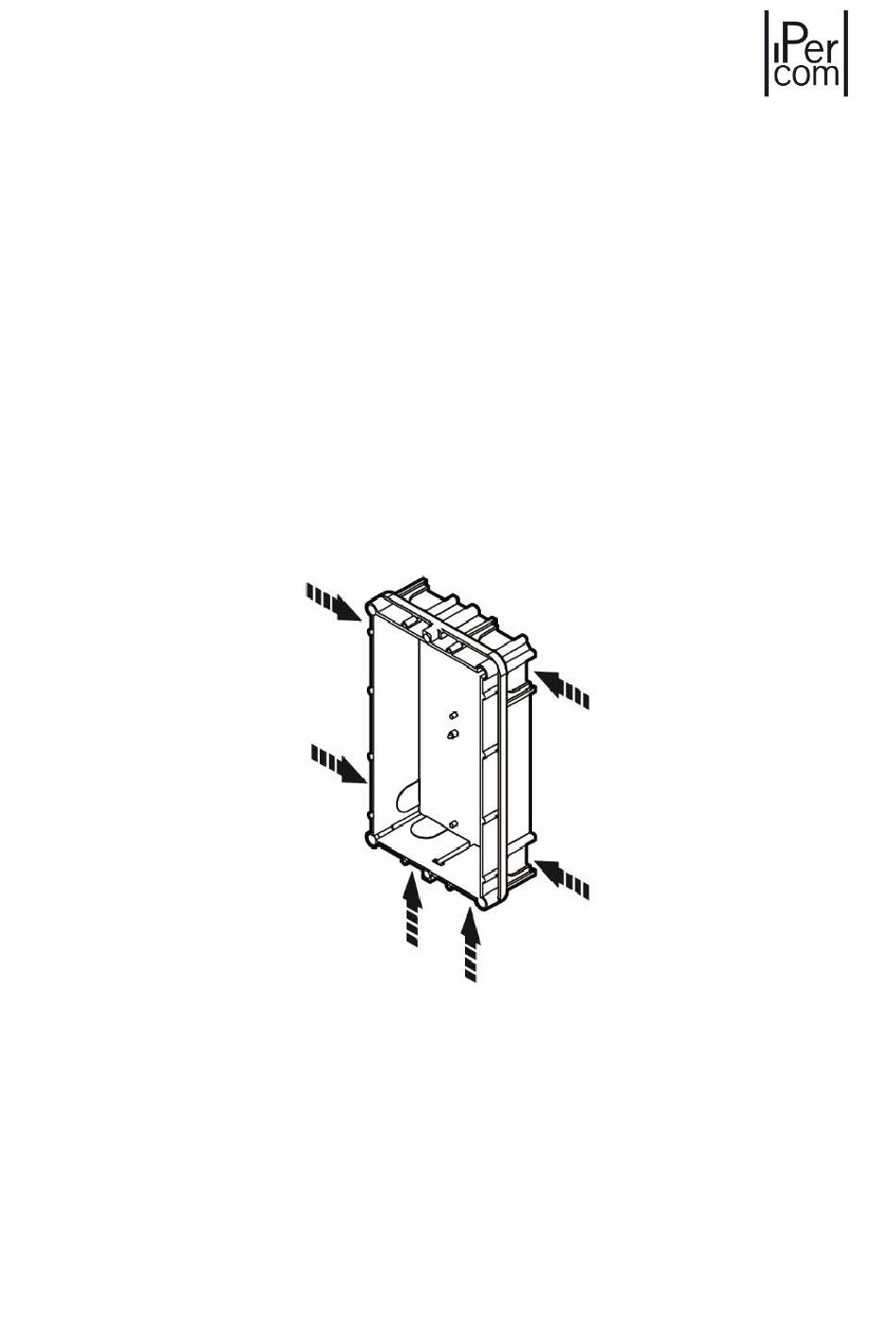

System wires lead into the boxes through the openings on the sides and bottom of the box. All openings are
shut by removable closures.
Joining flush-mounting boxes
Flush mounting boxes can be assembled with suitable spacers, also used as wire hole. Up to 3 4-module
flush-mounting boxes can be assembled (12 modules in total). If wall cover frames are used, instead, up to
3 3-module boxes (9 modules in total) can be assembly, joining them on the longer side. All spacers are
empty, to allow the passage of wires from a box to another one.
618
Sch. 1145/51
Sch. 1145/52
Sch. 1145/53
Sch. 1145/54
