urmet domus IPerCom 3.0.0 System Technical Manual For The Installer page 484

C 2
ASE
The misalignment is signalled by the configured video door phones already present on the system in the
same way as seen in the previous point. For example, if only one device is added that is not aligned and
present in the system configuration, the video intercoms already present in the system report the following
signal:
By pressing the "STATUS" button, only the newly added device is displayed (in the example a video door
phone):
484

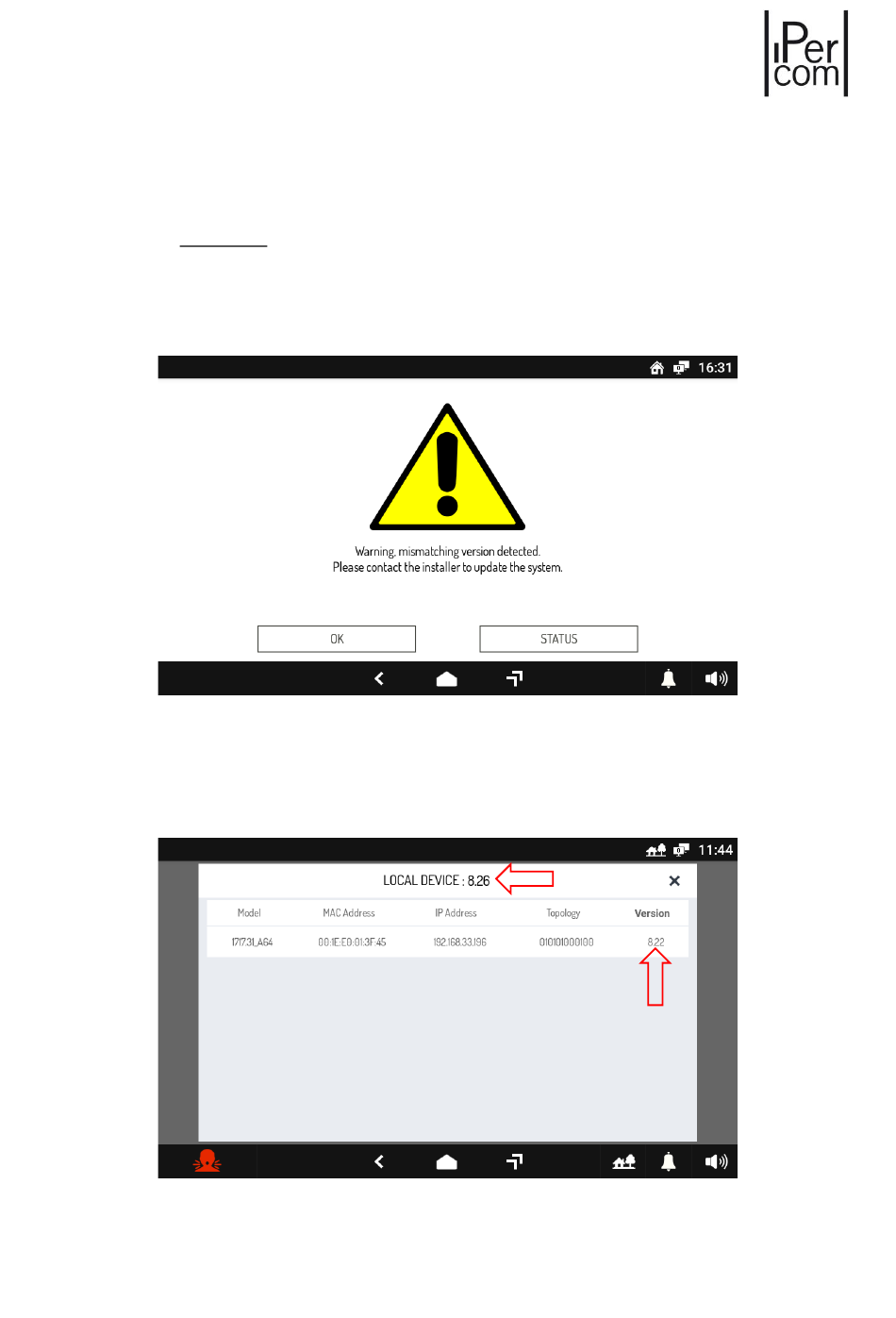

Figure 643: misalignment reporting on video door phone already present on the system
Figure 644: misalignment reporting on video door phone already present on the system
MT124-032M
