urmet domus IPerCom 3.0.0 System Technical Manual For The Installer page 478

Exporting to SD card creates a file with CCF extension, which can be opened by clicking on "Open" in the
"Project" tab of the configurator.

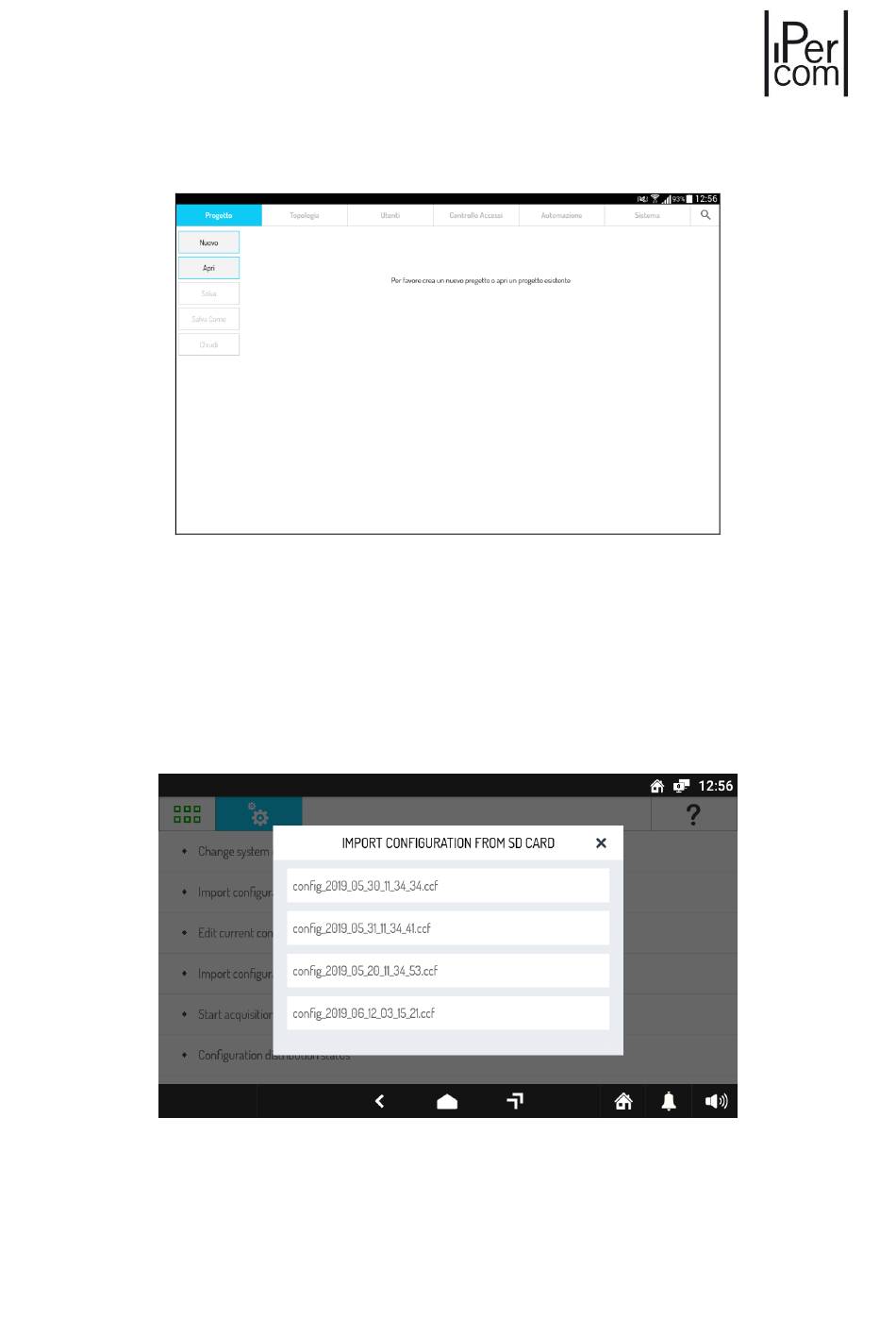

Figure 635: Opening a project from the configurator for MS Windows
Once the configuration changes have been made, in the "Project" tab, press the "Save" button to overwrite
the project file on the SD card.
7
The last step at this point consists in importing the modified configuration on a MAX, VOG or Basic video
door phone of the system; then select the configuration menu, and in the "System configuration" sub-menu
choose the option "Import configuration from SD card": the following screen will open:
Figure 636: Importing the configuration from SD Card
Once the installer password is entered, the imported configuration will be distributed throughout the
system.
478 MT124-032M
