The same screen as for the creation of activations with event on Entry panel 1060/71-74-75-78 opens,
where it is possible to set all the parameters necessary to create the activation rule:
The "'Event" drop-down menu allows selecting the event to be associated to one or more Relay Actuator
outputs. The possible events on Call Module are:
•
"Outgoing Call", i.e., call from the Call Module to the video door phone, Audio Door Phone or
Switchboard,
•
"Auto-on", i.e., connection from the video door phone on the camera of the Call Module,
•
"Sabotage alarm", which means attempted tampering with the Call Modules,
•
"Duress Alarm", i.e., an attempt to insert a forced key code on a Call Module (key code increased by 1),
•
"Code activation", i.e., entry on the Call Module of a numerical code between 4 and 8 digits (the
entry is made by entering "0" and "X" in sequence), as shown on the respective screen:
•
"User Recognition", i.e., passing a proximity key or door opener code associated with a resident or
non-resident;
•
"Door opening", activation of the relay associated with the pedestrian crossing;
•
"Gate opening", activation of the relay associated with the driveway.
252

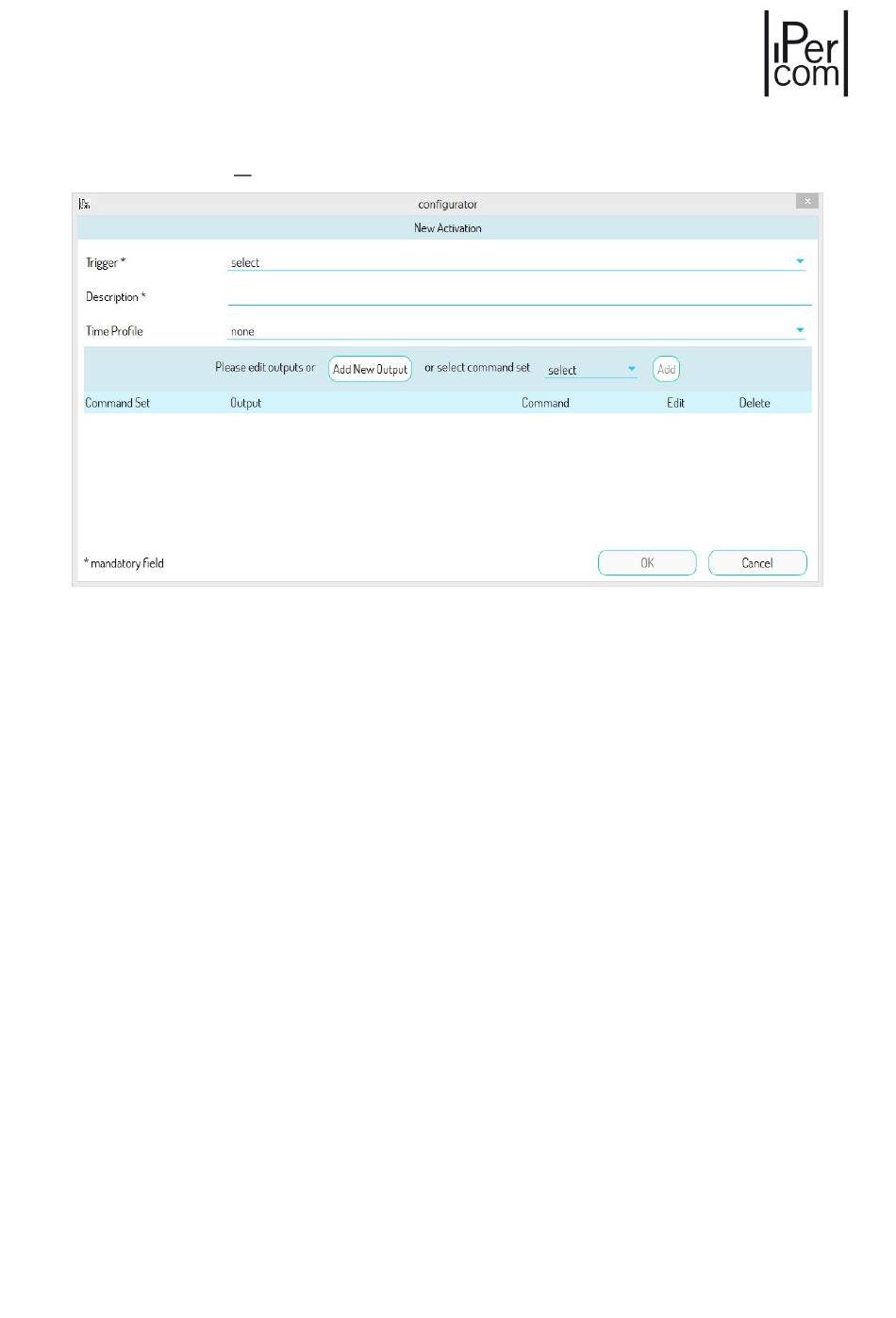

Figure 309: screen for creating an event activation
