L
OGIC ADDRESSING TYPE
In logic addressing, to call an apartment from Call Module or Modular Calling Station with 1060/48 or a
Switchboard, an alphanumeric code must be entered from the keypad. You can set this code in automatic
or manual mode (see
the "Settings" tab of the "Topology" tab appears as shown below:
As you can see, the "Logic Code" field is automatically filled in by the configurator. If, on the other hand,
you choose the manual mode, the numeric code must be filled in by the installer.
From the configurator it is possible to enter logic codes with a maximum of 8 alphanumeric characters.
To enter alphanumeric codes, the Modular Calling Station with 1060/48 must be equipped with an
alphabetic keyboard 1168/49.
370
Global Settings paragraph for further details). In the first case, for each apartment

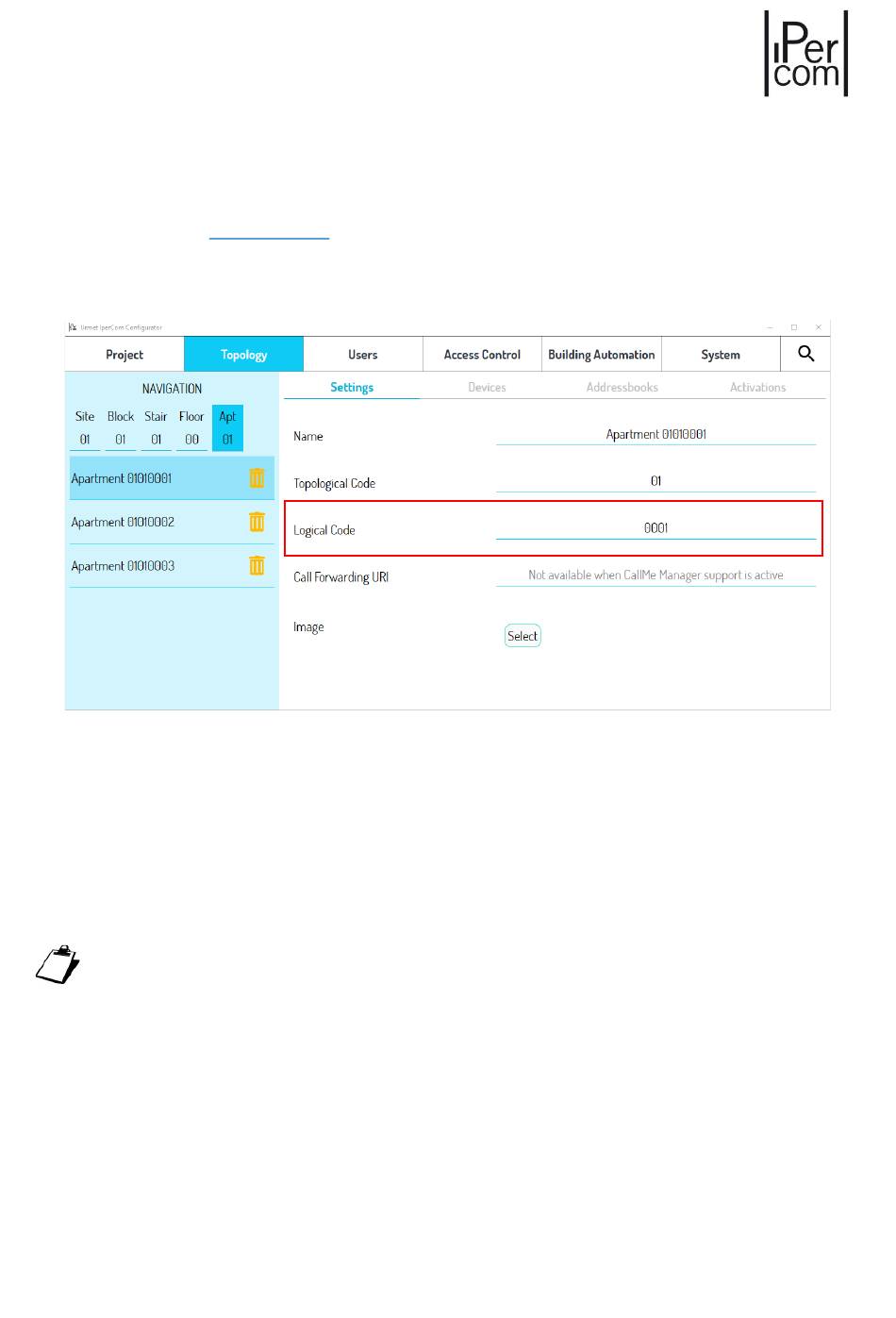

Figure 484: "Description" screen in case of logical addressing
