urmet domus IPerCom 3.0.0 System Technical Manual For The Installer page 285

After having given a meaningful name to the newly created rule and having pressed "OK", you have the
situation shown in the figure, where the name of the activation, the input and the respective event will
appear.
The buttons in the "Edit" and "Delete" columns can be used to modify or delete the newly created rule (via
confirmation pop-ups), respectively.
Once an output has been added to the rule, it is no longer re-submitted by navigating the topological
structure of the system to add more outputs.
The example shown above is just one example of how to build an activation. For example, you could also
use the two buttons on Relay Actuator 1 to activate the two outputs of the second Relay Actuator with
events other than short and long presses.
MT124-032M

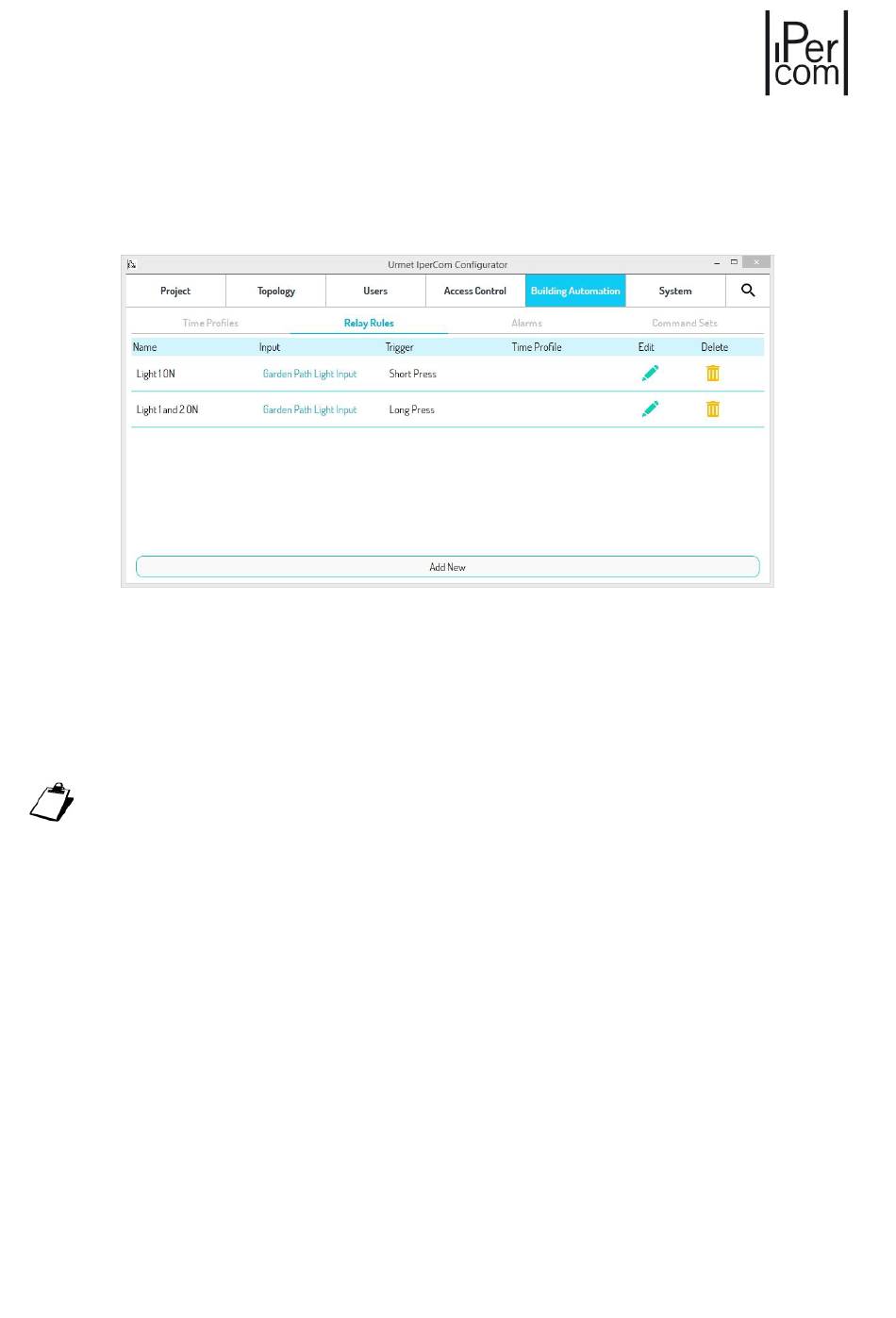

Figure 356: Summary of created activations
285
